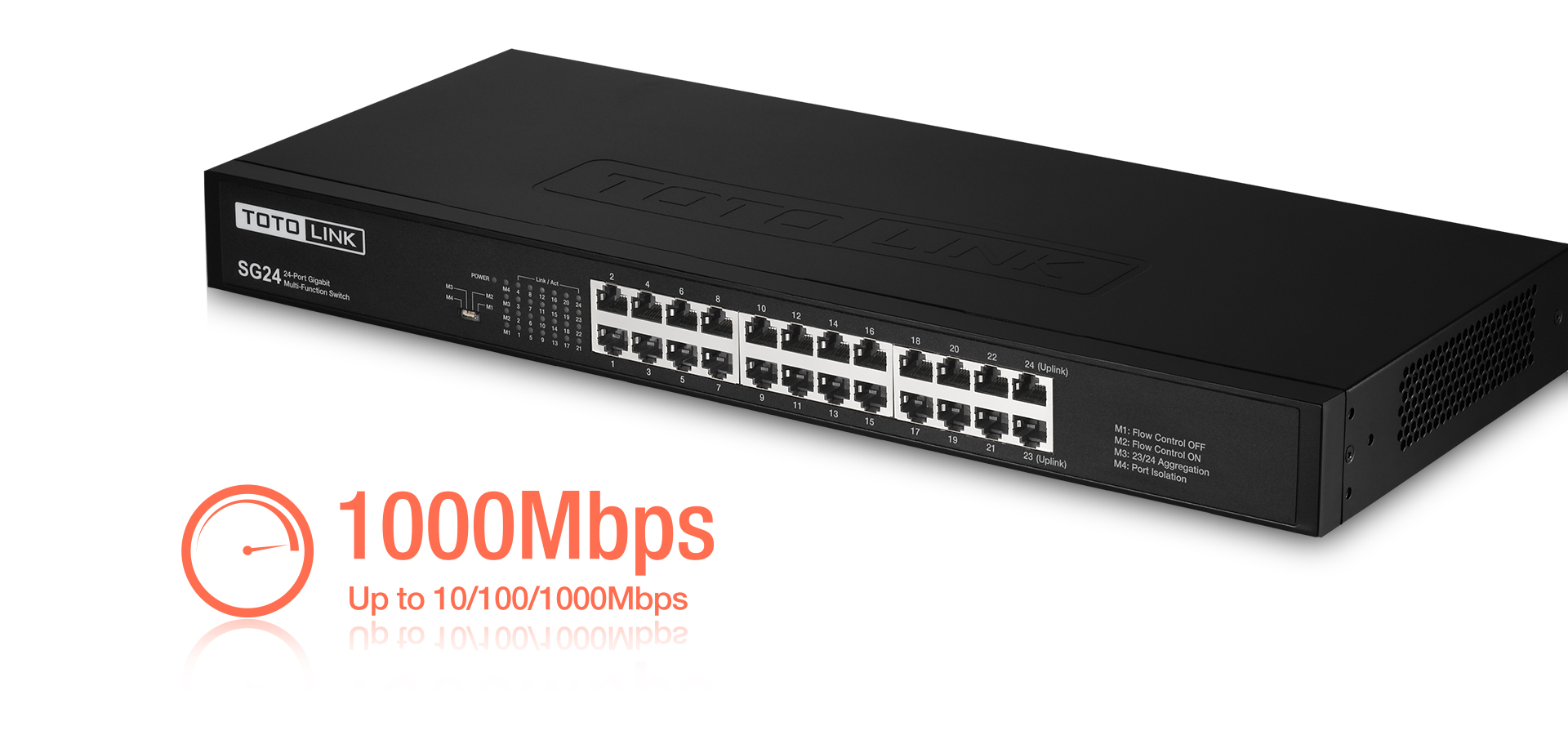

1000Mbps Transfer Speed
SG24 complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x standards, providing 24 10/10/1000Mbps auto-negotiation
RJ-45 ports to expand network capacity and enable instant large files transferring.

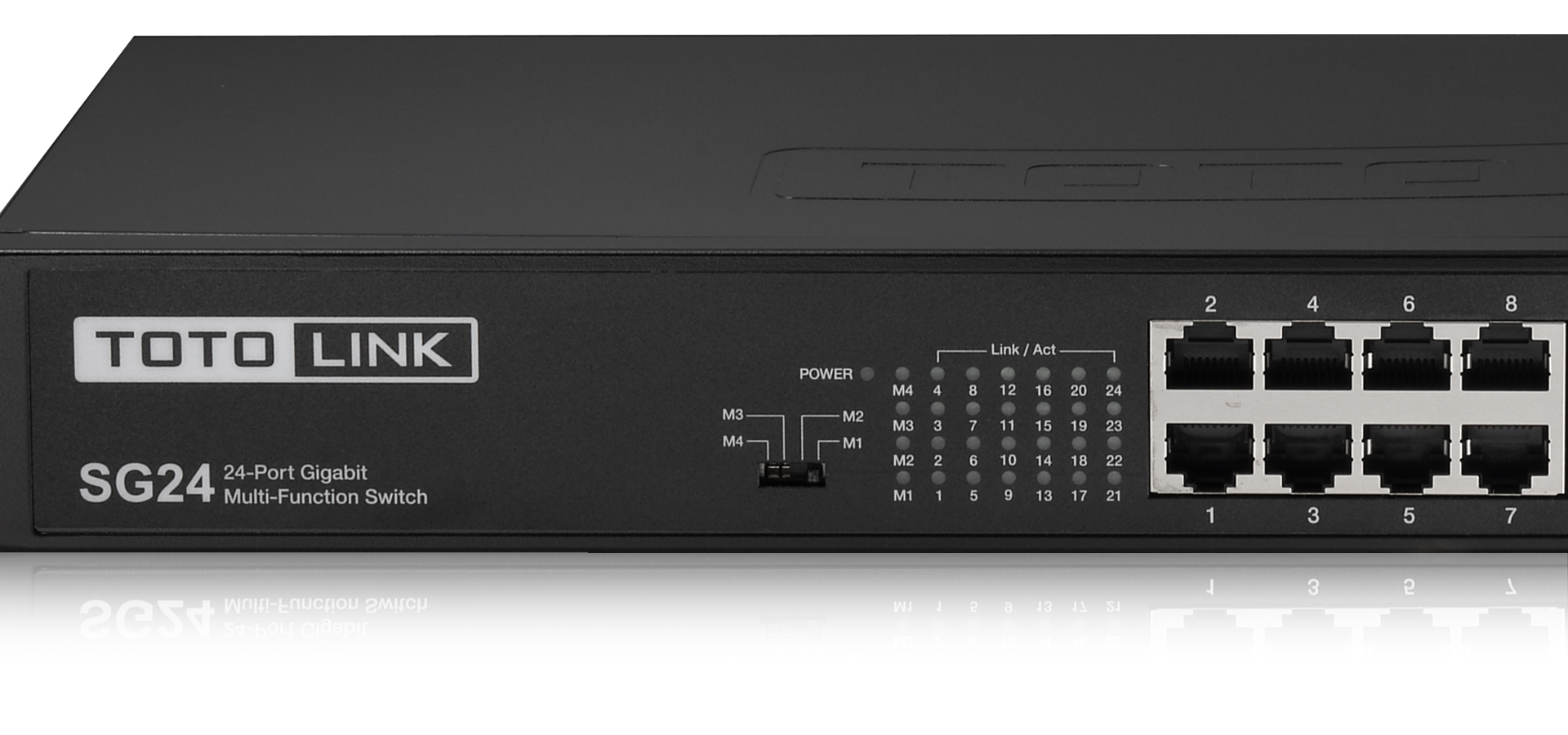

Four Working Modes
SG24 supports four working modes, among them M1 and M2 are used for flow control on/off,
M3 for 23/24 Ports Aggregation based on MAC sources, while the M4 is for Port Isolation,
a multi-functional switch for simple management.

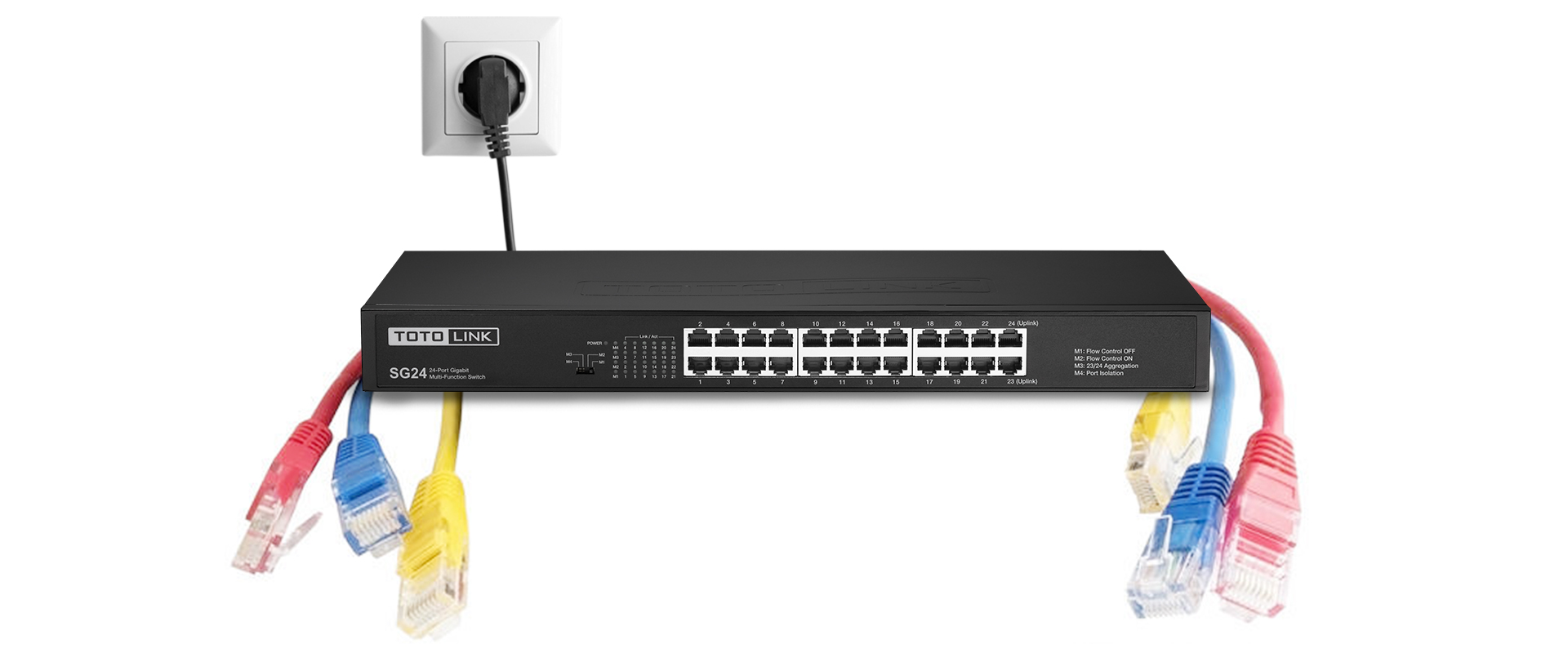

Plug and Play
All the 24 RJ45 ports on SG24 allow plug and play for easy use, no configuration required.
Also they could detect connected device and auto change to suitable speed.

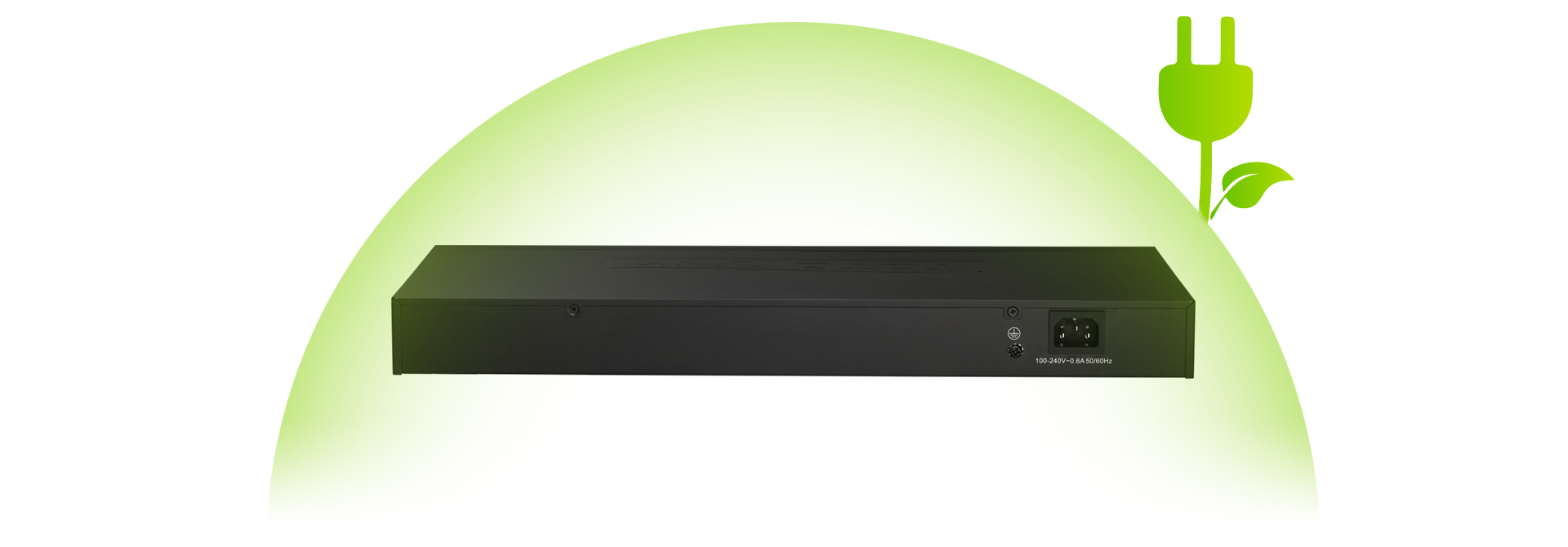

Environmentally Protection
SG24 can extensively expand your network with less power and provide a longer product life.
If no device connected, it will automatically power off ports to reduce power consumption.

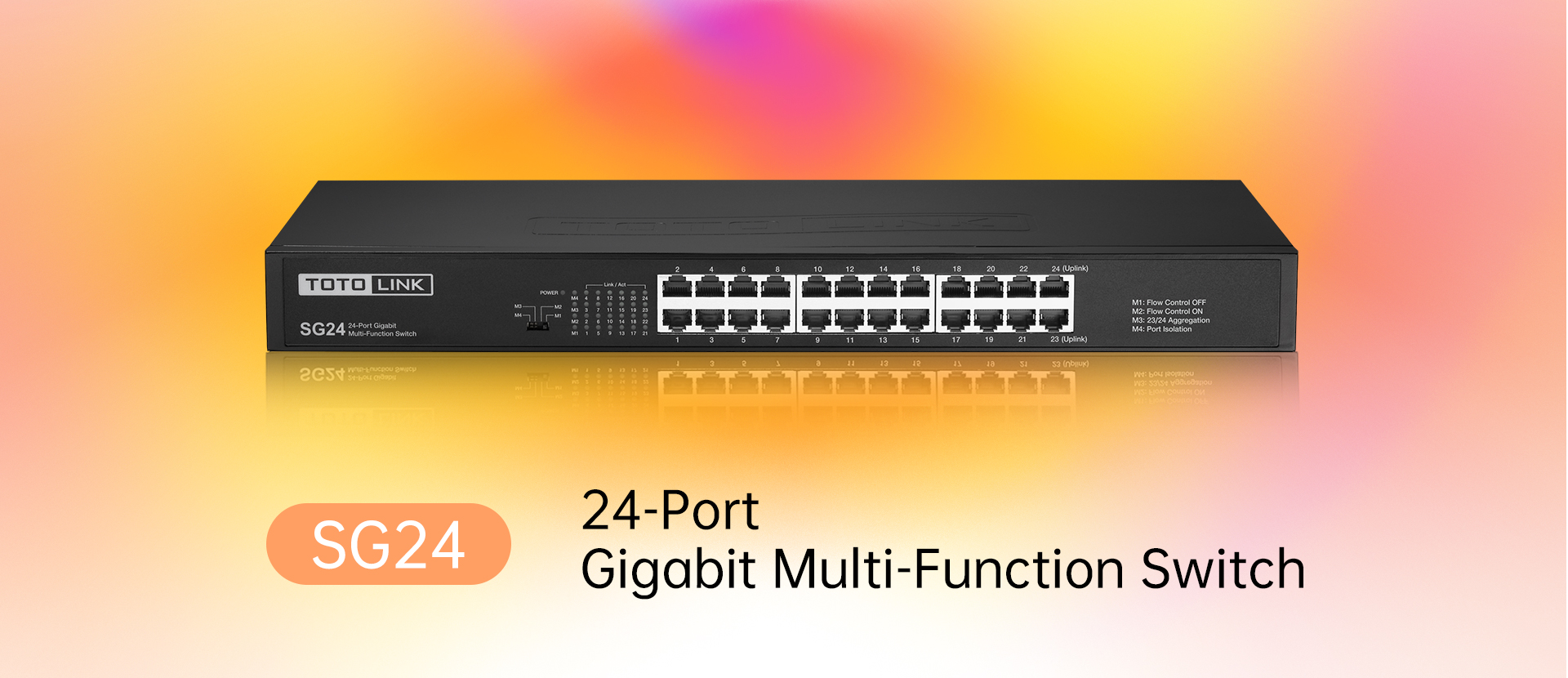

SG24 is a Gigabit Unmanaged Ethernet Switch that specially designed for applications like diskless system, network-clone etc.
With 24 Gigabit RJ-45 ports, SG24 allows large file transferring at high speed.
All ports supports wire-speed forwarding, auto MDI/MDIX and Auto Negotiation, no need to worry about cable type, simply plug and play.
Moreover, one slide switch is provided for four different working modes switching, making SG24 a high performance solution for your business network.
24 10/100/1000Mbps auto-negotiated RJ45 ports.
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
48Gbps Switching Capacity.
Auto-MDI/MDIX eliminates the need for crossover cables.
Store and forward Switching scheme.
MTBF≥5 years.
Plug and Play.
Four Working Modes.
Standard 19-inch rackmount steel case.
