SW24DM
Auto MDI/MDIX |
Auto MDI/MDIX function helps to figure out if the link needs a straight-through or cross-over connection automatically. No need to worry about cable type. |
Plug and Play |
No configuration required, simply plug and play for easy use. You’re allowed to add up to 24 devices using Ethernet cable to expand your wired network. |

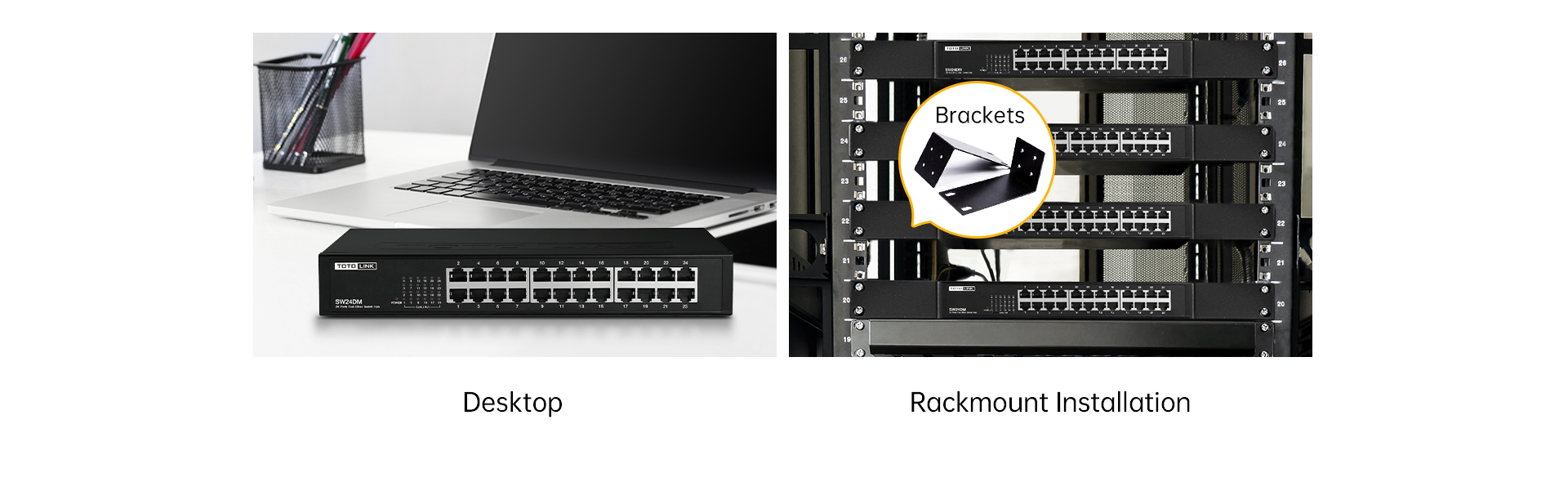

Desktop & Rackmount Installation |
Desktop/rackmount design not only space-saving and facilitates management, but also makes transportation and installation more convenient. |

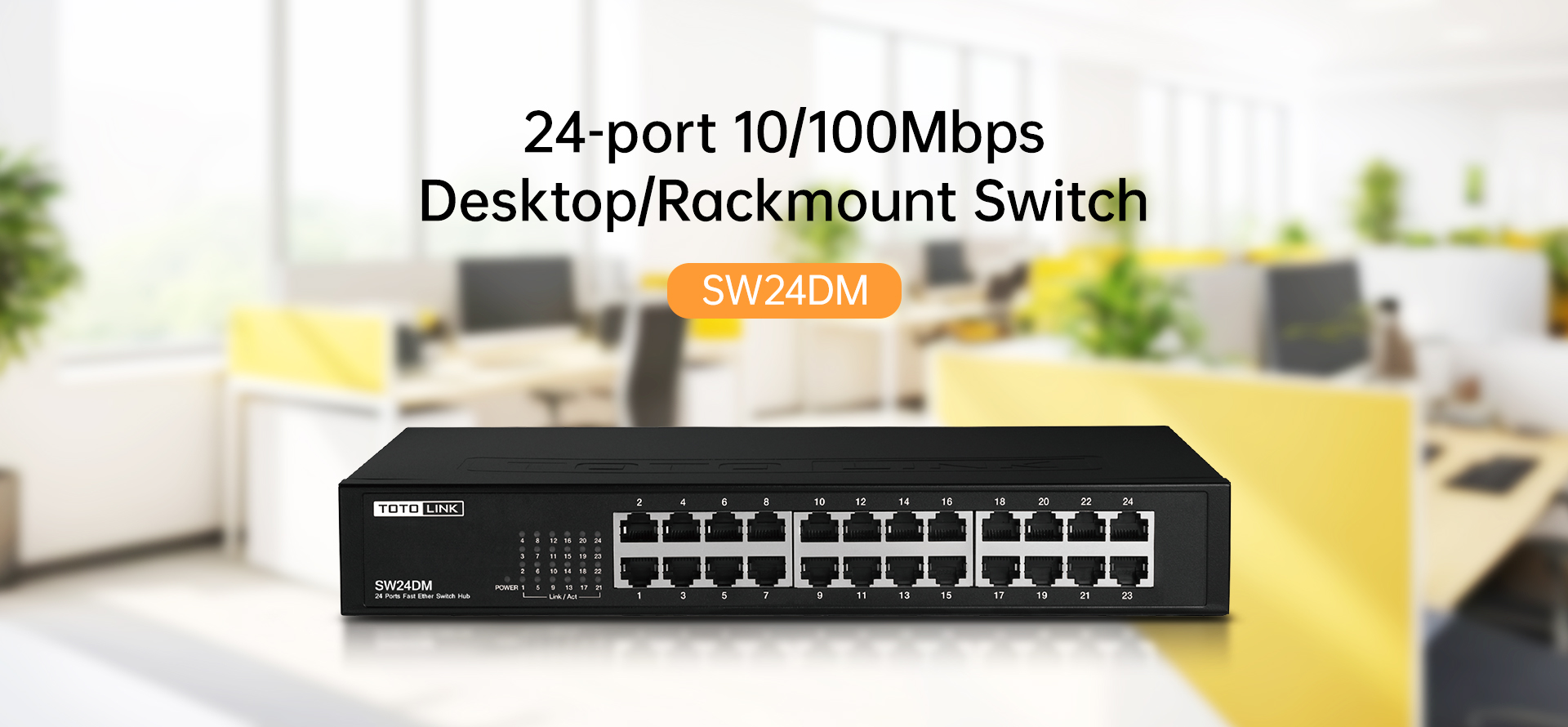

SW24DM is a Fast Ethernet Switch that designed for general home or small office use.
It provides 24 10/100Mbps ports and all ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play.
Moreover, it can also be simply plugged into a server, a hub or a switch using straight cable or crossover cable.

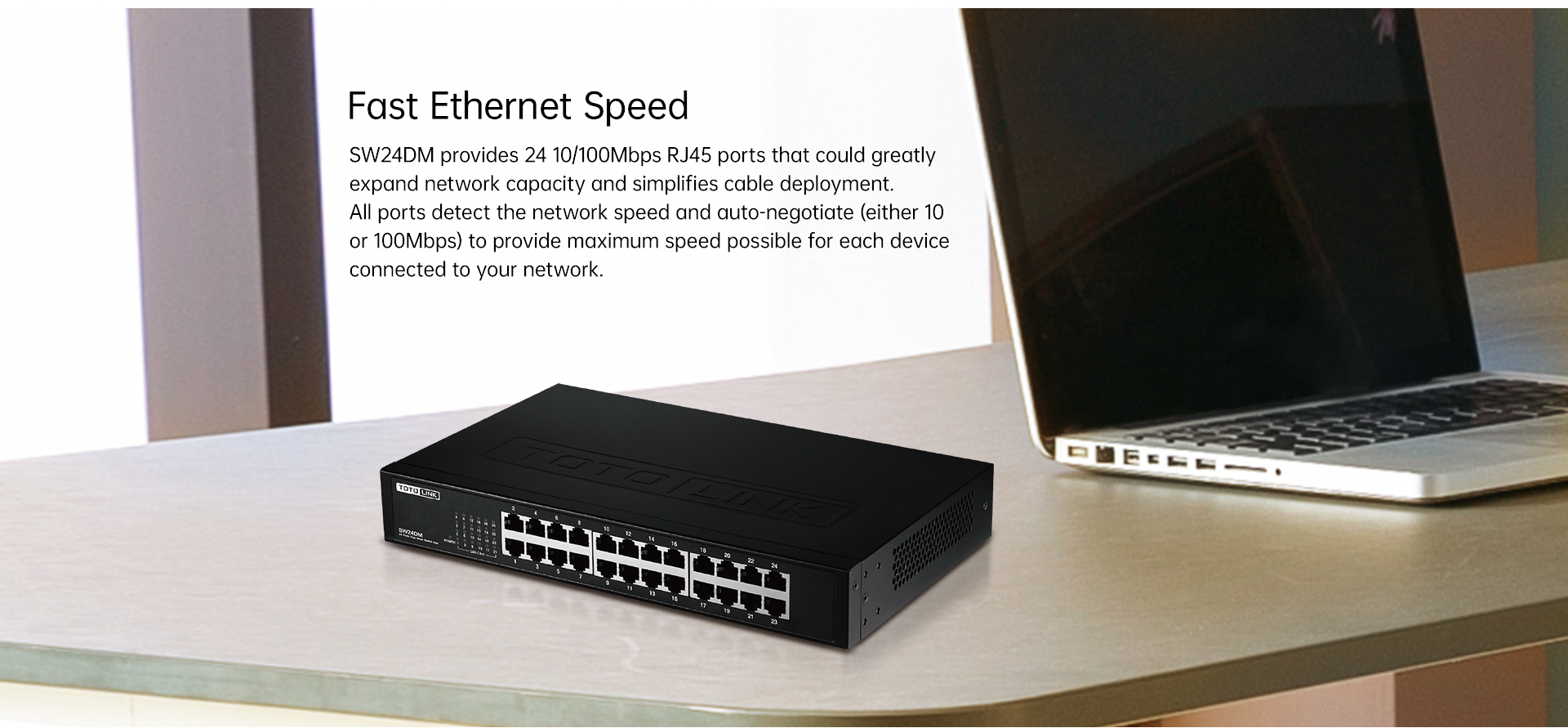

24 10/100Mbps auto-negotiated RJ45 ports.
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
8K entry MAC address table and automatic address learning.
Auto-MDI/MDIX eliminates the need for crossover cables.
Store-and-Forward switching scheme.
Performs non-blocking full wired speed.
Plug and Play.
Standard 13-inch Desktop/Rackmount Steel Case.
