What should I do if I want to restrict access to the network for some devices or children's devices

STEP 1: Log in to the wireless router management page

In the browser address bar, enter: itoolink.net. Press the Enter key, and if there is a login password, enter the router management interface login password and click "Login".

STEP 2:

Follow these steps

1. Enter advanced settings

2. Click on Security Settings

3. Find MAC filtering

STEP 3：

After the restrictions were completed, I found that I couldn't access the internet with my device

When my computer is connected to my TOTOLINK router and cannot obtain an IP address, I can check if my PC is configured as a static IP by following these steps

STEP 1:

Right-click the network icon in the lower right corner of the desktop, click to open "Network and internet settings"

STEP 2:

Scroll down, find and click on Network and Sharing Center

STEP 3：

Click on Ethernet

STEP 4：

Point Properties

STEP 5：

Find and double-click Internet Protocol 4 (TCP/IPv4)

STEP 6：

STEP 7：

The page automatically jumps back to Ethernet and click OK

Assign fixed IP addresses to terminals to prevent some issues caused by IP changes, such as setting up DMZ hosts

STEP 1: Log in to the wireless router management page

In the browser address bar, enter: itoolink.net. Press the Enter key, and if there is a login password, enter the router management interface login password and click "Login".

STEP 2

Go to Advanced Settings>Network Settings>IP/MAC Address Binding

After setting, it indicates that the IP address of the device with MAC address 98: E7: F4:6D: 05:8A is bound to 192.168.0.196

1: Check wiring connections

Ⅰ: Check if the computer is connected to the LAN port of the router. If it is connected to the WAN port, it is necessary to connect the computer to the LAN port of the router;

Ⅱ:If you log in to the management interface on your mobile phone, please check if the wireless signal is connected and disconnect your mobile data before attempting to log in again;

2.Check the router indicator light

Check if the SYS indicator light of the router is flashing. The normal state is flashing. If it is constantly on or not on, please power off and restart the router, and wait for about half a minute to see if it will flash normally. If it is still constantly on or not on, it indicates that the router is faulty.

3. Check the computer IP address settings

Check if the local IP address of the computer is automatically obtained. Please refer to the documentation for the setting method  How to configure the computer to automatically obtain an IP address.

4. Enter the login address correctly

5. Replace browser

Perhaps the browser is compatible or cached, and you can log in again with another browser

6. Replace the computer or phone to enter the interface

If there are no other browsers on the device, you can use another computer or phone to connect to the router and try logging in to the interface.

7. Router reset

If you still cannot log in after following the above methods, it is recommended to reset the router and use hardware methods (press the reset button) to reset it.

Reset method: When the router is powered on, press and hold the router RESET button for 8-10 seconds (i.e. when all indicator lights are on) before releasing it, and the router will return to its factory settings. (RESET small hole should be pressed with a pointed object such as a pen tip)

The network bandwidth resources are limited, and some terminal devices such as high-speed downloads and video live streaming will occupy a large amount of bandwidth, leading to other computers experiencing phenomena such as "slow internet access, high network cards, and high game ping values with large fluctuations".

The QoS function can limit the maximum uplink and downlink rates of computers, thereby ensuring the rational utilization of the entire network bandwidth resources.

STEP 1: Log in to the router management page

In the browser address bar, enter: itoolink.net. Press the Enter key, and if there is a login password, enter the router management interface login password and click "Login".

STEP 2: Enable QoS function

Find the basic settings as shown in the following figure, locate the QoS switch, and enable it

STEP 3：Set total bandwidth

STEP 4：Add restricted devices

1. Select the 'Add' option from the rule list below.

2. Click on "Magnifier icon" to display the list of currently connected devices.

3. Select the device you want to limit bandwidth on. (The illustrated items are only examples)

4. Specify the upload and download bandwidth size you want to limit.

5. Click the "Add" button on the right side of the rule to add it.

When my computer is connected to my TOTOLINK router and cannot obtain an IP address, I can check if my PC is configured as a static IP by following these steps

STEP 1:

Right-click the network icon in the lower right corner of the desktop, click to open "Network and internet settings"

STEP 2:

Scroll down, find and click on Network and Sharing Center

STEP 3：

Click on Ethernet

STEP 4：

Point Properties

STEP 5：

Find and double-click Internet Protocol 4 (TCP/IPv4)

STEP 6：

STEP 7：

The page automatically jumps back to Ethernet and click OK

This article introduces a wireless router compatible with TOTOTOLINK APP, using X6000R as an example

STEP 1:

Follow the steps below to connect your router.

STEP 2 :

Connect the mobile phone to the WiFi of TOTOLINK_X6000R, as shown in the figure below

STEP 3

Launch the Tether App on your phone

If there is no such APP, the Android device can download it through the Google play store,

Apple devices can be downloaded through the IOS store

1. Android device

2. IOS device

STEP 4

Select your TOTOLINK wireless router from device list. Then Enter admin for the password and then click LOGIN.

STEP-5: Log in to Quick Setup (Auto jump Quick Setup is only Applicable for the first connection setup)

STEP-6: Quick Setup.

STEP-7: More features: Click Application or Tools.

STEP-8: Binding router, remote management.

STEP 1:

Connect the line according to the method shown in the figure below.

If you don’t have a PC, you can also use your mobile phone or tablet to connect to the router’  WiFi. The SSID is generally TOTOLINK_model, and the login address is itotolink.net or 192.168.0.1

STEP 2 :

Log in to itotolink.net or 192.168.0.1 through a browser to enter the routing dashboard interface.

PC:

Mobile devices：

STEP 3 :

Through the PC interface as follows：

Through the phone UI as follows：

If you cannot successfully log in according to the above methods, or your account password cannot be logged in normally,

It is recommended that you restore the router to its original factory defaults and then operate again.

Application introduction:

This articles Applies to wireless router that’s compatible with TOTOLINK App. This article will take A720R as an example.

STEP-1: Follow the steps below to connect your router.

STEP-2:

Connect your smart phone to TOTOLINK Wi-Fi. The default wireless network name of TOTOLINK wireless router are printed on the bottom label.

STEP-3:

 Launch the Tether App on your phone.

STEP-4:

 Select your TOTOLINK wireless router from device list.Then Enter admin for the password and then click LOGIN.

STEP-5:

 Log in to Quick Setup.(Auto jump Quick Setup is only Applicable for the first connection setup)

STEP-6:

Quick Setup.

STEP-7:

More features: Click Application or Tools.

STEP-8:

Binding router, remote management.

STEP-1: Connect your computer

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:

The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

Select advanced settings to enter the settings page

STEP-4:

Enter the  Static DHCP Setting to open the setting and checklist the Enable,input IP Address ,MAC Address and Comment.After click Apply ,we can see the information in the static DHCP List.

Application introduction:

This article describes how to quickly make a wireless connection through the router's WPS button.

Diagram

Set up steps

STEP-1:

* Please make sure your router has WPS button before setting.

* Please make sure your wireless client supports WPS functionality before setting.

STEP-2:

Press WPS button on the router for 1s, WPS enabled. There are two types of wireless router WPS buttons: RST/WPS button and WPS button. As shown below.

2-1. RST/WPS button：

2-2. WPS button：

Note: If router is a RST/WPS button, no more than 5s, router will be reset to factory defaults if you press it for more than 5s.

STEP-3:

After pressing the WPS button, use wireless client to connect to the router WIFI signal. Using Computer and Mobile phone wireless connection as an example. As shown below.

3-1. Computer wireless connection:

3-2. Mobile phone  wireless connection:

Set up steps

STEP-1: Connect your computer

Connect to the router's LAN port with a network cable from a computer network port (or to search for and connect the  router's wireless signal).

STEP-2: Assigned manually IP Address

2-1. If the router’s LAN IP address is 192.168.1.1, please type in IP address 192.168.1.x （“x” range from 2 to 254）, the Subnet Mask is 255.255.255.0 and Gateway is 192.168.1.1.

2-2. If the router’s LAN IP address is 192.168.0.1, please type in IP address 192.168.0.x （“x” range from 2 to 254）, the Subnet Mask is 255.255.255.0 and Gateway is 192.168.0.1.

STEP-3: Login to the TOTOLINK router in your browser. Take 192.168.0.1 as an example.

STEP-4: After setting up the router successfully, please select Obtain an IP address automatically and Obtain DNS Server address automatically.

Note: Your terminal device must choose to obtain an IP address automatically to access the network.

Application introduction:

This article will introduce the difference between Router Mode, Repeater mode, AP mode, and WISP Mode.

Set up steps

STEP-1: Router Mode(Gateway mode)

Router Mode, the device is supposed to connect to the internet via ADSL/Cable modem. The WAN type can be setup on WAN page, including PPPOE, DHCP client, Static IP.

STEP-2: Repeater mode

Repeater Mode, you can extend the superior Wi-Fi signal by Repeater setting function under the Wireless column to increase the coverage of the wireless signal.

STEP-3: AP mode(Bridge mode)

AP mode, the router acts as a wireless switch, you can transfer the superior's AP/Router wired signal into wireless signal.

STEP-4: WISP Mode

WISP Mode, all ethernet ports are bridged together and the wireless client will connect to ISP access point. The NAT is enabled and PCs in ethernet ports share the same IP to ISP through wireless LAN.

FAQ Common problem

Q1: Can I log in to the TOTOLINK ID after setting the AP mode/Repeater mode?

A: TOTOLINK ID cannot be logged in after setting AP mode/Repeater mode.

Q2: How to enter the router management interface in AP mode/Repeater mode?

A: Refer to FAQ#How to login to router by manually configuring IP

Application introduction:

After entering the management address of the router in the address bar of Chrome browser, the page cannot be displayed after entering the management password, as shown below.

Note:

Ensure that the login IP address you typed in the address bar is correct, as well as the login username and password.

Method One: login via PC

Set up steps

STEP-1: Change browser and clear browser cache

Try changing old version (before 72.0.3626.96) of Chrome browser or try other browser, such as Firefox, Internet Explorer, etc., and clear your browser cache.

Delete cookies on the web browser. Here we take Firefox for example.

Note: In general, the browser enters the management address of the router and error pops up. Please use this method first.

STEP-2:Enter 192.168.0.1 into the address bar of your browser. Log in the settings interface.

Note:

The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

Method Two: login via tablet/Cellphone

STEP-1: Change browser and clear browser cache

Try other browser, such as Firefox, Opera, etc., and clear your browser cache.

STEP-2: Enter 192.168.0.1 into the address bar of your browser. Log in the settings interface.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

★ Before downloading files. please confirm the hardware version ofyour device and choose the corresponiding firmware version to uparade.

★ Wrong firrmware version may damage your device and no warrante.

Set up steps

STEP-1: Guide for Hardware Version

For most TOTOLINK routers, you can see two bar coded stickers at the front of the device, the character string started with Model No.(for example N300RT) and ended with Hardware Version (for example V2.0) is the serial number of your device. See below:

STEP-2:

Open browser, enter www.totolink.net. Download the required files.

For example, if your hardware yersion is V2.0 , please download V2 version.

Note: If the hardware version is V1, V1 will be hidden.

STEP-3:

Unzip the file, correct upgrade file name is suffixed with ”web” or “bin” (except for some special models)

STEP-1: Difference of 2.4G and 5G Wi-Fi

1-1.The primary difference between the 2.4 GHz and 5GHz wireless frequencies is range as the 2.4GHz frequency is able to reach farther than the 5GHz frequency. This is a result of the basic characteristics that waves attenuate much faster at higher frequencies. So if you are more concerned with the coverage, you should select 2.4GHz rather than 5GHz.

1-2.The second difference is the number of devices on the frequencies. 2.4GHz suffers more interference than 5GHz.

1). The older 11g standard only uses the 2.4GHz frequency, majority of the world is on it. 2.4 GHz has fewer channel options with only three of them non-overlapping, while 5GHz has 23 non-overlapping channels.

2). A lot of other devices are also on the 2.4 GHz frequencies, the biggest offenders are microwaves and cordless phones. These devices add noise to the medium that can further decrease the speed of wireless networks.

In both aspects, choosing to deploy on the 5GHz frequency is the much better option as you have more channels to use to isolate yourself from other networks and there are far fewer interference sources.

But the radar and military frequency is also 5GHz, so 5GHz wireless may also have some interference, and many countries require that wireless devices working on 5GHz should support DFS(Dynamic Frequency Selection) and TPC(Transmitting Power Control).

STEP-2: Summary

3-1. All TOTOLINK dual band routers support 2.4GHz and 5GHz simultaneously；

3-2. 5GHz has a shorter range than 2.4GHz;

3-2. 5GHz radio band that offers high-speed wireless connection that could with less interference in compare to 2.4G WiFi network.

Check the label on the bottom of the router to get the login address of the router, as shown below.

Product sticker	Default login address
	itotolink.net
	192.168.0.1
	192.168..1

Obtain the login address of the router through the computer (take win10 system as an example).

STEP-1:

The computer connects to the wireless signal of the router. (The back sticker has the factory default wireless signal name)

STEP-2:

2-1. Click on wireless icon at the bottom right corner on the screen, Select Network & Internet settings.

2-2. Select the connected wireless network.

2-3. Select Details to check whether an IP address is obtained.

If the IPV4 address is 192.168.0.*, the default gateway of IPV4 is 192.168.0.1, indicating that the login address of the router is 192.168.0.1.

If the IPV4 address is 192.168.1.*, the default gateway of IPV4 is 192.168.1.1, indicating that the login address of the router is 192.168.1.1.

If the IP is not available, you can disconnect the signal and reconnect it. If it is still invalid, you can restore the router to the factory and check the IP address obtained after the connection signal.

Note: Before this, please confirm that your computer is selected to "acquire IP address automatically".

For the setting method of the computer automatically obtaining the IP address, refer to the following figure (take win10 system as an example).

Obtain the login address of the router through your mobile phone.

STEP-1

The wireless signal that the phone connects to the router. (The back sticker has the factory default wireless signal name)

STEP-2:

Select your phone's wireless network settings to check if you have an IP address.

At this point, the IPV4 address is 192.168.0.*, and the IPV4 default gateway is 192.168.0.1, indicating that the router's login address is 192.168.0.1.

STEP-3:

Enter 192.168.0.1 in the address bar of the mobile browser.

STEP-4:

If you still can't enter, you can change the browser or a mobile phone or computer through the 192.168.0.1 login interface.

STEP-5:

If the fourth step is invalid, the router can be reset.

Reset method:

1. Please make sure your router’s power is on regularly, then press the RST button for about 10s.(The RESET pin should be held with a pointed object such as a paper clip or a pen tip)

2. Loosen the button until your router’s LED lights all flashing, then you have reset your router to default settings.

Application introduction: This article will illustrate way to manually set an IP address on Windows 10/Mobile phone.

Manually set IP address on Windows 10

1-1. Find the small computer icon in the lower right corner of your computer desktop ，click on “Network & Internet settings”.

1-2. Pop up the Network & Internet Center interface, click on “Change adapter options” under Related settings.

1-3. After open changing adapter options,find Ethernet,click and select Properties.(If you want to check the wireless IP address, find WLAN)

1-4. Select “Internet Protocol Version 4 (TCP/IPv4)”,click on “Properties”.

1-5. To manually set IP address, select “Use the following IP address”, set the IP address and subnet mask; Finally click on“ok”.Take the IP address 192.168.0.10 as an example.

1-6. When you don't need to set the IP address manually, Please select Obtain an IP address automatically and Obtain DNS Server address automatically.

Manually set IP address on Mobile phone

1-1. Click Settings on the screen-> Wireless Network (or Wi-Fi), click on the exclamation mark behind the wireless signal.

Note: Before manually set IP address , make sure the wireless terminal is currently connected or is connecting to the wireless signal.

1-2. Click Static, enter the corresponding parameters in the IP address, gateway, and network mask positions, and click Save. Take the IP address 192.168.0.10 as an example.

1-3. When you don't need to set the IP address manually, Please turn off static IP.

Application introduction: To enter the router’s setting interface, you may enter the specified IP if you know setup your PC or set your PC to obtain an IP address automatically.

The steps for configuring TCP/IP properties (Here I take system W10 for example).

STEP-1:

Click on   at the bottom right corner on the screen

STEP-2:

Click on [Properties] button in the lower left corner

STEP-3:

Double click on “Internet Protocol (TCP/IP)”

STEP-4:

Now you have two ways to configure the TCP/IP protocol below:

4-1. Assigned by DHCP Sever

Select Obtain an IP address automatically and Obtain DNS Server address automatically, as shown in the figure below. These may be selected by default. Then click OK to save setting.

4-2. Assigned manually

Using the following IP Address, as shown in the following figure.

[1] If the router’s LAN IP address is 192.168.1.1, please type in IP address 192.168.1.x （“x” range from 2 to 254）, the Subnet Mask is 255.255.255.0 and Gateway is 192.168.1.1.

[2] If the router’s LAN IP address is 192.168.0.1, please type in IP address 192.168.0.x （“x” range from 2 to 254）, the Subnet Mask is 255.255.255.0 and Gateway is 192.168.0.1.

STEP-5:

Check the IP address you get automatically in the former step

The IP address is 192.168.0.2, it means the network segment of your PC is 0, you should enter http://192.168.0.1 into the address bar of your browser.

Enter the router’s setting interface similarly and do some settings.

Application introduction:This article describes the Windows operating system computer connected to the router (or other network device) by wireless or wired, view the gateway IP address of the current router.

For Windows W10:

STEP-1. TOTOLINK Router LAN Port Connects the PC Or wirelessly connect to TOTOLINK Router WIFI.

STEP-2. Right-click the Network Connections icon, click on “Network & Internet settings”.

STEP-3. Pop up the Network & Internet Center interface, click on “Network and Sharing Centre” under Related settings.

STEP-4. Click connections target

STEP-5. Clink Details…

STEP-6. Find to IPv4 Default Gateway, This is the current gateway address of your router.

For Windows 7，8, 8.1 and 10:

STEP-1. Click on windows key+ R key on the keyboard at the same time.

   ‘R’

STEP-2. Enter cmd in the field and click OK button.

STEP-3. Type in ipconfig and click enter key. Find to IPv4 Default Gateway, This is the current gateway address of your router.

If you can’t login the web interface of TOTOLINK, it may be related to factors such as router, line, browser or computer.

Please follow the steps below for detailed troubleshooting.

Application introduction:

After entering the management address of the router in the address bar of the browser, the management page cannot be displayed, or the page cannot be displayed after entering the management password, as shown below.

Note: Ensure that the login IP address you typed in the address bar is correct, as well as the login username and password.

STEP-1: Check line connection

The operating computer should be connected to the router and can be connected via a network cable or wirelessly.

Connect through the network cable:

Operate the computer and connect to the LAN port of the router, and ensure that the indicator of the computer network cable interface and the corresponding interface of the router is on.

Wireless connection:

The wireless terminal needs to connect to the router signal. When the factory setting is set, the router default Wi-Fi name and password are printed on the bottom label of the router.

Note: If the signal of the wireless router is not found, it is recommended to reset the router.

STEP-2: Check computer IP address

If the computer does not specify or obtain the correct IP address, it will be unable to log in to the management interface.

Be sure to set the IP address of the operating computer to be automatically obtained. Take the Windows 10 system wired network card as an example. For the setting method of the computer automatically obtaining the IP address, refer to the following figure.

STEP-3: Check login address

TOTOLINK router currently has three types of login addresses, and different router addresses may be different:

Management page address: itotolink.net or 192.168.0.1 or 192.168.1.1.

For the specific login address, please check the sticker at the bottom of the router, as shown below (take itotolink.net as an example).

After confirming the login address, open the browser, clear the address bar and enter the management address, press Enter, as shown below.

STEP-4: Check login password

If the password input box of the login management interface can be displayed, but the wrong password is entered, the management interface cannot be logged.

Our common default login password prompt box, as shown below.

Note: If you forget the set or modified management password, you can only restore the factory settings.

STEP-5: Change your browser or computer

A. Change browser and clear browser cache

Try changing your browsers like Google Chrome, Firefox, Internet Explorer, etc., and clear your browser cache.

Delete cookies on the web browser. Here we take Google Chrome for example.

Note: In general, the browser enters the management address of the router and a 404 error pops up. Please use this method first.

B. Try to log in with your phone

If you are unable to log in using your computer, you can try to change another computer or use your mobile phone to log in to the management interface (using the mobile browser), as shown below, enter itotolink.net as an example.

STEP-6: Reset router

If you still cannot log into the router's setup page after troubleshooting according to the above methods, it is recommended to restore the factory settings. There are two types of wireless router reset buttons: RESET pin and RESET button. As shown below.

Reset method:

1. Please make sure your router’s power is on regularly, then press the RST button for about 10s.(The RESET pin should be held with a pointed object such as a paper clip or a pen tip)

2. Loosen the button until your router’s LED lights all flashing, then you have reset your router to default settings.

Note: Some wireless routers share a button with RESET.

Application introduction:

Some TOTOLINK products have more than one hardware version, using V1, V2, etc for separation, and generally, each hardware version corresponds to a specifically developed firmware.

If you want to upgrade your device to the latest firmware, you need to choose the correct firmware version for your device.

【 CAUTION 】

All content on this website is only applicable to models selling in overseas markets (outside China   mainland, Taiwan and South Korea ),  any model purchased from China mainland,Taiwan or South Korea caused damage by upgrading software on this website is excluded in after-sales service range

For most TOTOLINK products, you can see a bar coded sticker at the front of the device, there is a  character string “VX.Y” (for example, V1.1), See below:

The number X is the Hardware Version of your device. If the string shows “V1.y”, it means the hardware version is V1.

Application introduction: Ping is used to test connectivity to a specific host in the network with the use of Internet Protocol (IP) address or a specific website URL.

STEP-1. Click Start-> Run.

STEP-2. Enter cmd in the field and click OK button.

STEP-3. Type in Ping 192.168.1.1 and click enter key.

For Windows 7，8, 8.1 and 10:

STEP-1. Click on windows key+ R key on the keyboard at the same time.

 +‘R’

STEP-2. Enter cmd in the field and click OK button.

STEP-3. Type in Ping 192.168.1.1 and click enter key.

Application introduction: USB3.0 is the upgraded version of USB2.0 to accelerate data transmitting rate with low power consumption. It adds more practical function base on USB2.0 such as better power management and is backwards compatible with USB2.0.

Comparison of USB3.0 and USB2.0:

USB3.0 Connector：

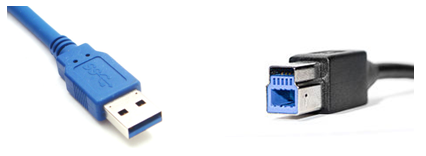

     USB 3.0 Standard-A                        USB 3.0 Standard-B plug

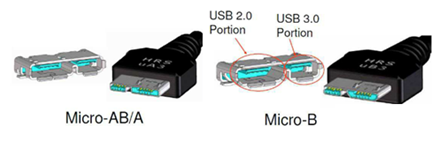

                                  USB 3.0 Micro plug

Some TOTOLINK Routers are equipped with USB port, but the functions may be different. The above routers USB port can charge for mobile phones so far.

Application introduction: IEEE 802.11ac is a wireless computer networking standard in the 802.11 family, developed in the IEEE Standards Association process, providing high-throughput wireless local area networks (WLANs) on the 5 GHz band.

Comparison of Wireless-AC and Wireless-N technologies:

1. Throughput

The 802.11n Wi-Fi connections max out at around 150Mbps with one antenna, 300Mbps with two and 450Mbps with three antennas. 802.11ac connections will be roughly three times faster - so that's 450Mbps, 900Mbps and 1.3Gbps respectively.

2. Channel Bandwidth

Mandatory 80 MHz channel bandwidth for stations, 160 MHz available optionally

40 MHz maximum in 802.11n

3. Modulation

256-QAM, rate 3/4 and 5/6, added as optional modes in 802.11ac

64-QAM, rate 5/6 maximum in 802.11n

4. MIMO spatial streams

Up to eight spatial streams in 802.11ac (vs. four in 802.11n)
