What should I do if I want to restrict access to the network for some devices or children's devices

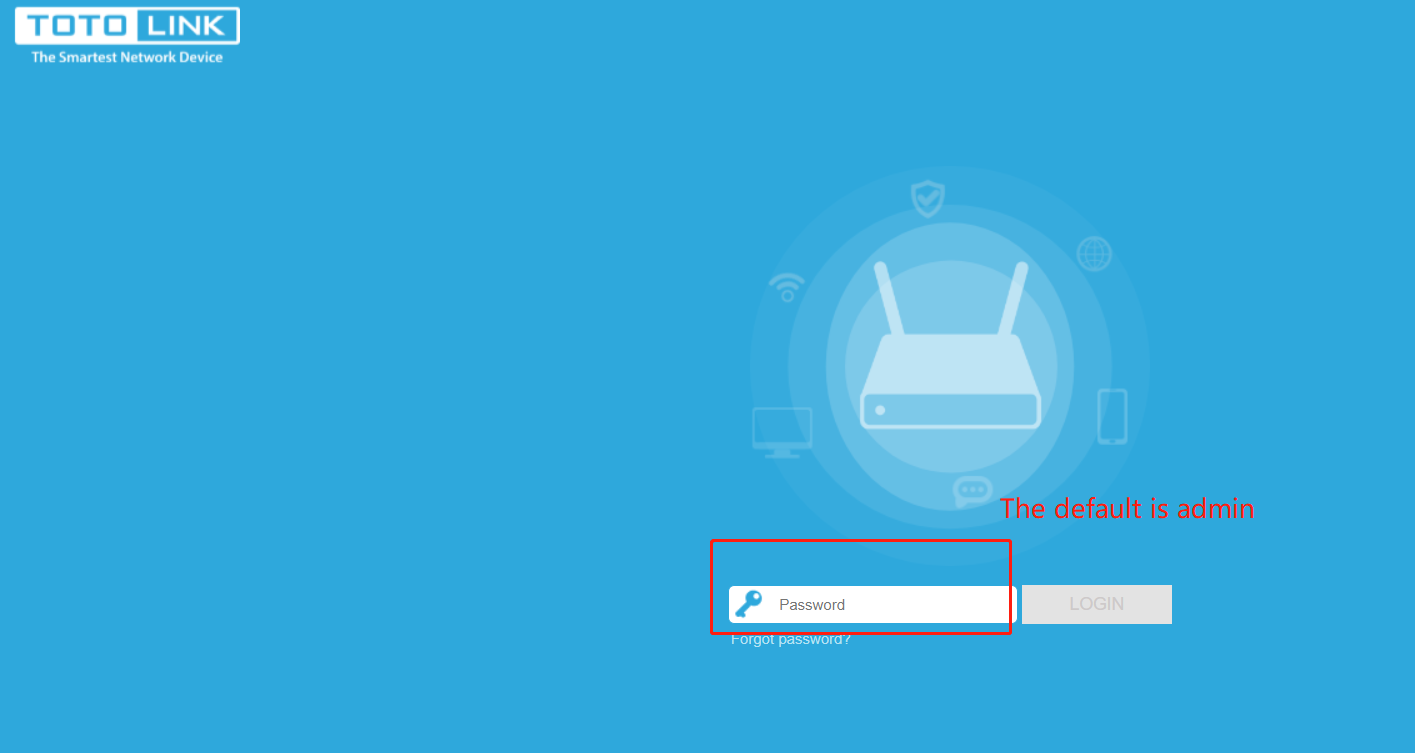

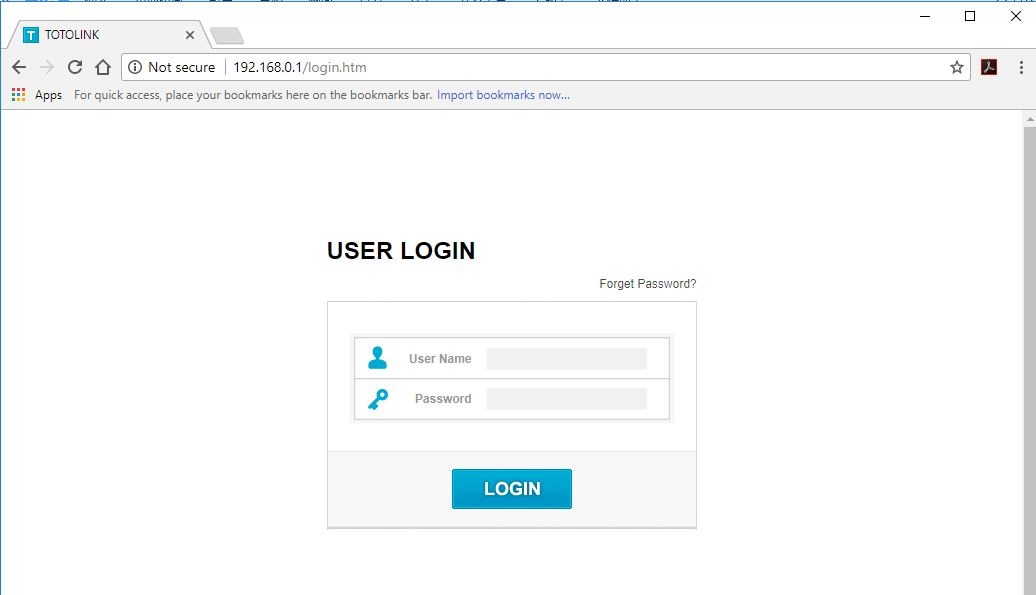

STEP 1: Log in to the wireless router management page

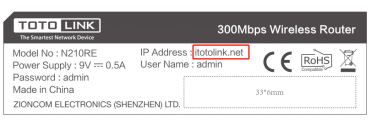

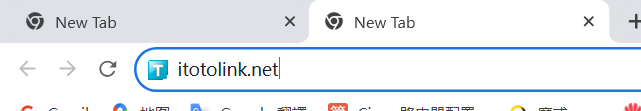

In the browser address bar, enter: itoolink.net. Press the Enter key, and if there is a login password, enter the router management interface login password and click "Login".

STEP 2:

Follow these steps

1. Enter advanced settings

2. Click on Security Settings

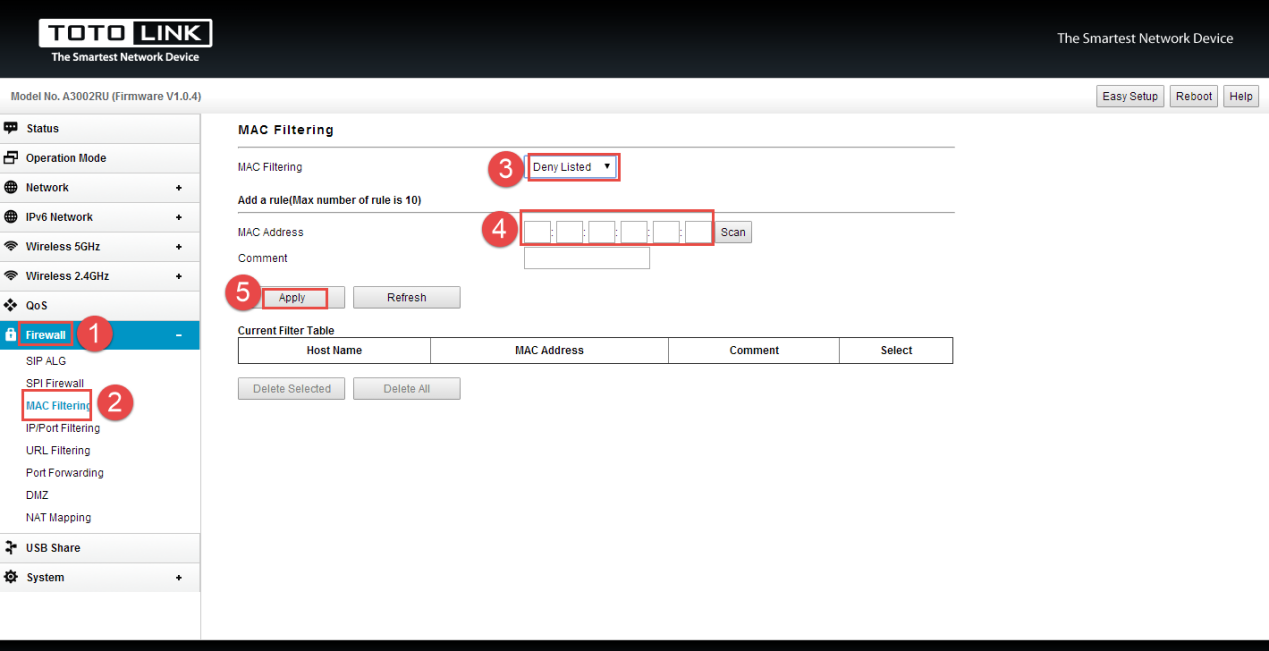

3. Find MAC filtering

STEP 3：

After the restrictions were completed, I found that I couldn't access the internet with my device

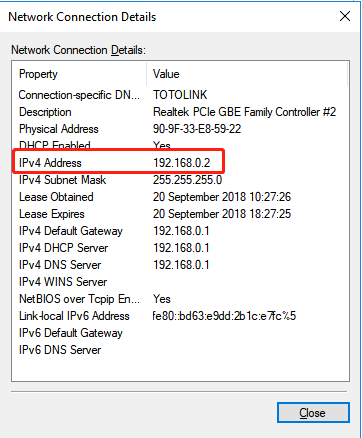

When my computer is connected to my TOTOLINK router and cannot obtain an IP address, I can check if my PC is configured as a static IP by following these steps

STEP 1:

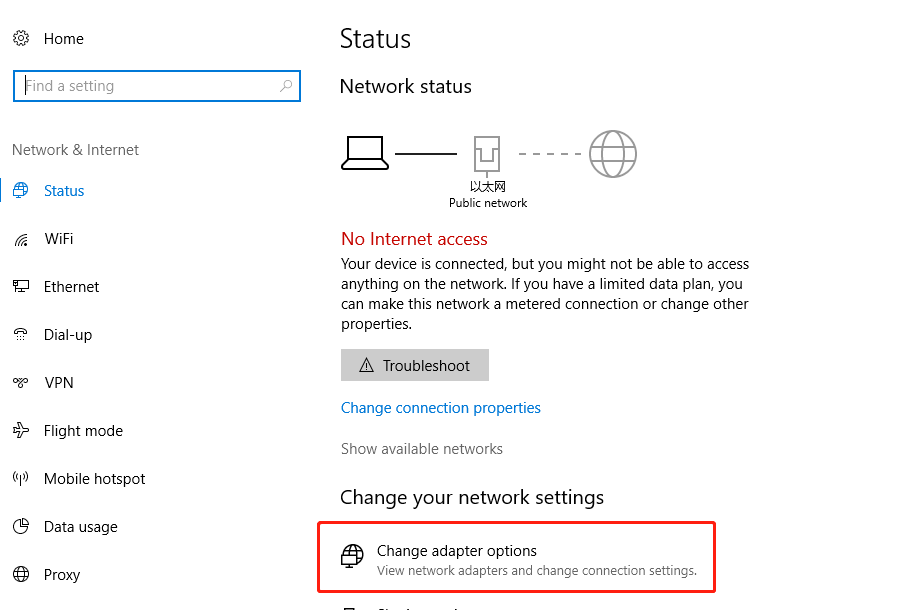

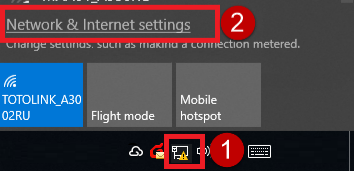

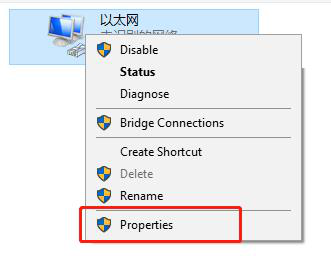

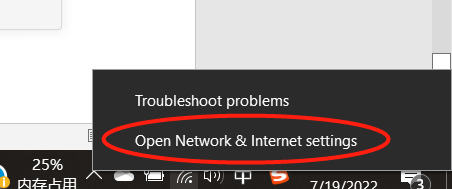

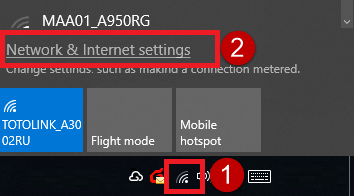

Right-click the network icon in the lower right corner of the desktop, click to open "Network and internet settings"

STEP 2:

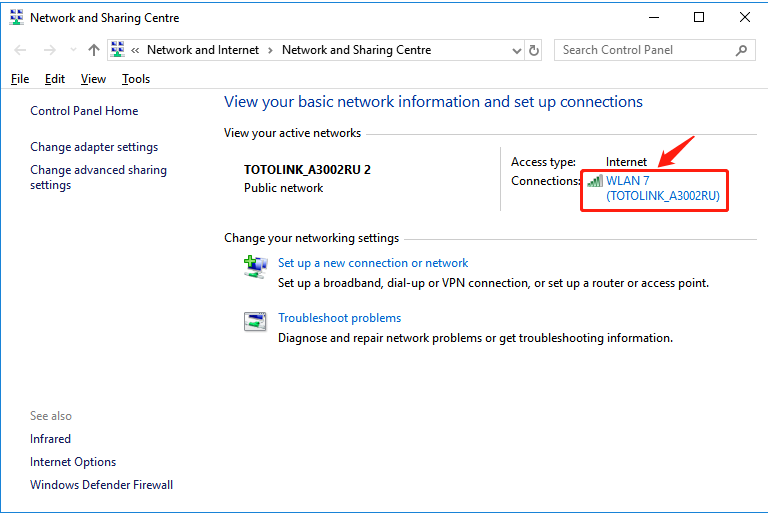

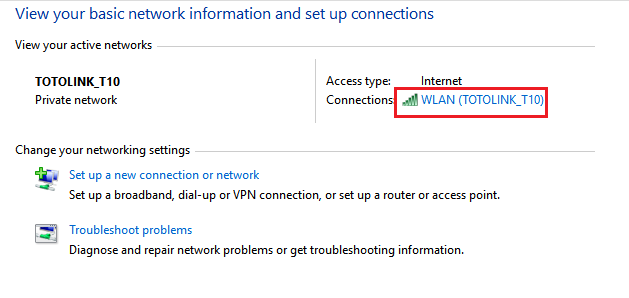

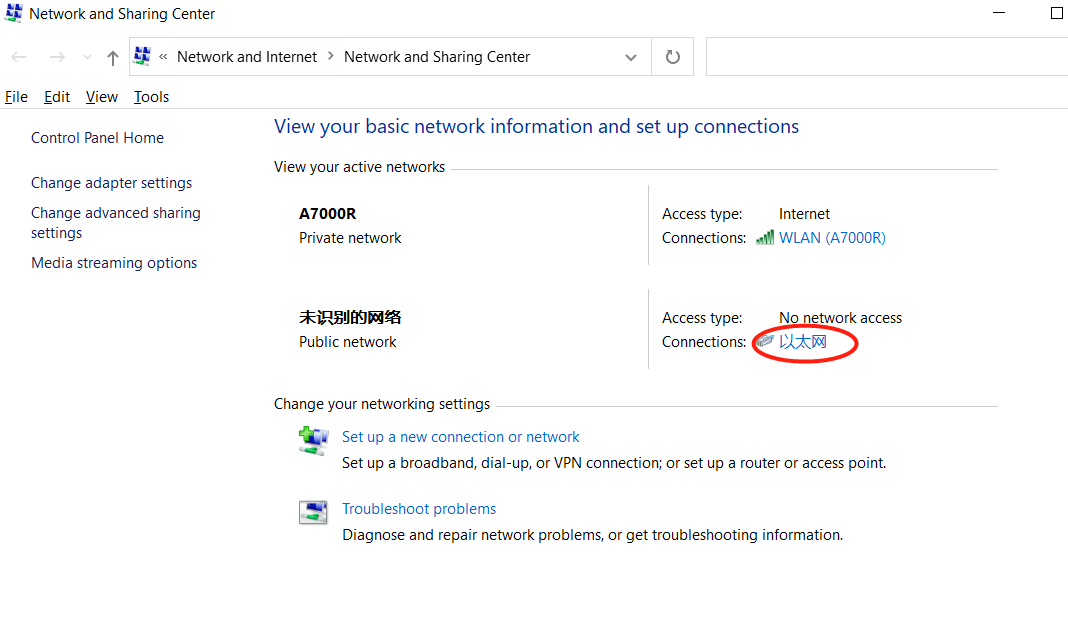

Scroll down, find and click on Network and Sharing Center

STEP 3：

Click on Ethernet

STEP 4：

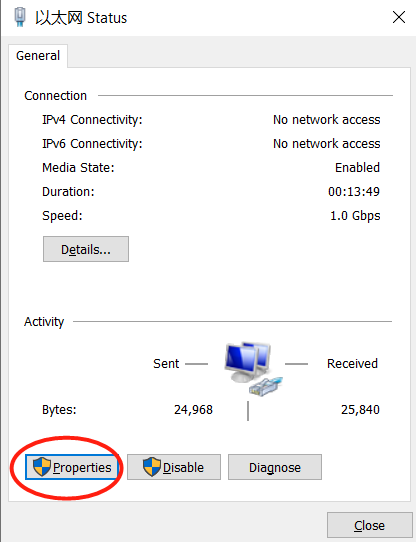

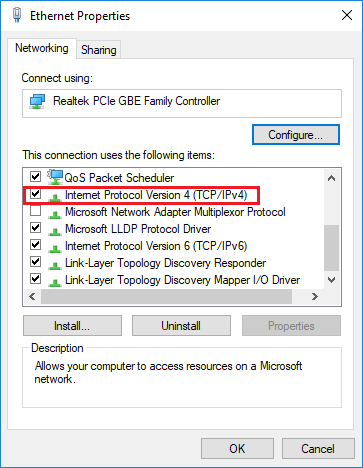

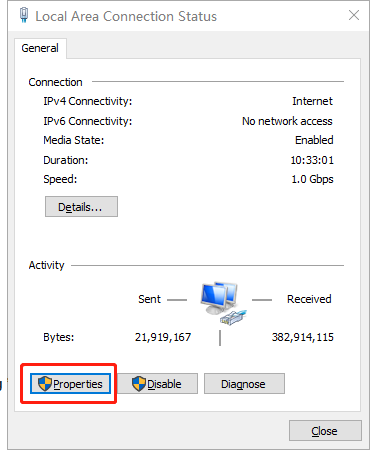

Point Properties

STEP 5：

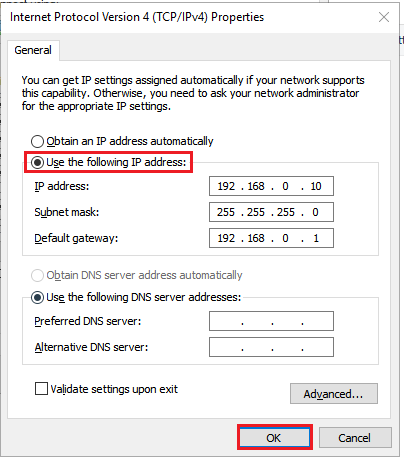

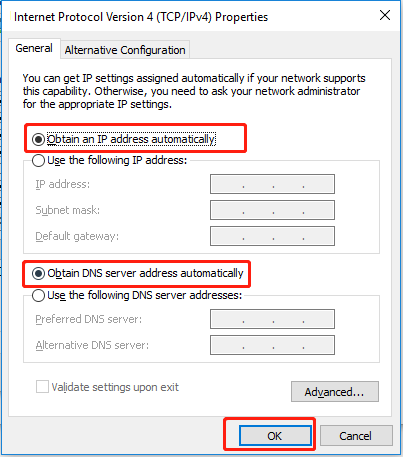

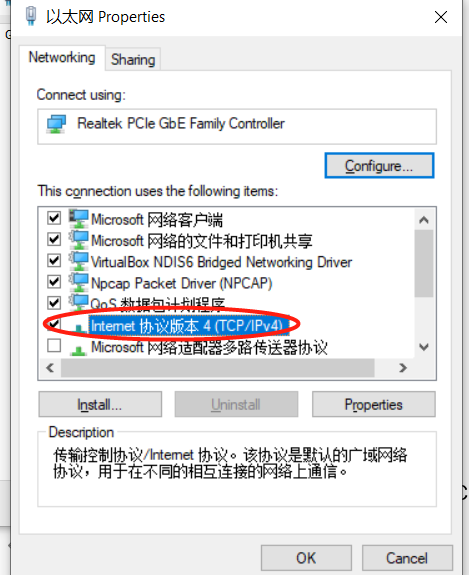

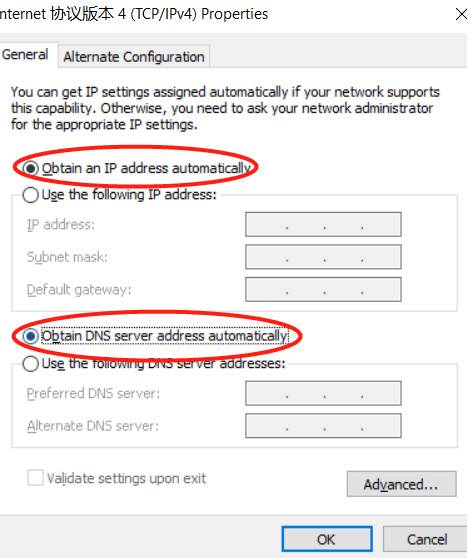

Find and double-click Internet Protocol 4 (TCP/IPv4)

STEP 6：

STEP 7：

The page automatically jumps back to Ethernet and click OK

Assign fixed IP addresses to terminals to prevent some issues caused by IP changes, such as setting up DMZ hosts

STEP 1: Log in to the wireless router management page

In the browser address bar, enter: itoolink.net. Press the Enter key, and if there is a login password, enter the router management interface login password and click "Login".

STEP 2

Go to Advanced Settings>Network Settings>IP/MAC Address Binding

After setting, it indicates that the IP address of the device with MAC address 98: E7: F4:6D: 05:8A is bound to 192.168.0.196

1: Check wiring connections

Ⅰ: Check if the computer is connected to the LAN port of the router. If it is connected to the WAN port, it is necessary to connect the computer to the LAN port of the router;

Ⅱ:If you log in to the management interface on your mobile phone, please check if the wireless signal is connected and disconnect your mobile data before attempting to log in again;

2.Check the router indicator light

Check if the SYS indicator light of the router is flashing. The normal state is flashing. If it is constantly on or not on, please power off and restart the router, and wait for about half a minute to see if it will flash normally. If it is still constantly on or not on, it indicates that the router is faulty.

3. Check the computer IP address settings

Check if the local IP address of the computer is automatically obtained. Please refer to the documentation for the setting method  How to configure the computer to automatically obtain an IP address.

4. Enter the login address correctly

5. Replace browser

Perhaps the browser is compatible or cached, and you can log in again with another browser

6. Replace the computer or phone to enter the interface

If there are no other browsers on the device, you can use another computer or phone to connect to the router and try logging in to the interface.

7. Router reset

If you still cannot log in after following the above methods, it is recommended to reset the router and use hardware methods (press the reset button) to reset it.

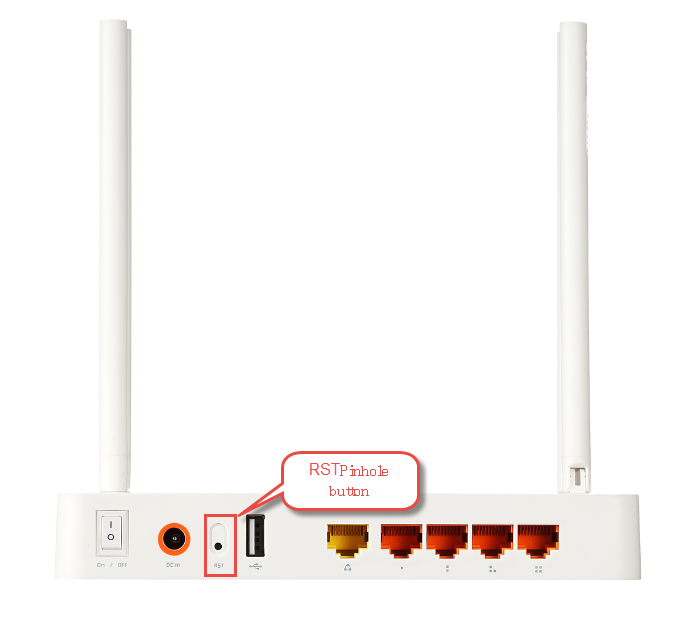

Reset method: When the router is powered on, press and hold the router RESET button for 8-10 seconds (i.e. when all indicator lights are on) before releasing it, and the router will return to its factory settings. (RESET small hole should be pressed with a pointed object such as a pen tip)

The network bandwidth resources are limited, and some terminal devices such as high-speed downloads and video live streaming will occupy a large amount of bandwidth, leading to other computers experiencing phenomena such as "slow internet access, high network cards, and high game ping values with large fluctuations".

The QoS function can limit the maximum uplink and downlink rates of computers, thereby ensuring the rational utilization of the entire network bandwidth resources.

STEP 1: Log in to the router management page

In the browser address bar, enter: itoolink.net. Press the Enter key, and if there is a login password, enter the router management interface login password and click "Login".

STEP 2: Enable QoS function

Find the basic settings as shown in the following figure, locate the QoS switch, and enable it

STEP 3：Set total bandwidth

STEP 4：Add restricted devices

1. Select the 'Add' option from the rule list below.

2. Click on "Magnifier icon" to display the list of currently connected devices.

3. Select the device you want to limit bandwidth on. (The illustrated items are only examples)

4. Specify the upload and download bandwidth size you want to limit.

5. Click the "Add" button on the right side of the rule to add it.

When my computer is connected to my TOTOLINK router and cannot obtain an IP address, I can check if my PC is configured as a static IP by following these steps

STEP 1:

Right-click the network icon in the lower right corner of the desktop, click to open "Network and internet settings"

STEP 2:

Scroll down, find and click on Network and Sharing Center

STEP 3：

Click on Ethernet

STEP 4：

Point Properties

STEP 5：

Find and double-click Internet Protocol 4 (TCP/IPv4)

STEP 6：

STEP 7：

The page automatically jumps back to Ethernet and click OK

This article introduces a wireless router compatible with TOTOTOLINK APP, using X6000R as an example

STEP 1:

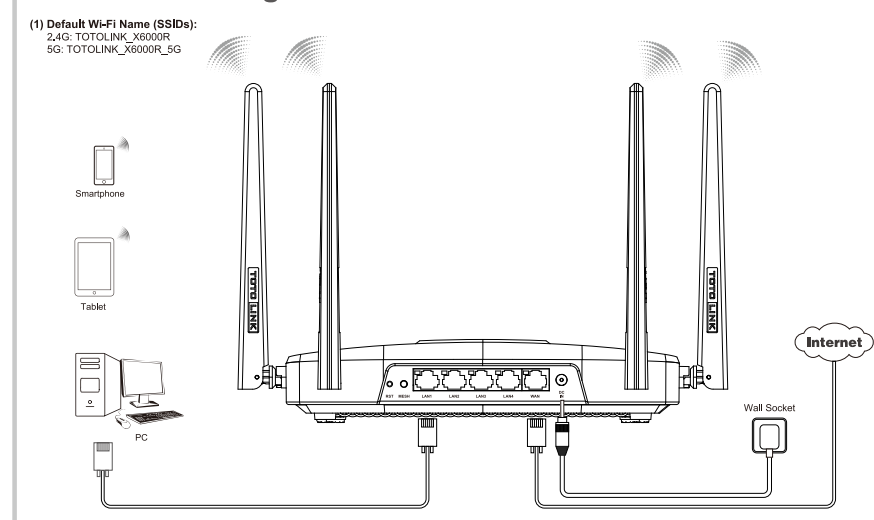

Follow the steps below to connect your router.

STEP 2 :

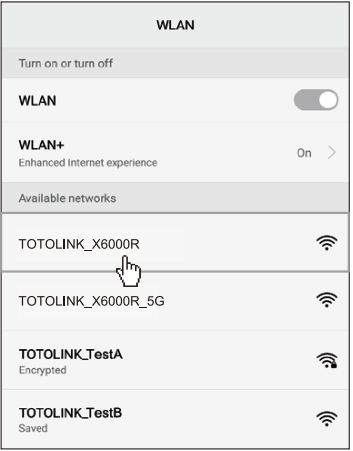

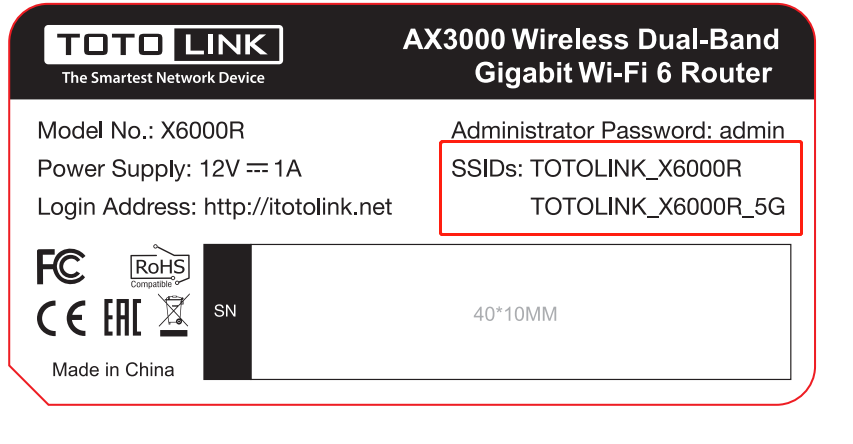

Connect the mobile phone to the WiFi of TOTOLINK_X6000R, as shown in the figure below

STEP 3

Launch the Tether App on your phone

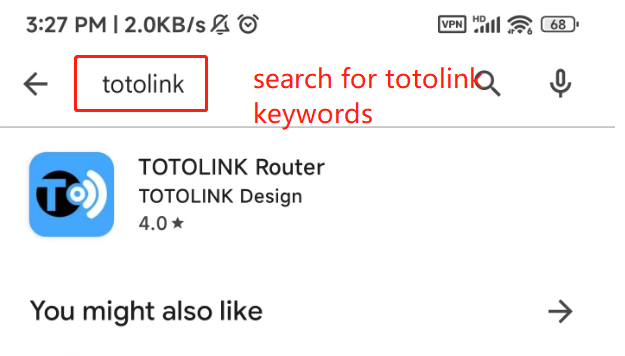

If there is no such APP, the Android device can download it through the Google play store,

Apple devices can be downloaded through the IOS store

1. Android device

2. IOS device

STEP 4

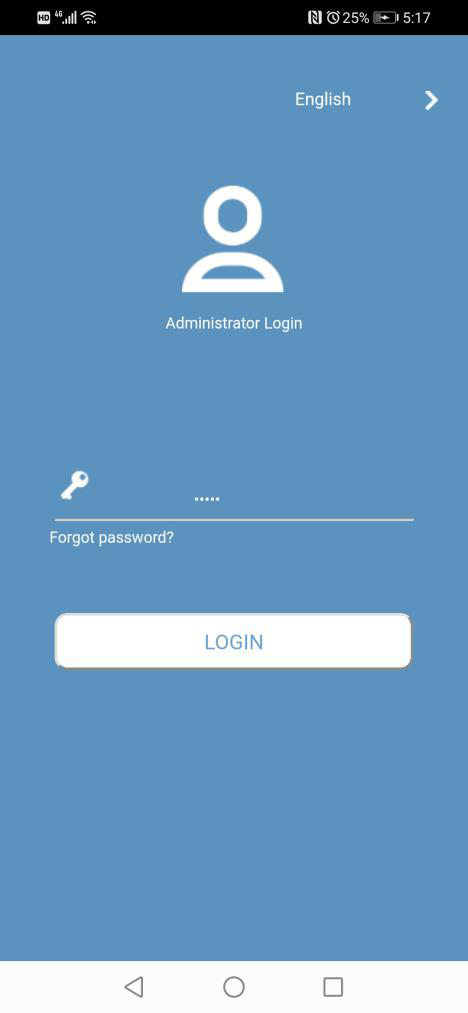

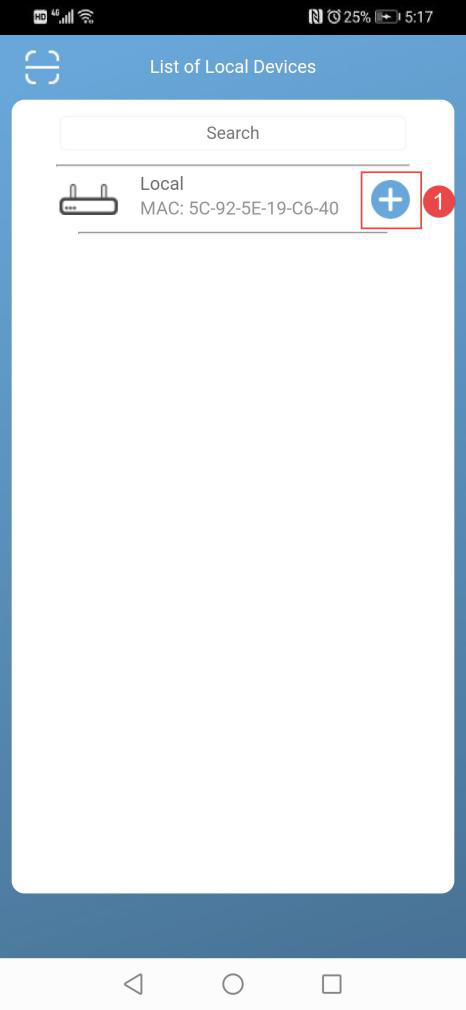

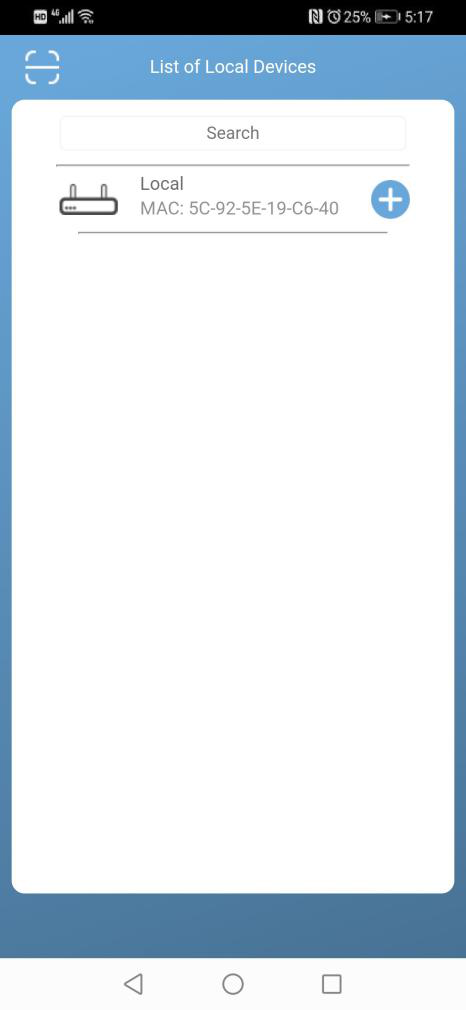

Select your TOTOLINK wireless router from device list. Then Enter admin for the password and then click LOGIN.

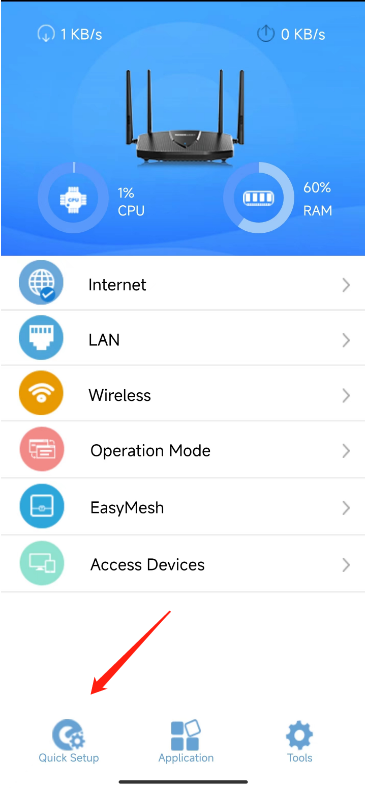

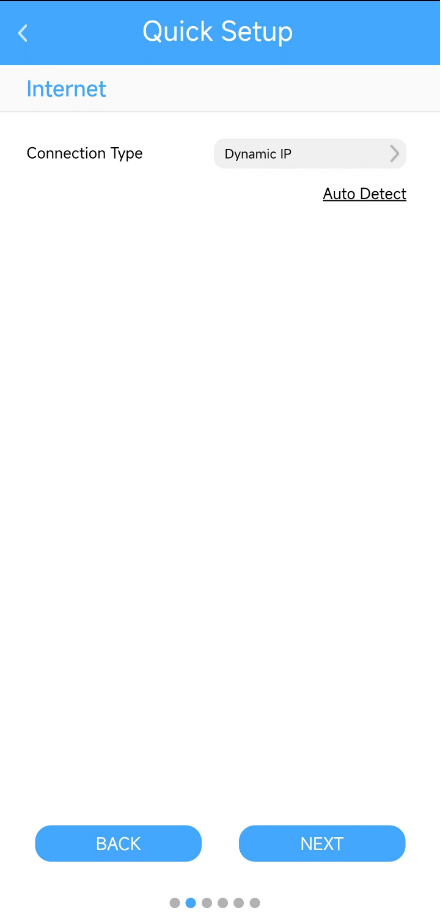

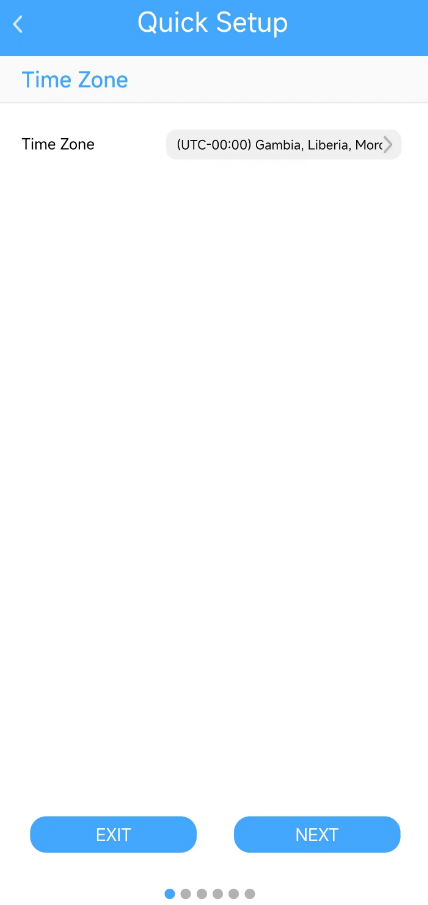

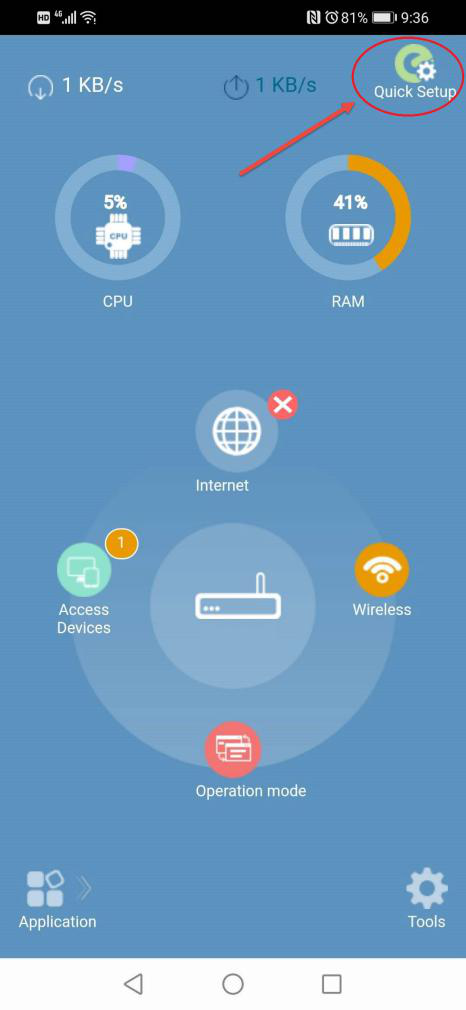

STEP-5: Log in to Quick Setup (Auto jump Quick Setup is only Applicable for the first connection setup)

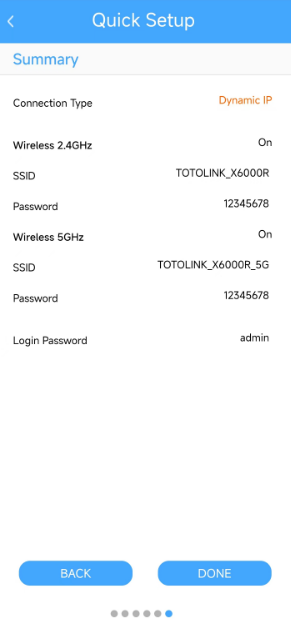

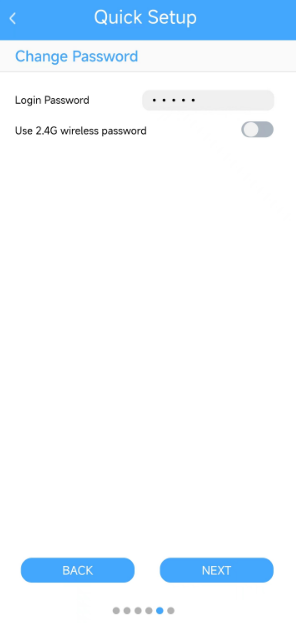

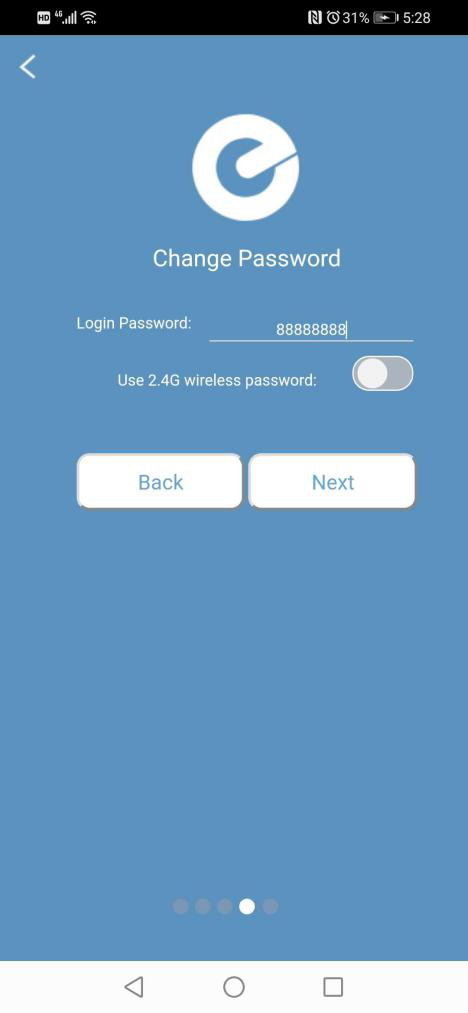

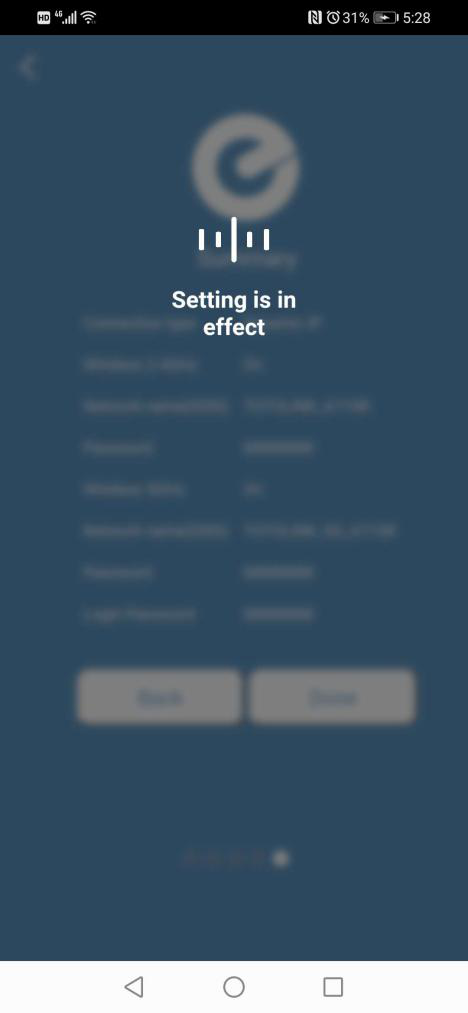

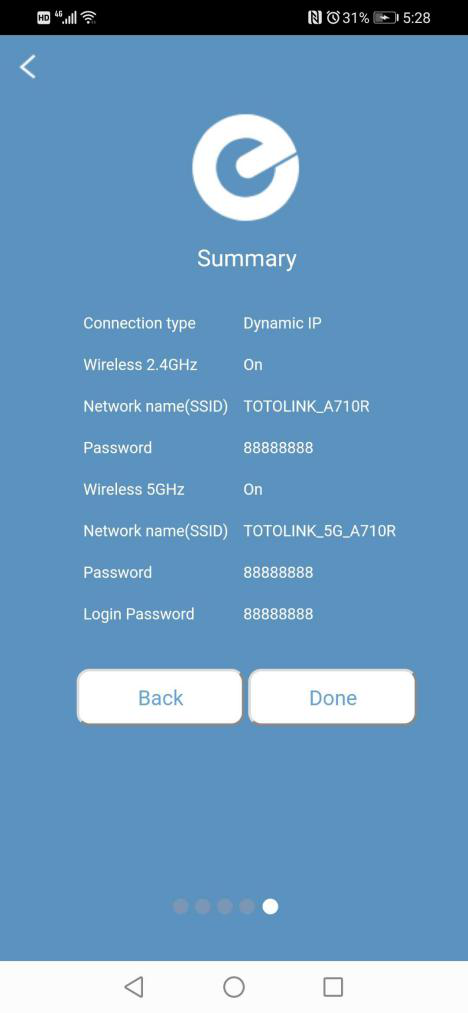

STEP-6: Quick Setup.

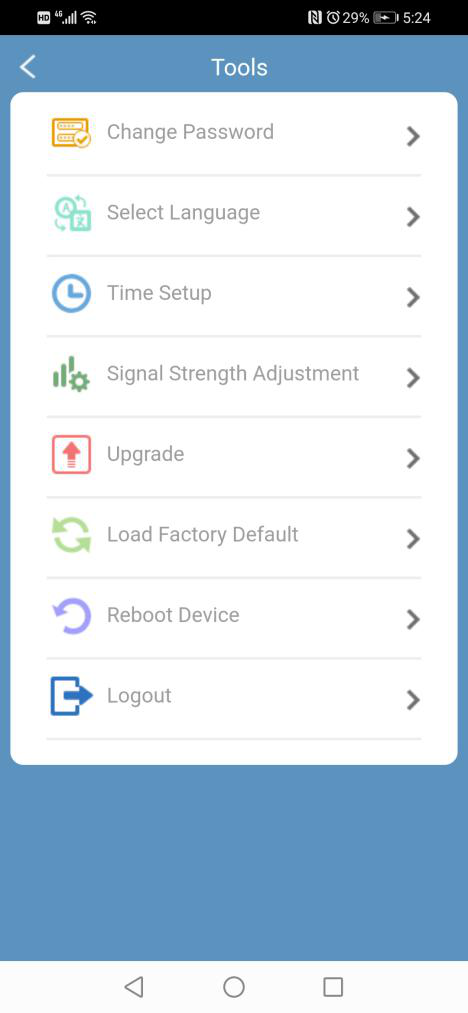

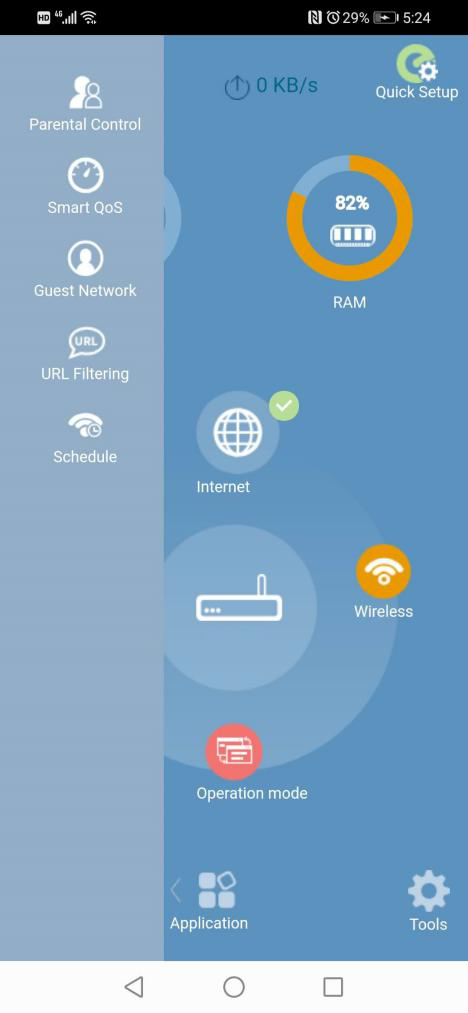

STEP-7: More features: Click Application or Tools.

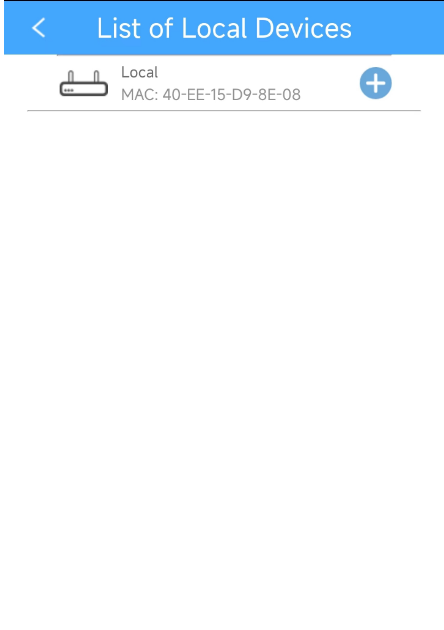

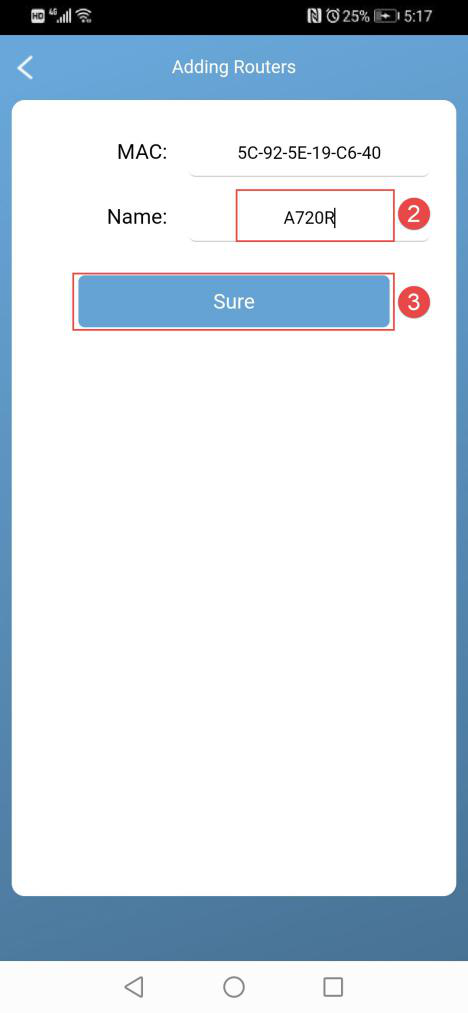

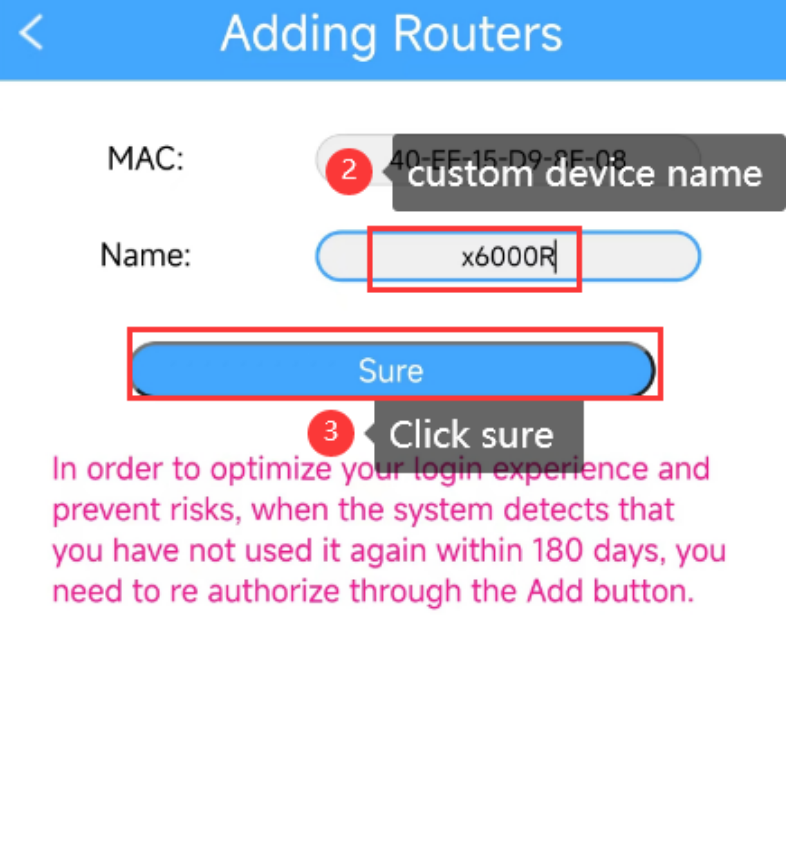

STEP-8: Binding router, remote management.

STEP 1:

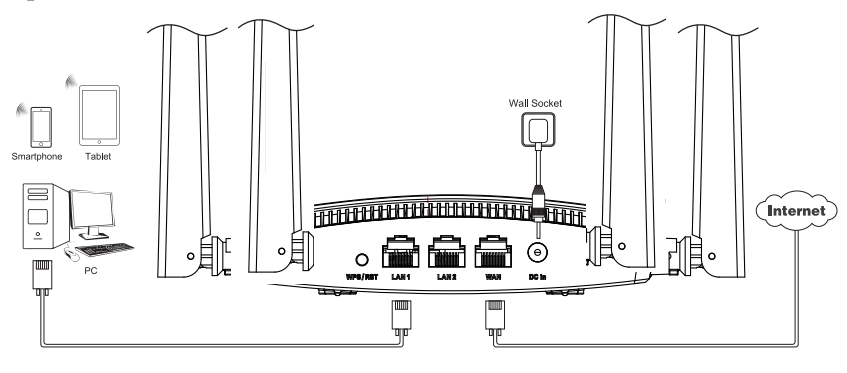

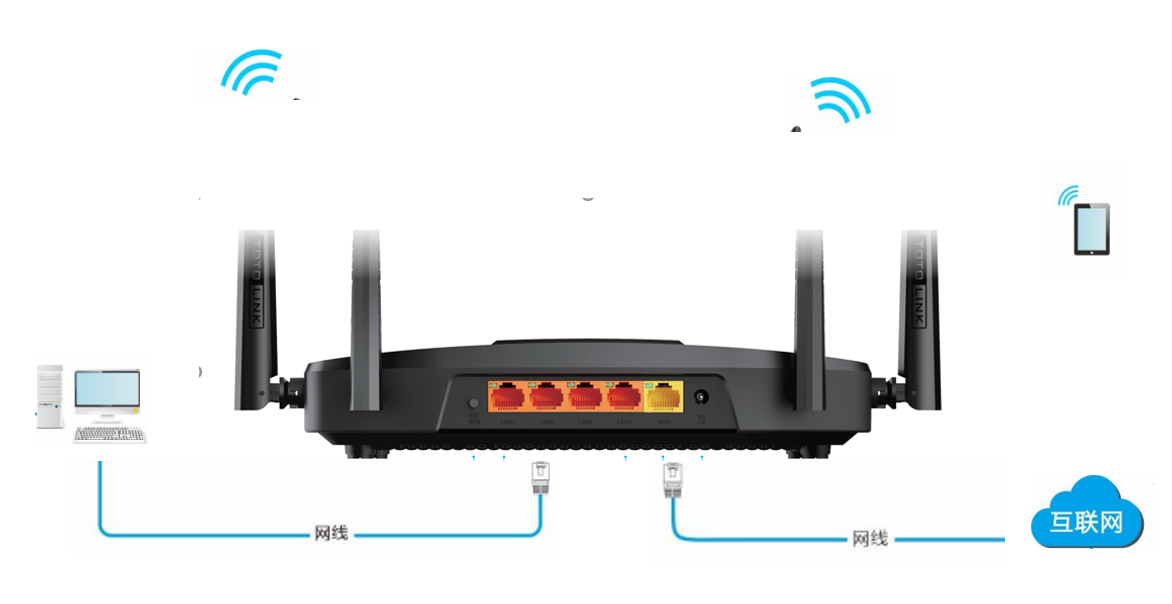

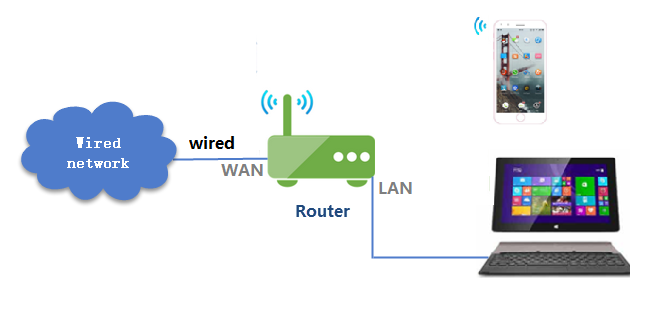

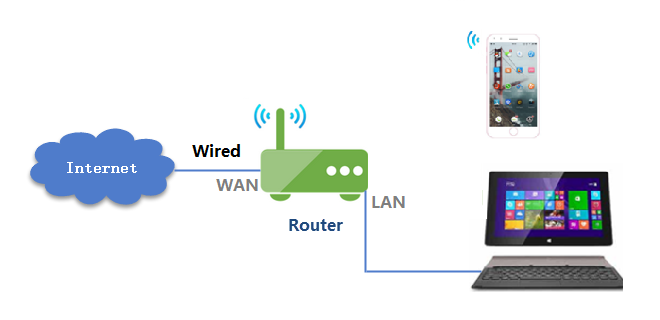

Connect the line according to the method shown in the figure below.

If you don’t have a PC, you can also use your mobile phone or tablet to connect to the router’  WiFi. The SSID is generally TOTOLINK_model, and the login address is itotolink.net or 192.168.0.1

STEP 2 :

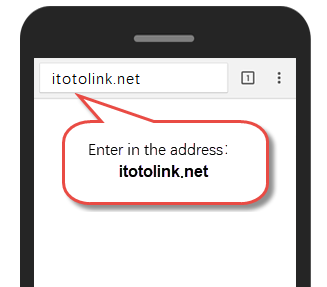

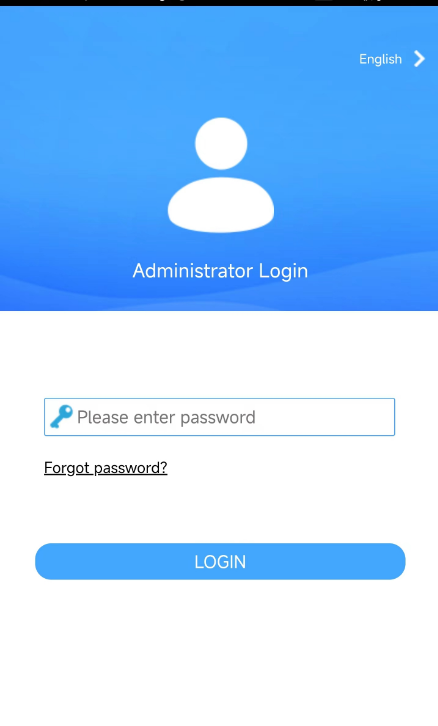

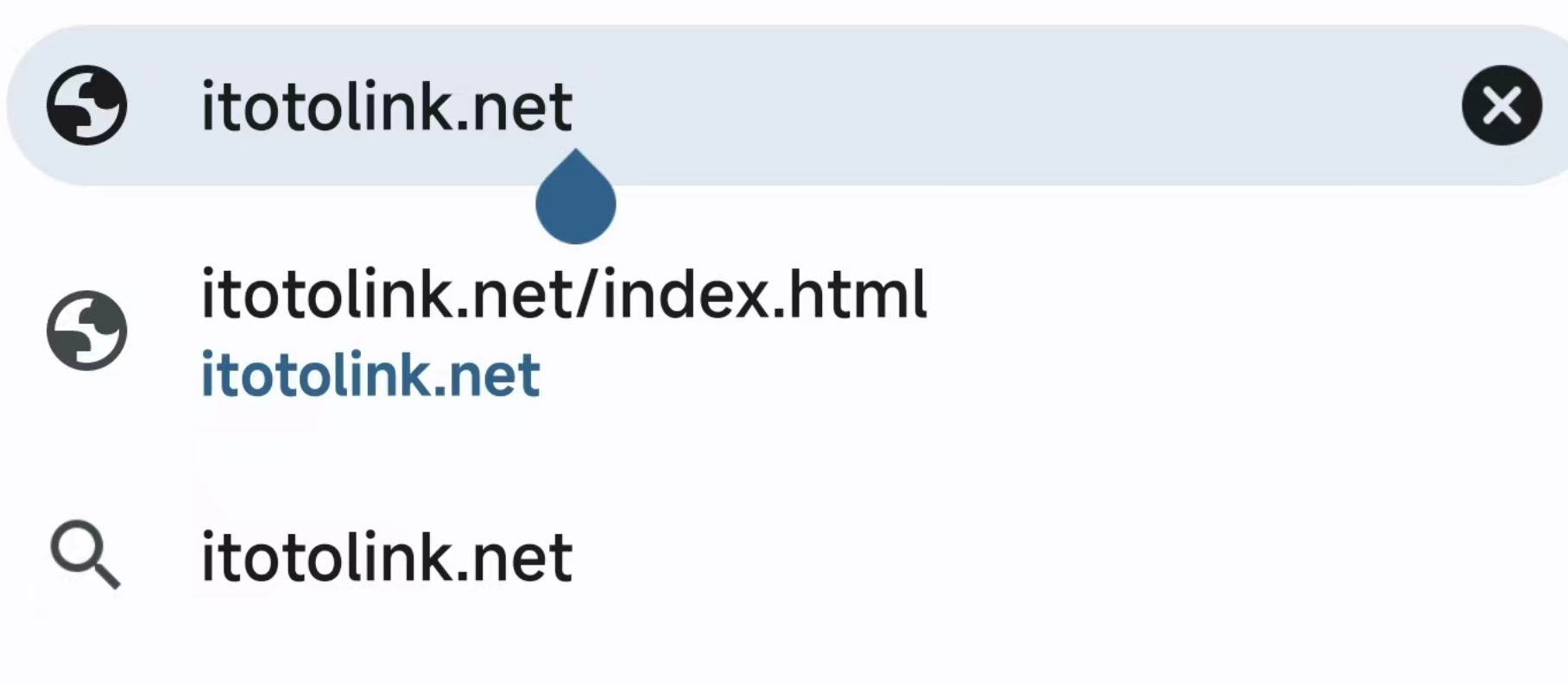

Log in to itotolink.net or 192.168.0.1 through a browser to enter the routing dashboard interface.

PC:

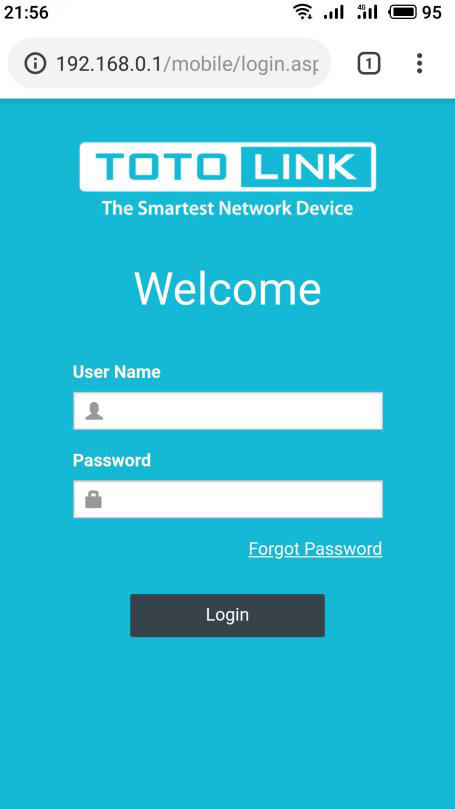

Mobile devices：

STEP 3 :

Through the PC interface as follows：

Through the phone UI as follows：

If you cannot successfully log in according to the above methods, or your account password cannot be logged in normally,

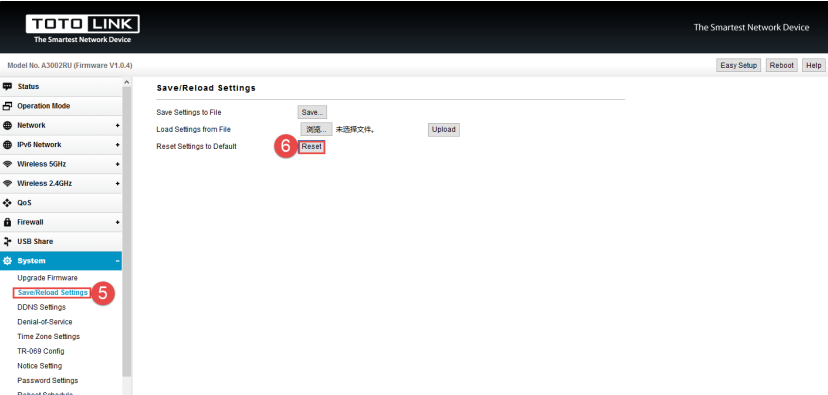

It is recommended that you restore the router to its original factory defaults and then operate again.

Application introduction:

This article will introduce the configuration of IPTV function and will guide you to configure this function correctly.

Note:

If you have already accessed to Internet and IPTV function normally by default, please ignore this article, just keep the default settings of IPTV page.

In this article, we will take N350RT as an example.

STEP-1: Log in the Web-configuration interface

Connect your computer to the router by cable or wireless, enter http://192.168.0.1

STEP-2: Introduce of IPTV setting page

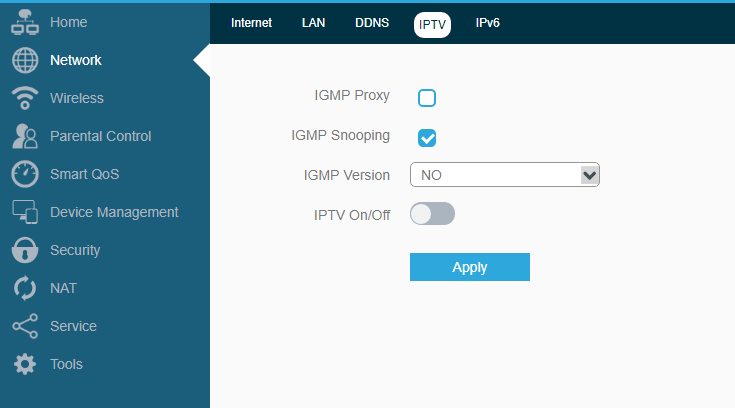

On the left menu, go to Network->IPTV Setting.

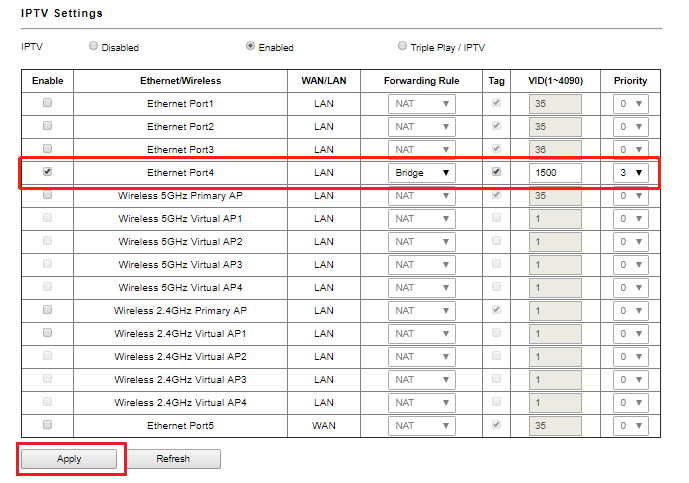

STEP-3: We can see the configuration webpage of the IPTV

Please keep the IGMP Proxy and IGMP version as default, unless your ISP told you to modify.

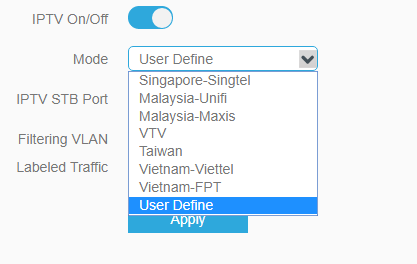

STEP-4: What’s the difference between different IPTV modes

There are many “mode” available in the IPTV setting page.These modes are designed for different ISPs. In other words, the mode which you need to choice is up to your ISP.

Obviously, Singapore-singtel, Malaysia-Unifi, Malaysia-Maxis, VTV and Taiwan are designed for specific ISPs. They doesn’t need you to type in VLAN information, we just use this mode when ISP doesn’t require VLAN settings.

User Define mode is used for some of the ISPs which require 802.1Q VLAN settings for IPTV service.

STEP-4: What’s the difference between different IPTV modes

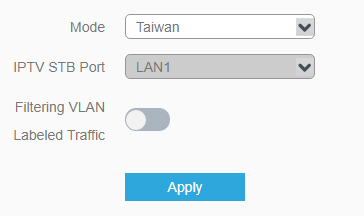

If your ISP is singtel, Unifi, Maxis, VTV or Taiwan. Just select Singapore-singtel, Malaysia-Unifi, Malaysia-Maxis, VTV or Taiwan mode. Then you need not to type in any information more if you choose these mode, just click “Apply” to complete the configuration.Please refer to the steps below to configure this mode.

Here I select Taiwan Mode, LAN1 for IPTV service as an example.

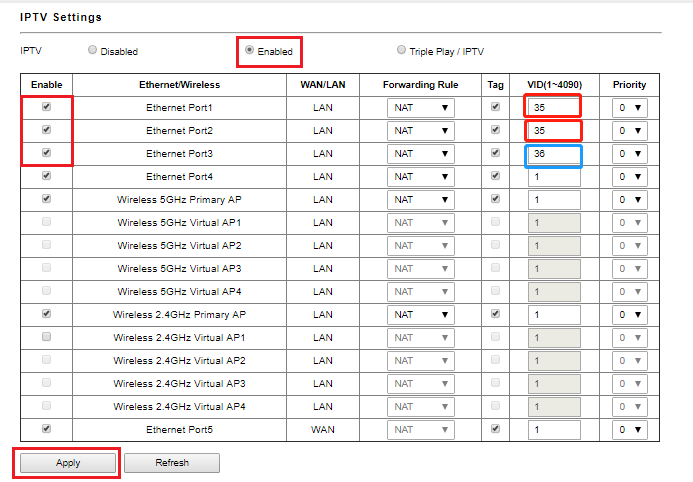

STEP-5: If your ISP is not in the list and needs VLAN settings

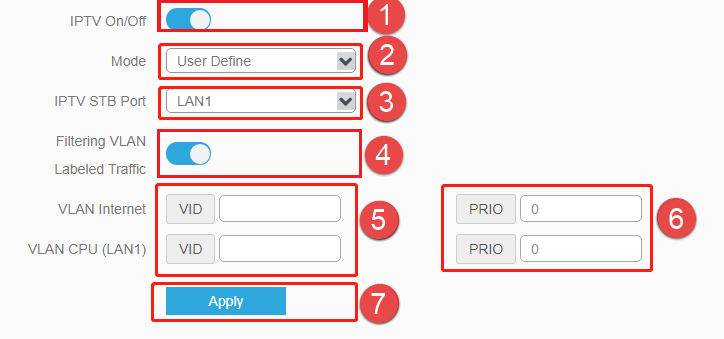

If your ISP is not in the list and needs VLAN settings. Please select Custom mode and type in the detailed parameters manually. You need check the information to your ISP at first. Please follow the steps below to configure.

① Select Enabled to open up IPTV function.

② Select User Define mode

③ Then set LAN ports for different services. For example, here I select LAN1 for IPTV service.

④ The 802.1Q Tag and IPTV Multicast VLAN ID are up to your ISP. (Normally the 802.1Q Tag should be checked).

⑤⑥ Type in the VLAN ID for different services, the VLAN ID should be provided by your ISP. For example, if my ISP has told me that they use VLAN 10 for Internet service, VLAN 20 for IP-Phone service and VLAN 30 for IPTV service. And the priority need not to configure.

⑦click “Apply” to complete the configuration.

Application introduction:

This articles Applies to wireless router that’s compatible with TOTOLINK App. This article will take A720R as an example.

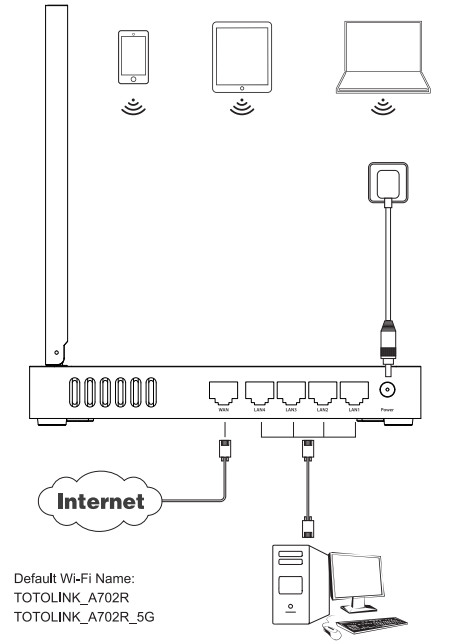

STEP-1: Follow the steps below to connect your router.

STEP-2:

Connect your smart phone to TOTOLINK Wi-Fi. The default wireless network name of TOTOLINK wireless router are printed on the bottom label.

STEP-3:

 Launch the Tether App on your phone.

STEP-4:

 Select your TOTOLINK wireless router from device list.Then Enter admin for the password and then click LOGIN.

STEP-5:

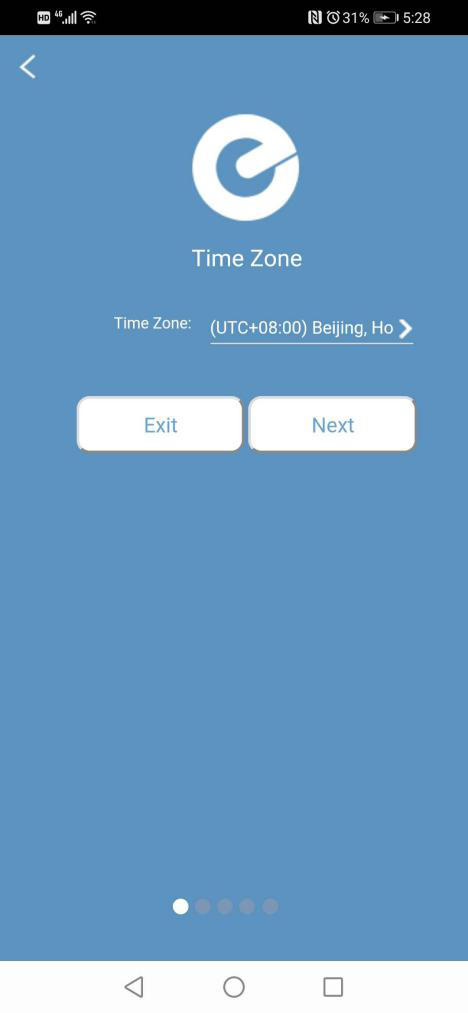

 Log in to Quick Setup.(Auto jump Quick Setup is only Applicable for the first connection setup)

STEP-6:

Quick Setup.

STEP-7:

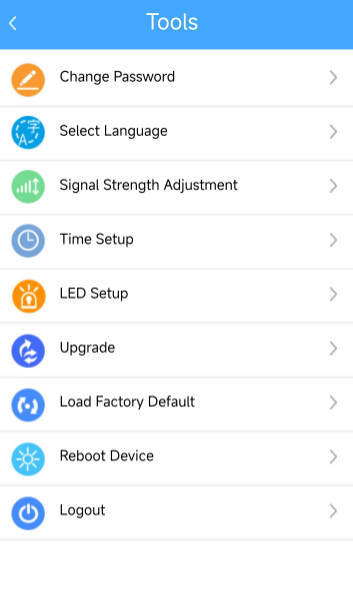

More features: Click Application or Tools.

STEP-8:

Binding router, remote management.

 Application introduction:

 This tutorial will show you how to configure TR069 feature on TOTOLINK Router devices.

STEP-1: Install router as the following diagram

The router WAN IP and TR069 server IP must be on the same network segment or can access each other; TR069 server needs to turn off the firewall and other functions.

STEP-2: Login router

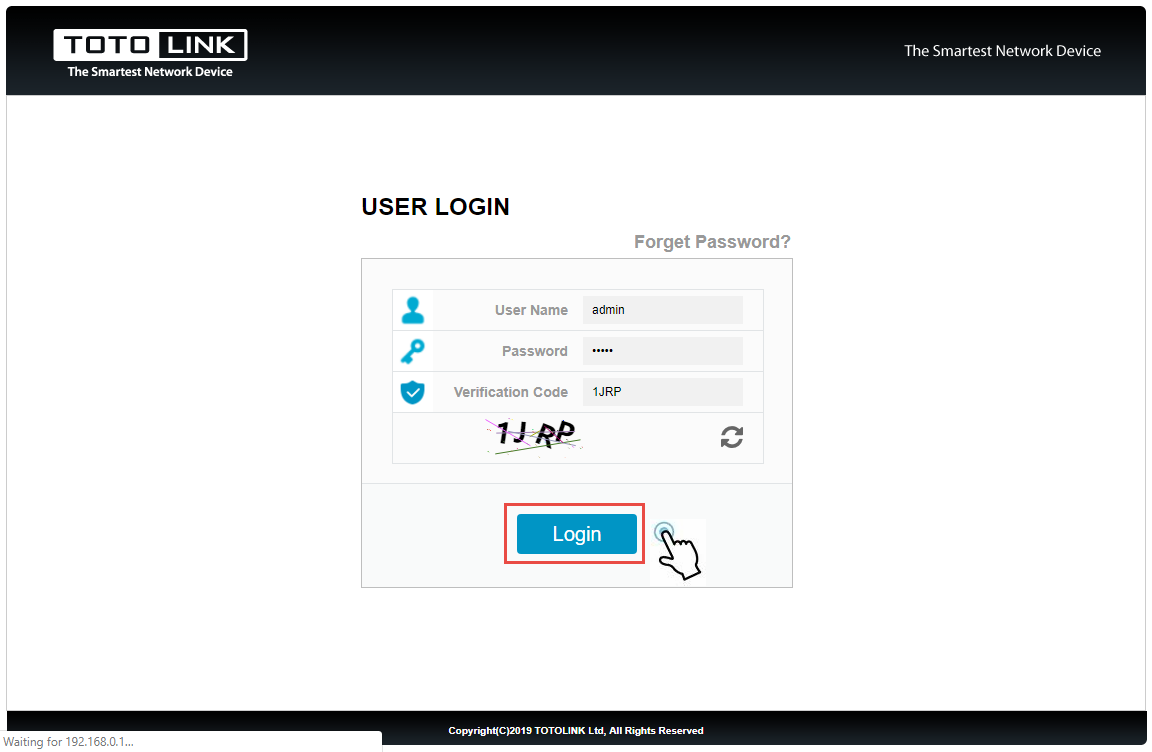

Access Login page (Default IP: 192.168.0.1) and then you need enter the Administrator information (Default ID and Password is admin).

STEP-3: WAN settings

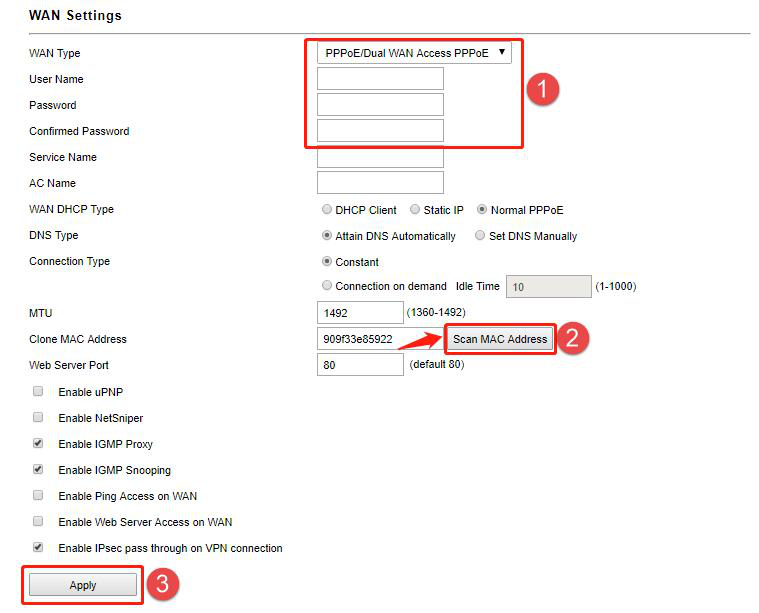

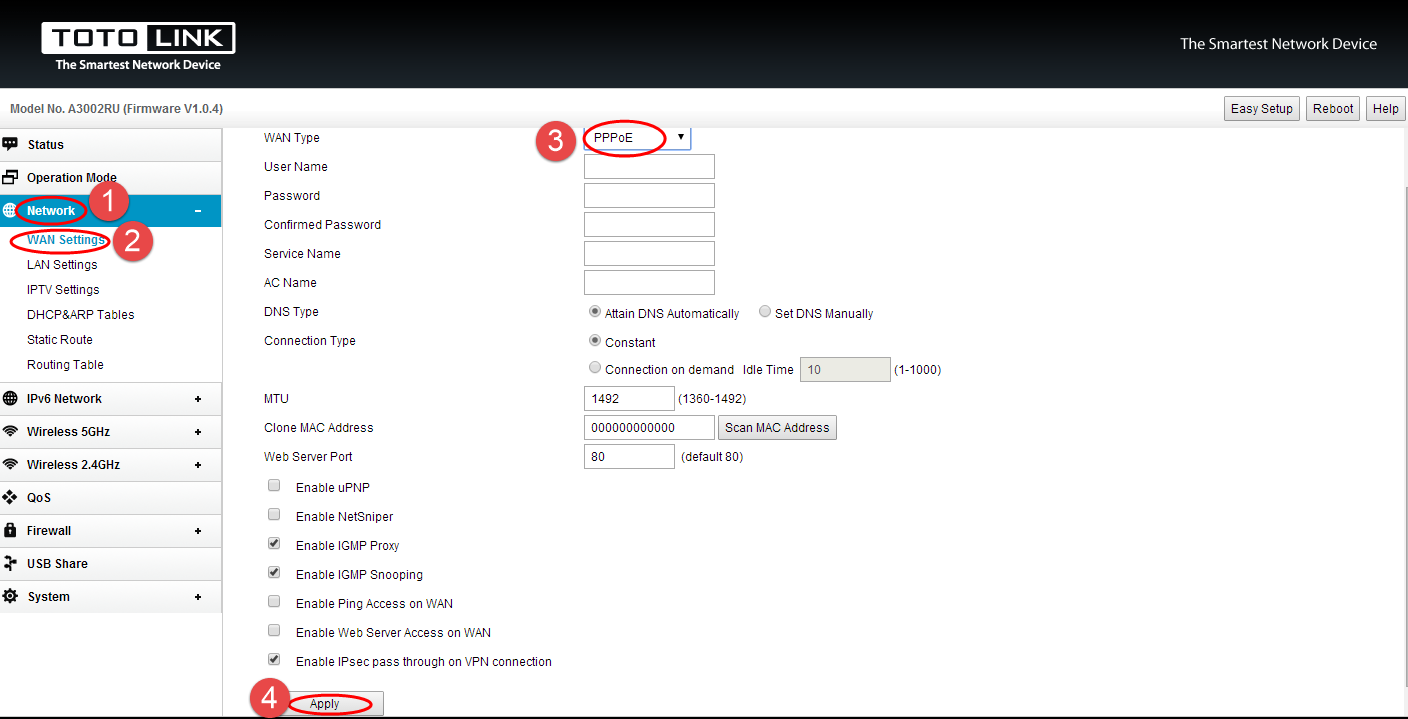

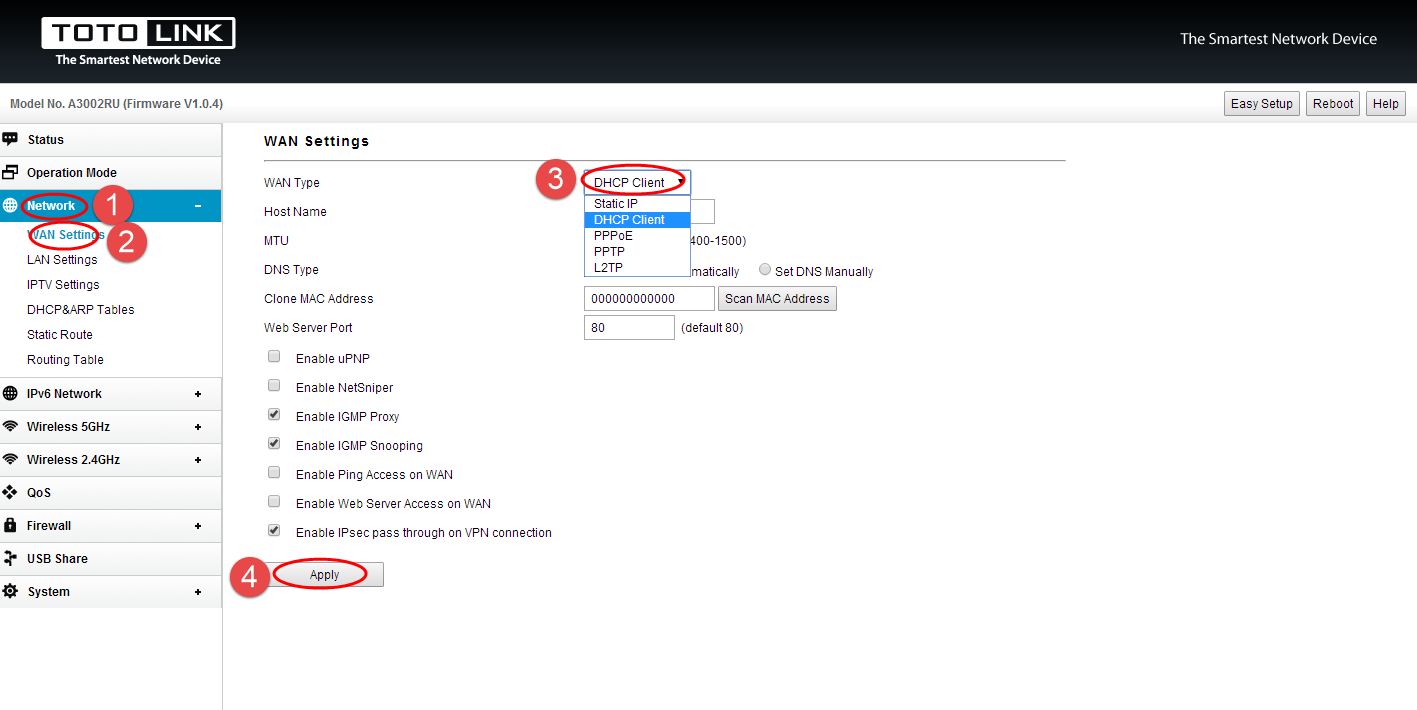

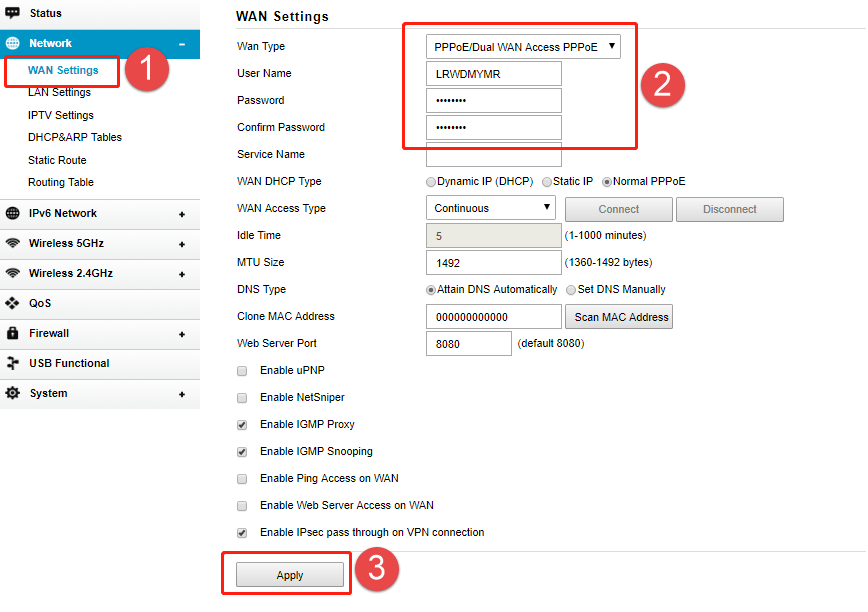

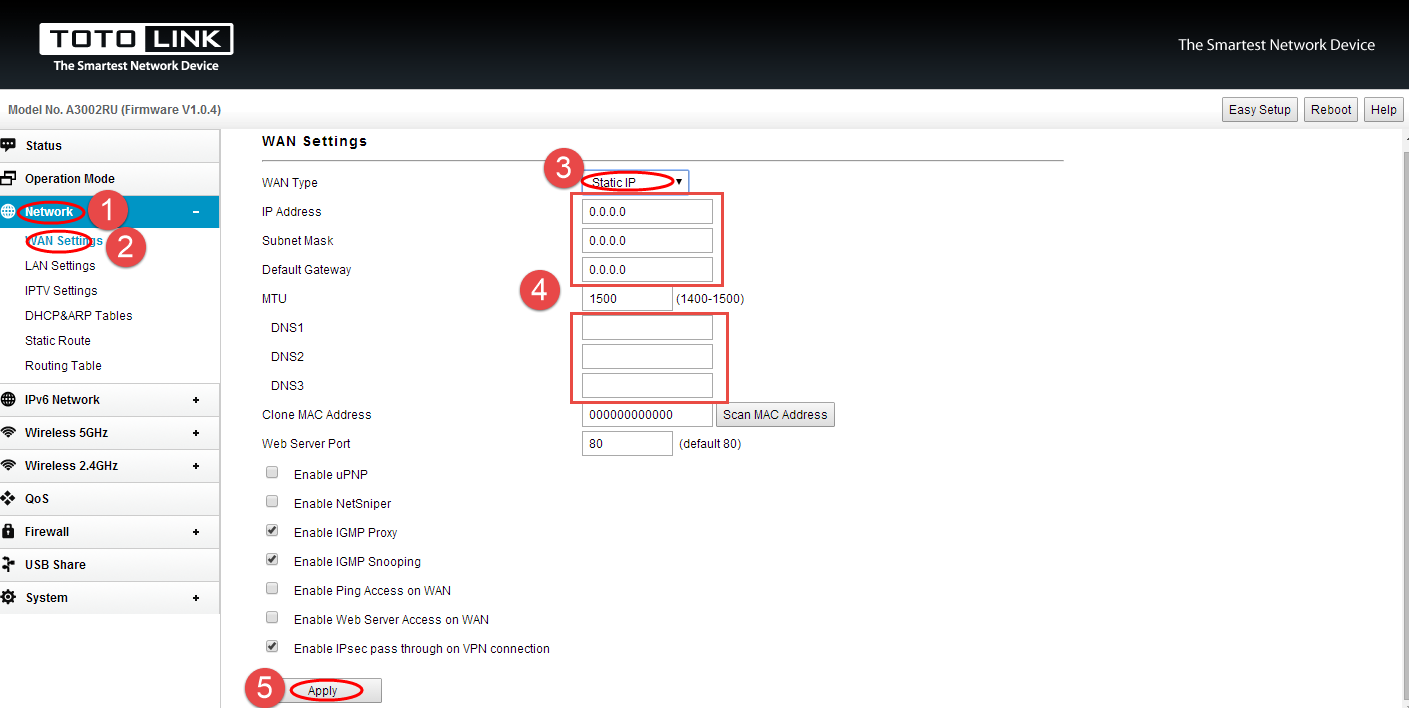

Go to the Advanced Setting page, setup the WAN information.

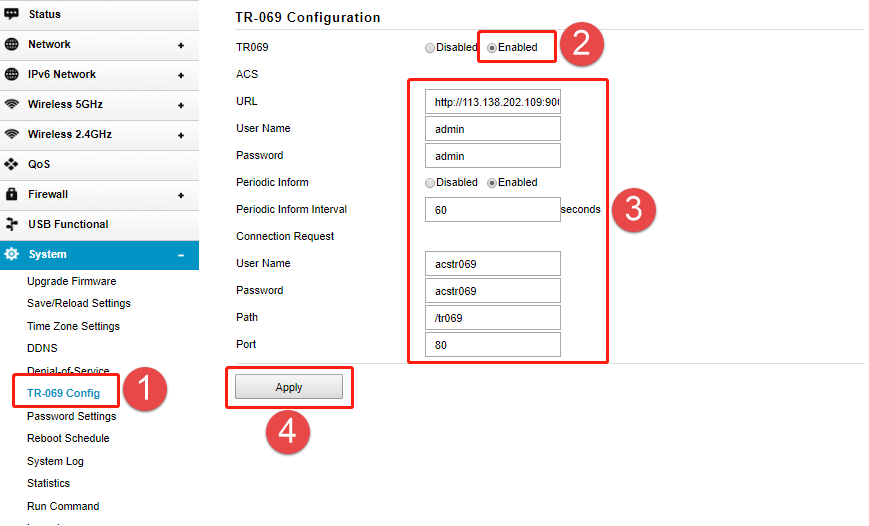

STEP-4: TR069 settings

Next, setup the TR069 information.

R069 – Connection Information

STEP-1:

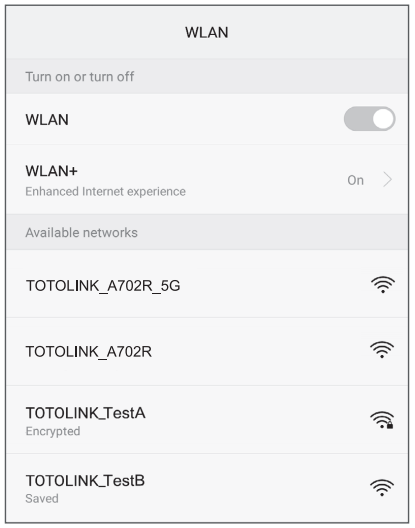

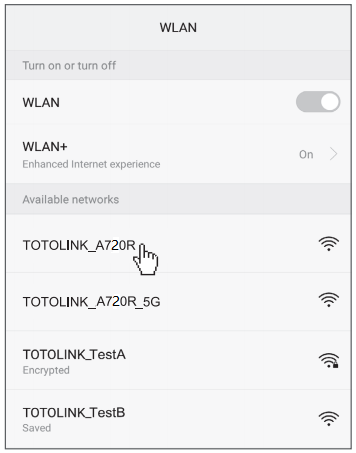

Find TOTOLINK_A702R or TOTOLINK_A702R_5G on the WLAN list of your Phone, and choose to connect. Then any Web browser on your Phone and enter http://itotolink.net on the address bar.

STEP-2:

Input admin for both User Name and Password on the coming page, then click Login.

STEP-3:

Click Quick Setup on the coming page.

STEP-4:

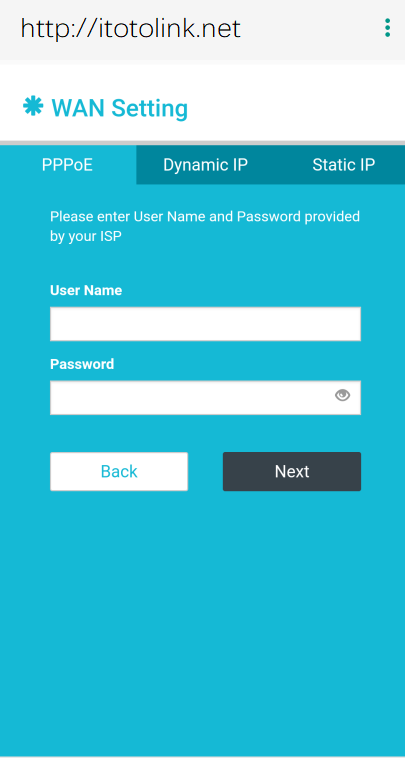

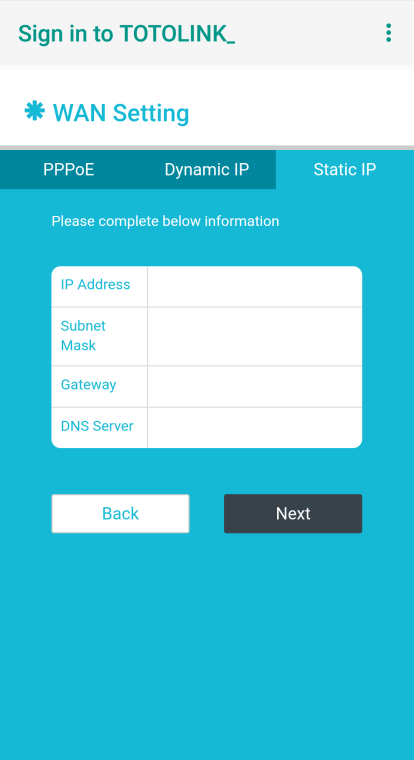

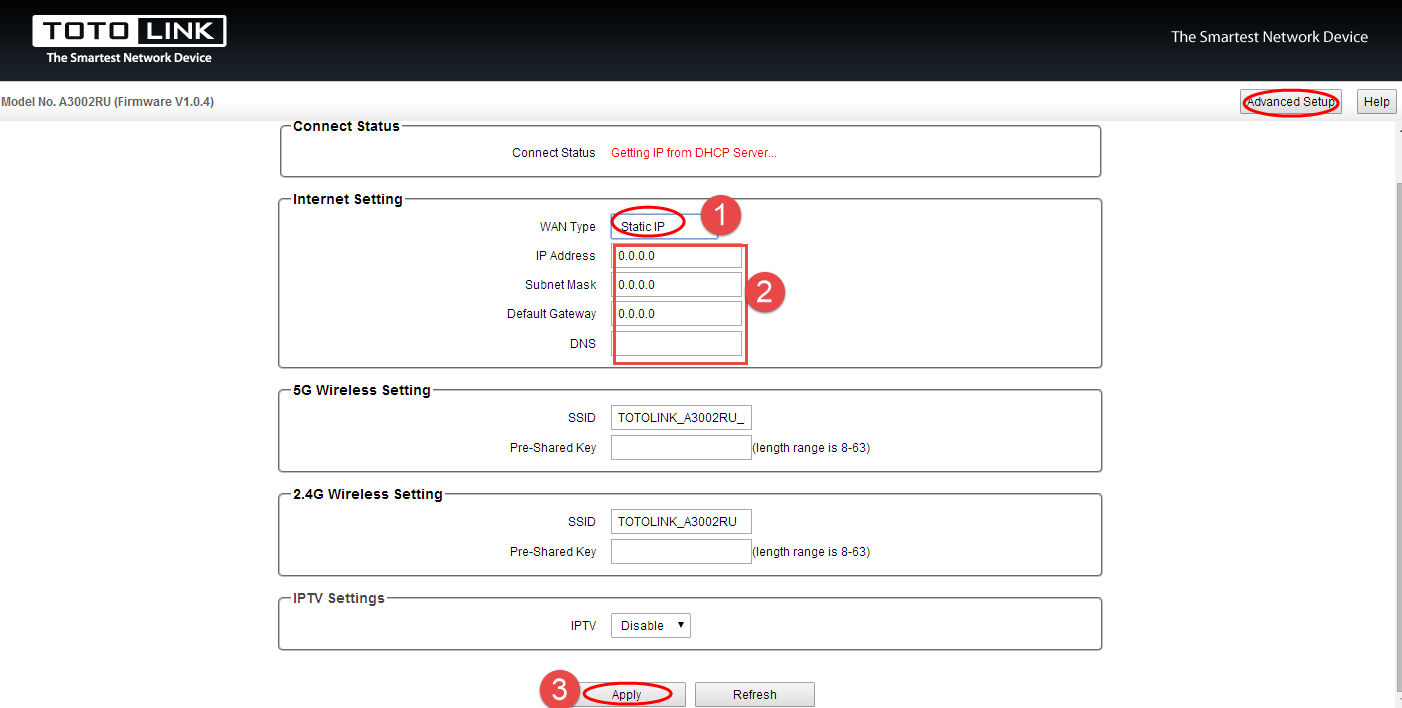

Internet Setting. Choose a suitable WAN Connection type from the list, and fill in the information required.

STEP-5:

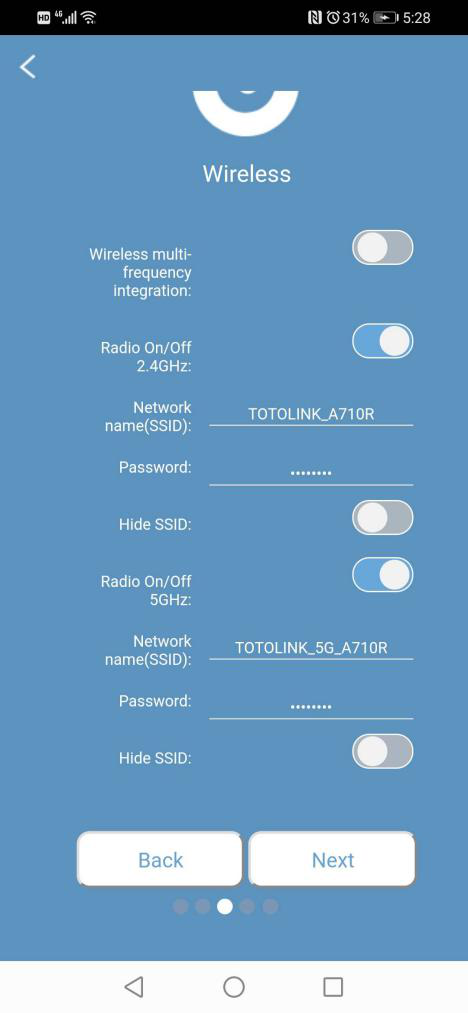

Wireless Setting. Create passwords for 2.4G and 5G Wi-Fi (Here users could also revise the default Wi-Fi name) and then click Next.

STEP-6:

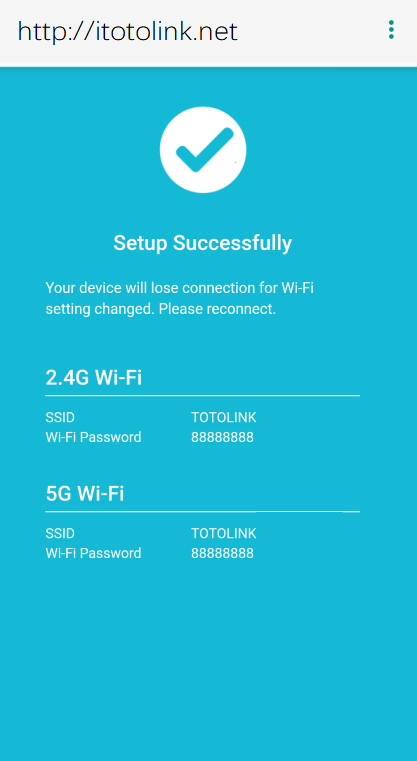

It takes several seconds to save the settings and then your router will restart automatically. This time your Phone will be disconnected from the router. Please back to the WLAN list of your phone to choose the new Wi-Fi name and input the correct password. Now, you could enjoy the Wi-Fi.

STEP-1:

Connect your computer to the router by cable or wireless. Then run any Web browser and enter http://itotolink.net in the address bar.

STEP-2:

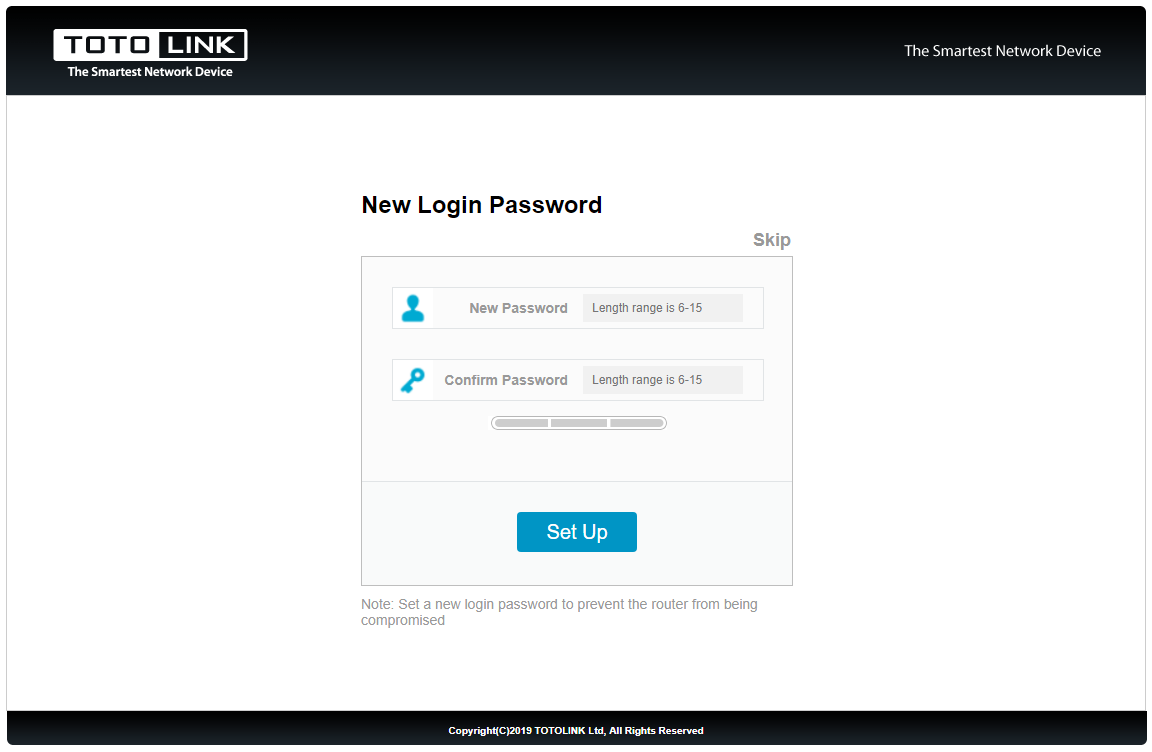

Set a new login password for the device, it is recommended to set the password with alphanumeric characters and then press Install.

STEP-3:

Enter admin for User name, then enter new password in step 2 or admin, type the verification code then press LOGIN.

STEP-4:

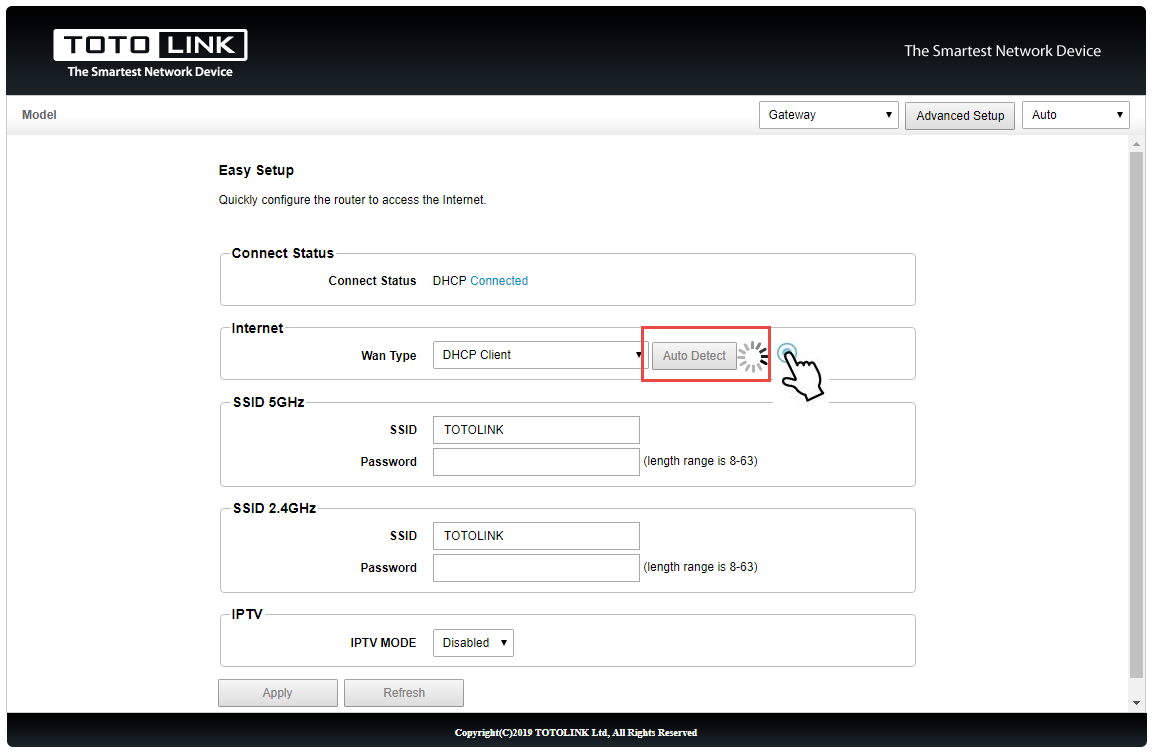

Click on "Auto Detect" to detect the Wan Type in your network.

STEP-5:

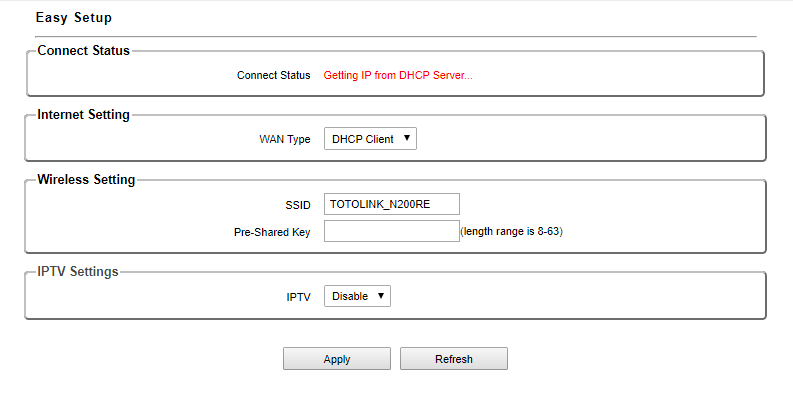

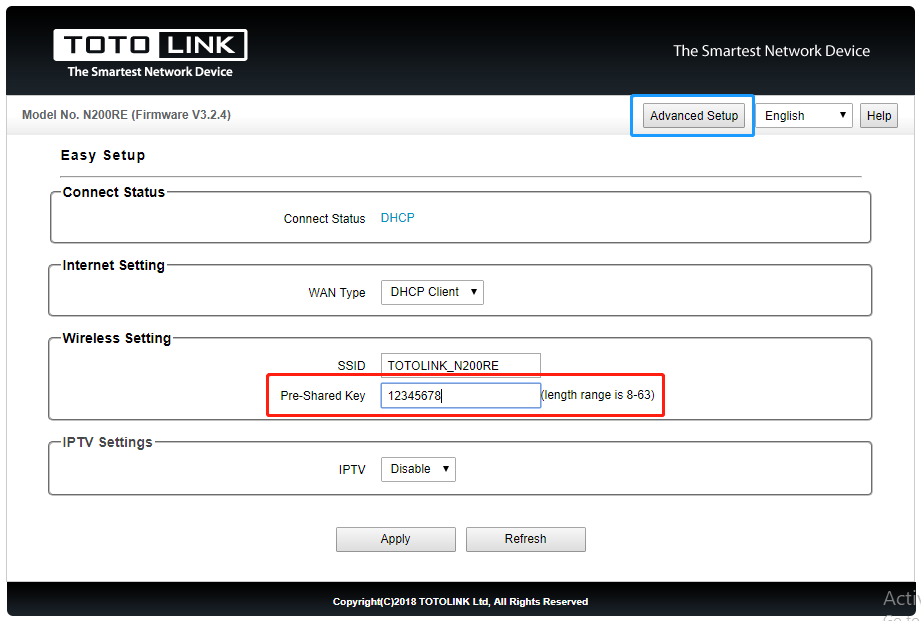

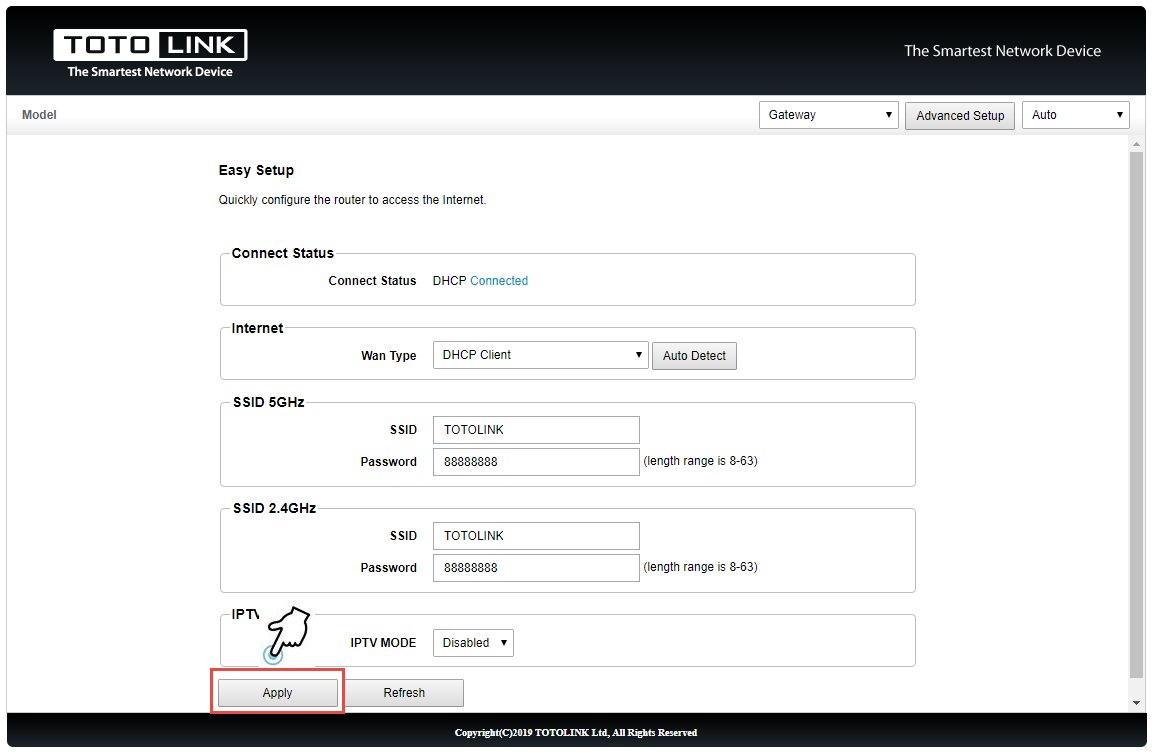

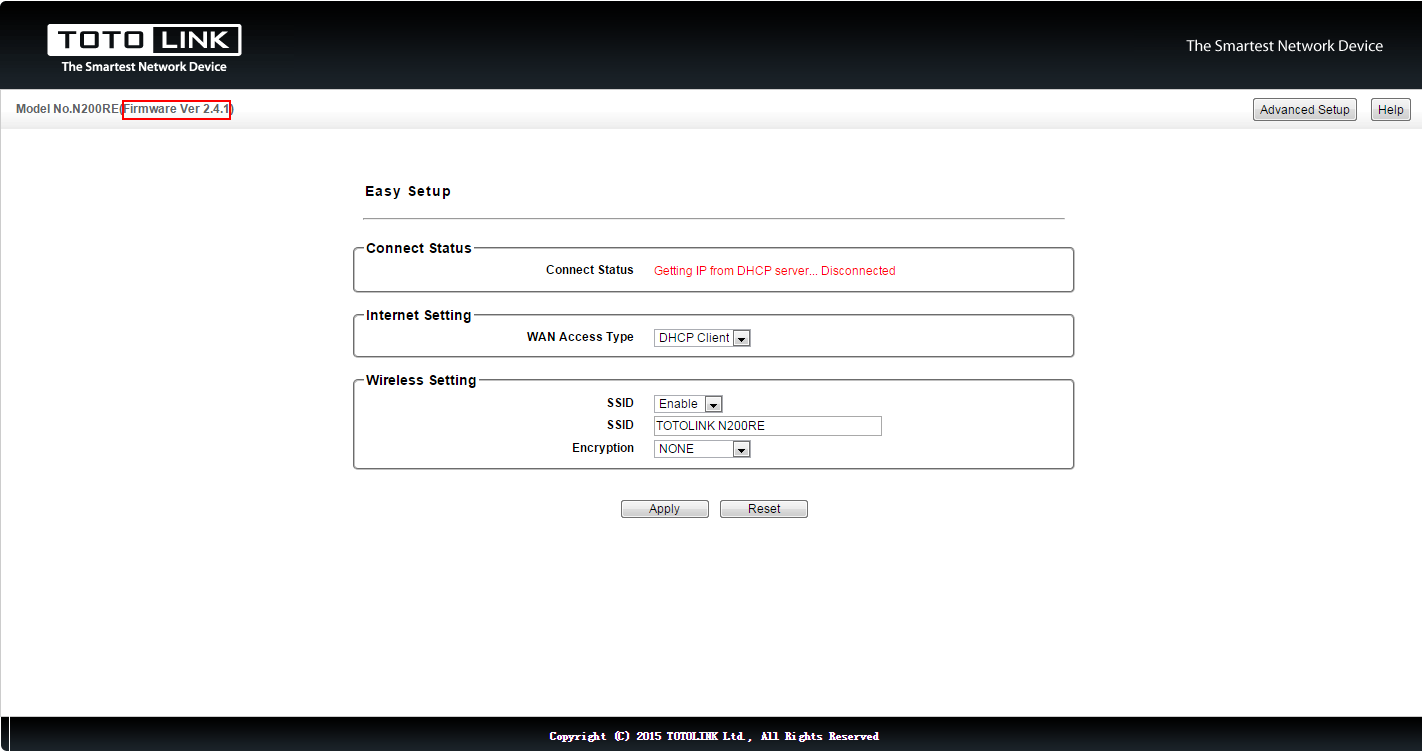

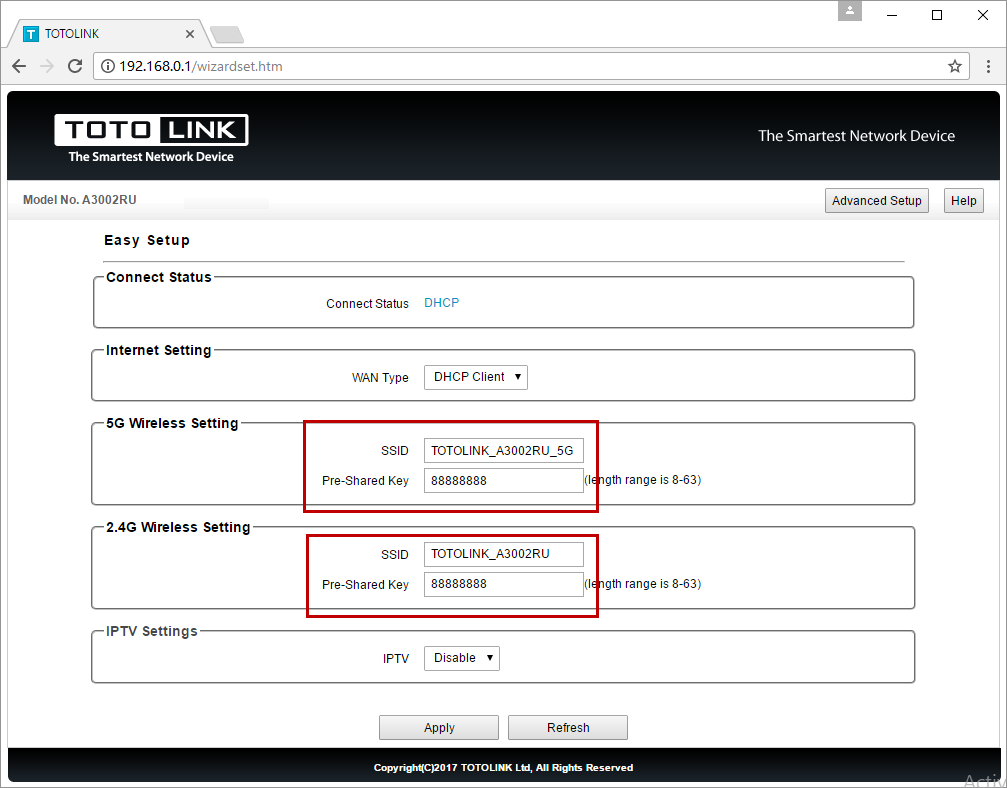

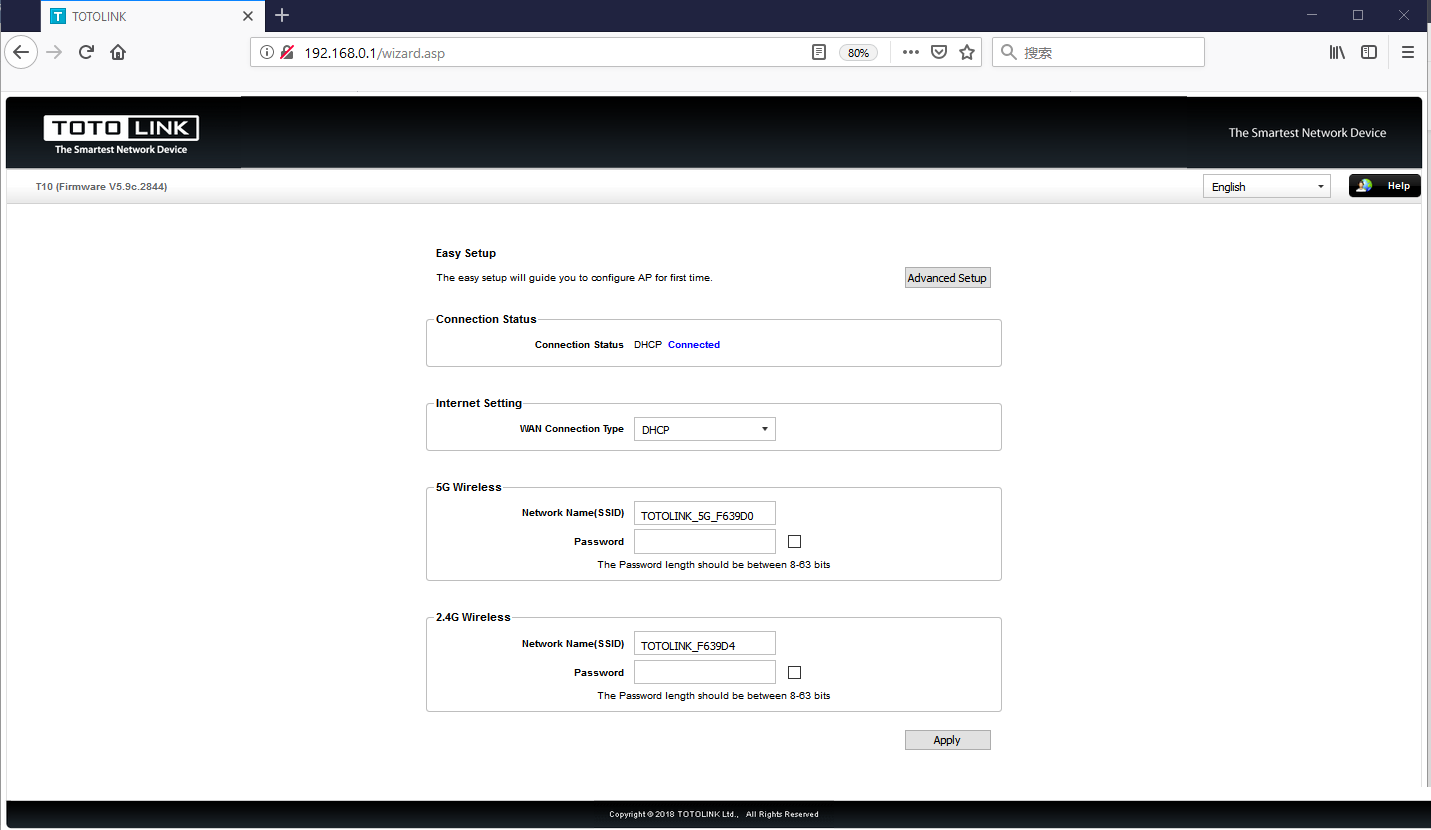

Now you can see the Easy Setup page. All basic settings could be done here, including Internet Settings and Wireless Settings.

STEP-1: Connect your computer

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:

The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

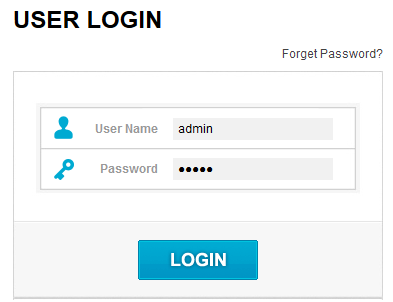

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

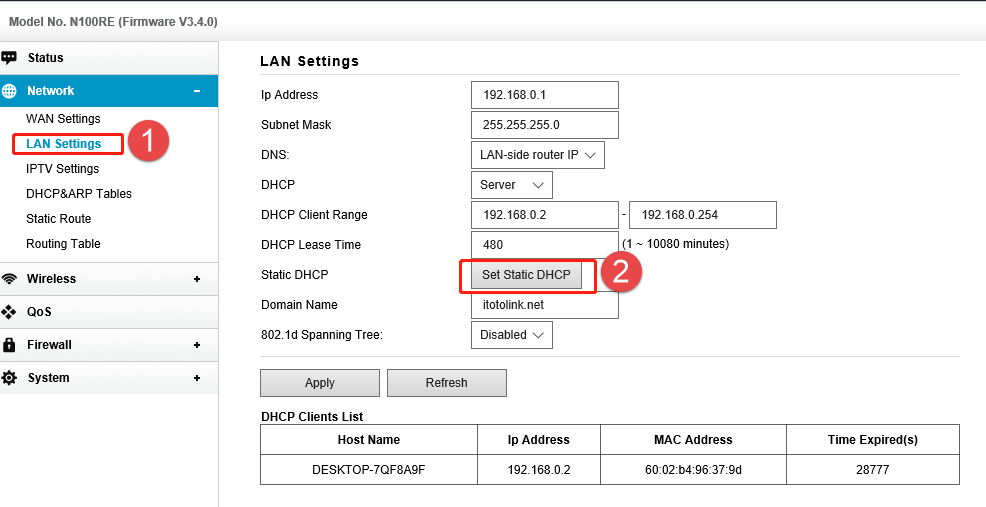

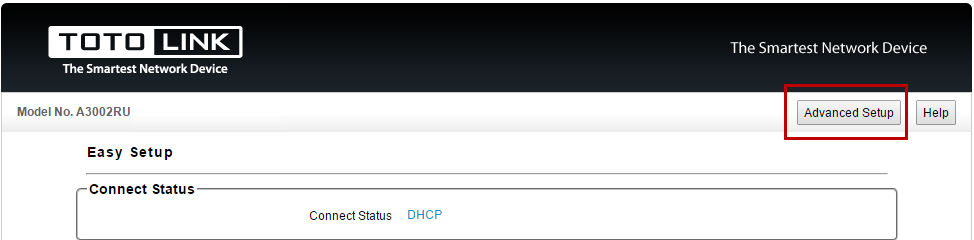

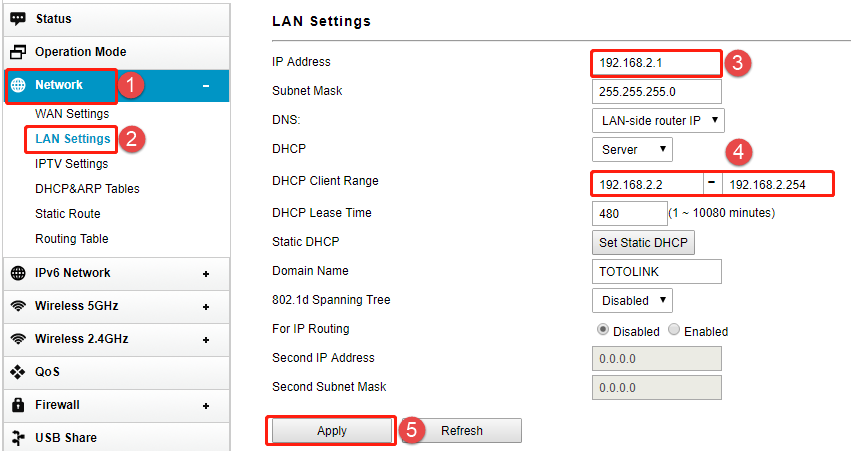

Enter advanced settings to select the LAN settings in Network,click the Set Static DHCP.

STEP-4:

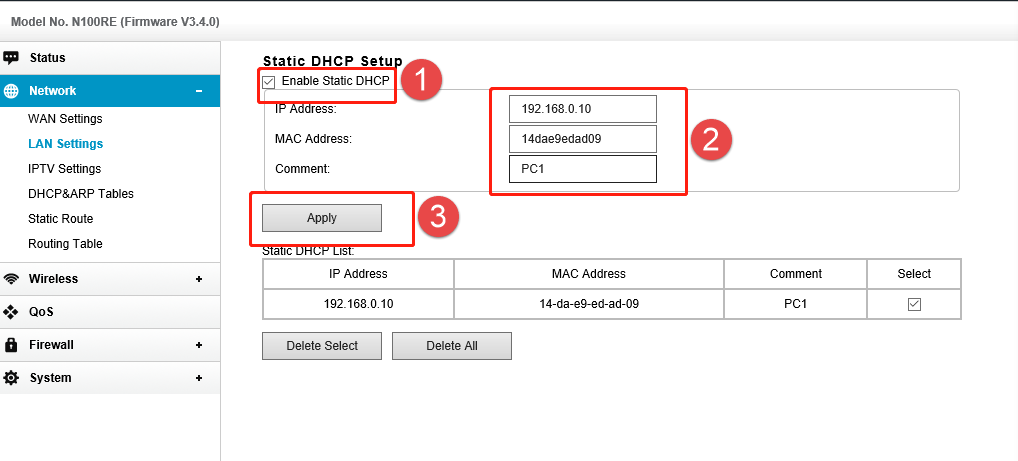

Checklist the Enable Static DHCP to open the setting,input IP Address ,MAC Address and Comment.After click Apply ,we can see the information in the static DHCP List.

Application introduction:

This article describes how to quickly make a wireless connection through the router's WPS button.

Diagram

Set up steps

STEP-1:

* Please make sure your router has WPS button before setting.

* Please make sure your wireless client supports WPS functionality before setting.

STEP-2:

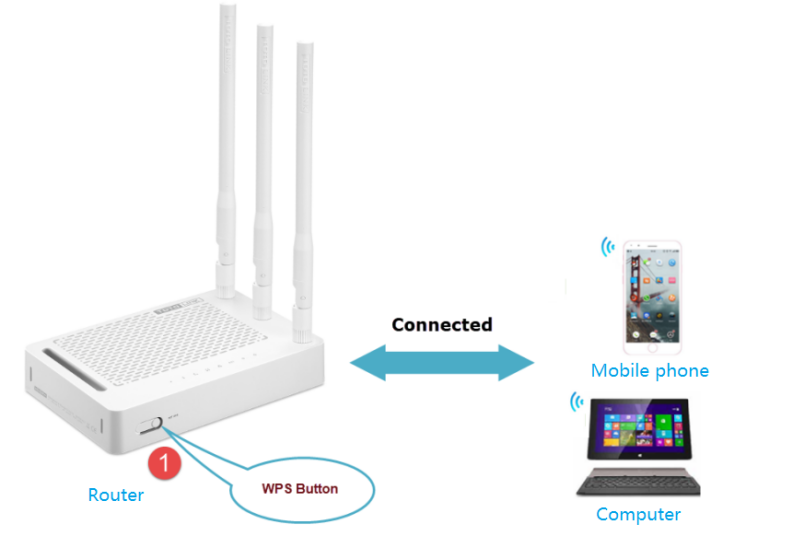

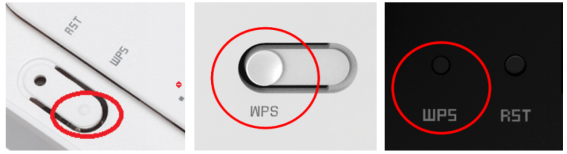

Press WPS button on the router for 1s, WPS enabled. There are two types of wireless router WPS buttons: RST/WPS button and WPS button. As shown below.

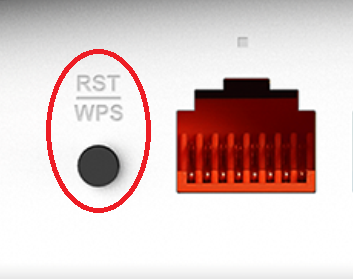

2-1. RST/WPS button：

2-2. WPS button：

Note: If router is a RST/WPS button, no more than 5s, router will be reset to factory defaults if you press it for more than 5s.

STEP-3:

After pressing the WPS button, use wireless client to connect to the router WIFI signal. Using Computer and Mobile phone wireless connection as an example. As shown below.

3-1. Computer wireless connection:

3-2. Mobile phone  wireless connection:

Set up steps

STEP-1: Connect your computer

Connect to the router's LAN port with a network cable from a computer network port (or to search for and connect the  router's wireless signal).

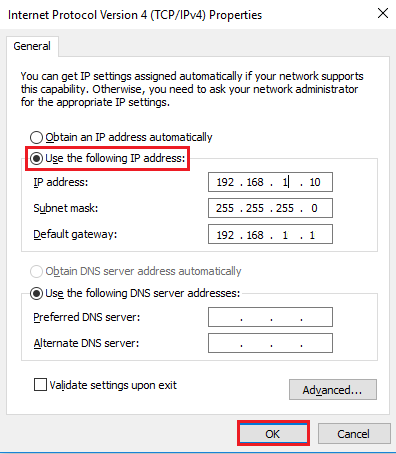

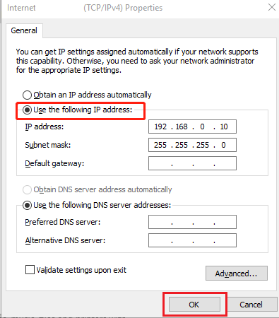

STEP-2: Assigned manually IP Address

2-1. If the router’s LAN IP address is 192.168.1.1, please type in IP address 192.168.1.x （“x” range from 2 to 254）, the Subnet Mask is 255.255.255.0 and Gateway is 192.168.1.1.

2-2. If the router’s LAN IP address is 192.168.0.1, please type in IP address 192.168.0.x （“x” range from 2 to 254）, the Subnet Mask is 255.255.255.0 and Gateway is 192.168.0.1.

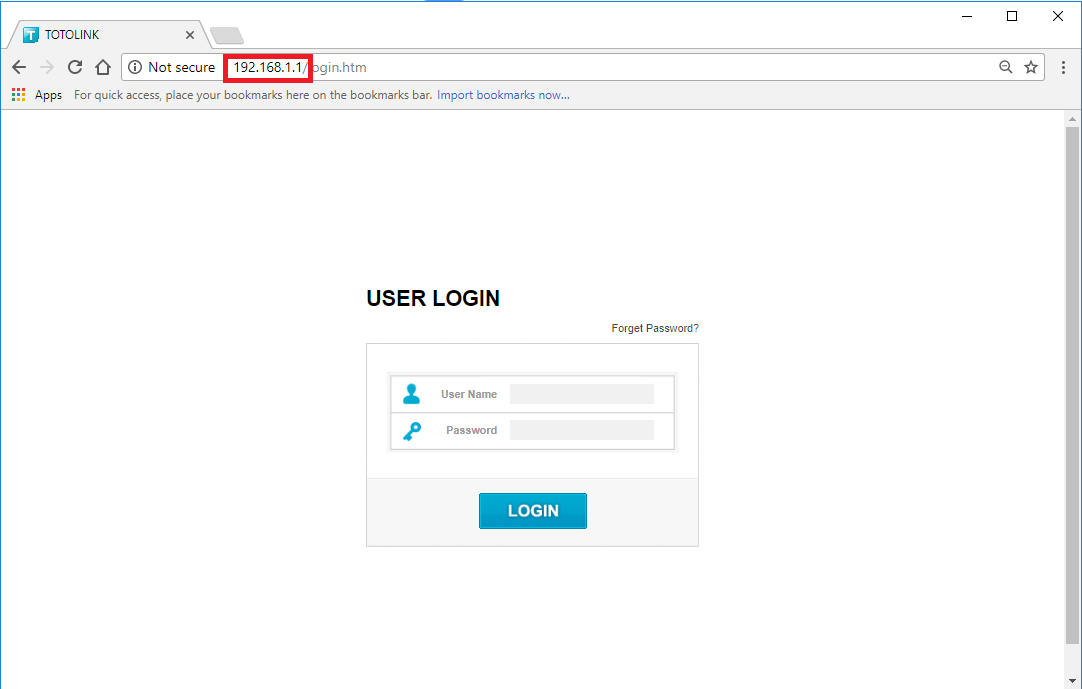

STEP-3: Login to the TOTOLINK router in your browser. Take 192.168.0.1 as an example.

STEP-4: After setting up the router successfully, please select Obtain an IP address automatically and Obtain DNS Server address automatically.

Note: Your terminal device must choose to obtain an IP address automatically to access the network.

Application introduction:

This article will introduce the difference between Router Mode, Repeater mode, AP mode, and WISP Mode.

Set up steps

STEP-1: Router Mode(Gateway mode)

Router Mode, the device is supposed to connect to the internet via ADSL/Cable modem. The WAN type can be setup on WAN page, including PPPOE, DHCP client, Static IP.

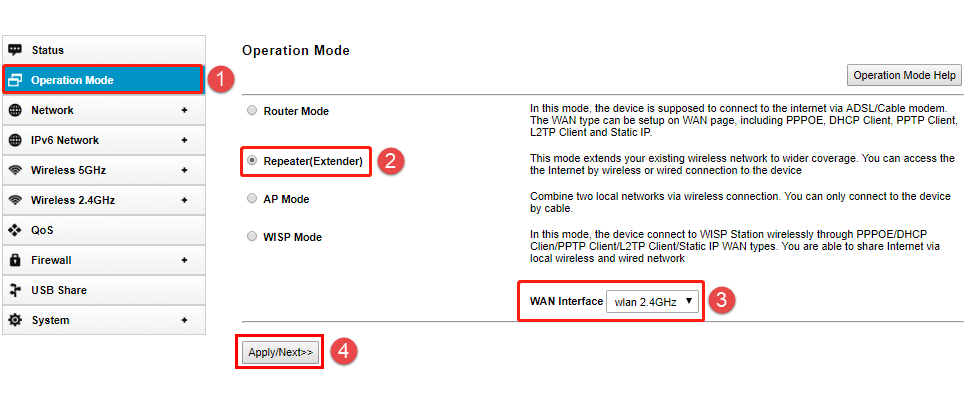

STEP-2: Repeater mode

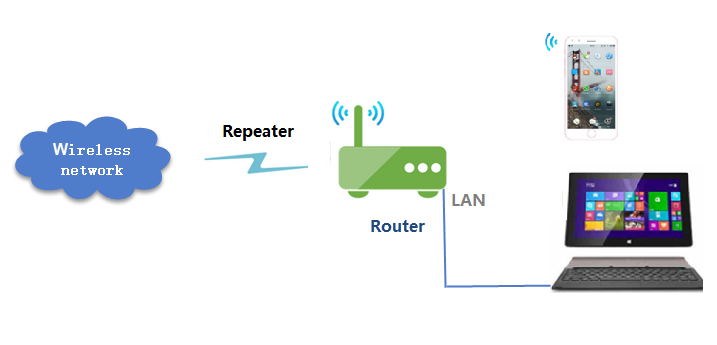

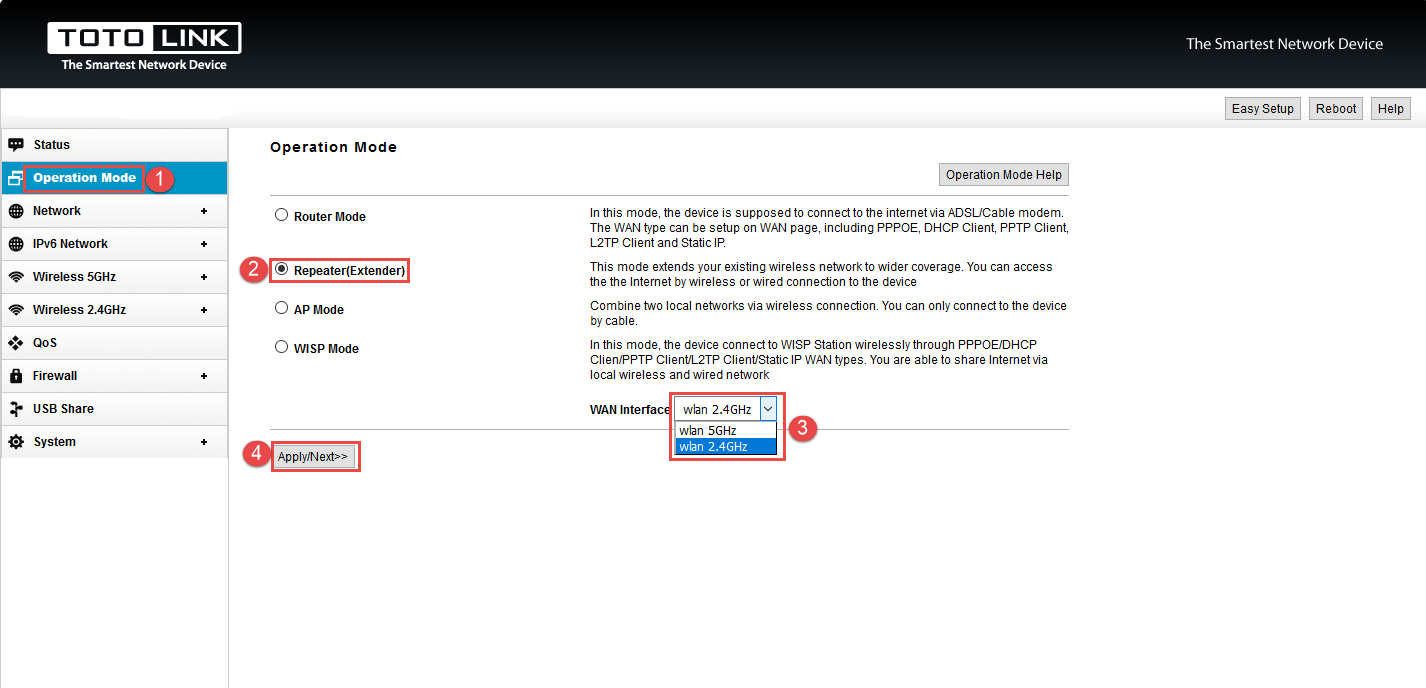

Repeater Mode, you can extend the superior Wi-Fi signal by Repeater setting function under the Wireless column to increase the coverage of the wireless signal.

STEP-3: AP mode(Bridge mode)

AP mode, the router acts as a wireless switch, you can transfer the superior's AP/Router wired signal into wireless signal.

STEP-4: WISP Mode

WISP Mode, all ethernet ports are bridged together and the wireless client will connect to ISP access point. The NAT is enabled and PCs in ethernet ports share the same IP to ISP through wireless LAN.

FAQ Common problem

Q1: Can I log in to the TOTOLINK ID after setting the AP mode/Repeater mode?

A: TOTOLINK ID cannot be logged in after setting AP mode/Repeater mode.

Q2: How to enter the router management interface in AP mode/Repeater mode?

A: Refer to FAQ#How to login to router by manually configuring IP

Application introduction:

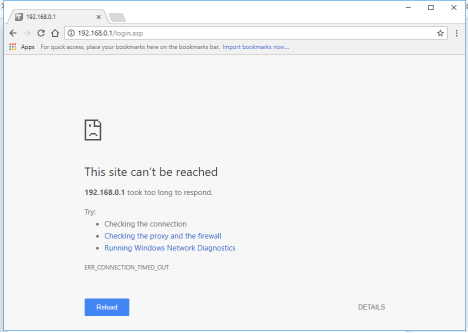

After entering the management address of the router in the address bar of Chrome browser, the page cannot be displayed after entering the management password, as shown below.

Note:

Ensure that the login IP address you typed in the address bar is correct, as well as the login username and password.

Method One: login via PC

Set up steps

STEP-1: Change browser and clear browser cache

Try changing old version (before 72.0.3626.96) of Chrome browser or try other browser, such as Firefox, Internet Explorer, etc., and clear your browser cache.

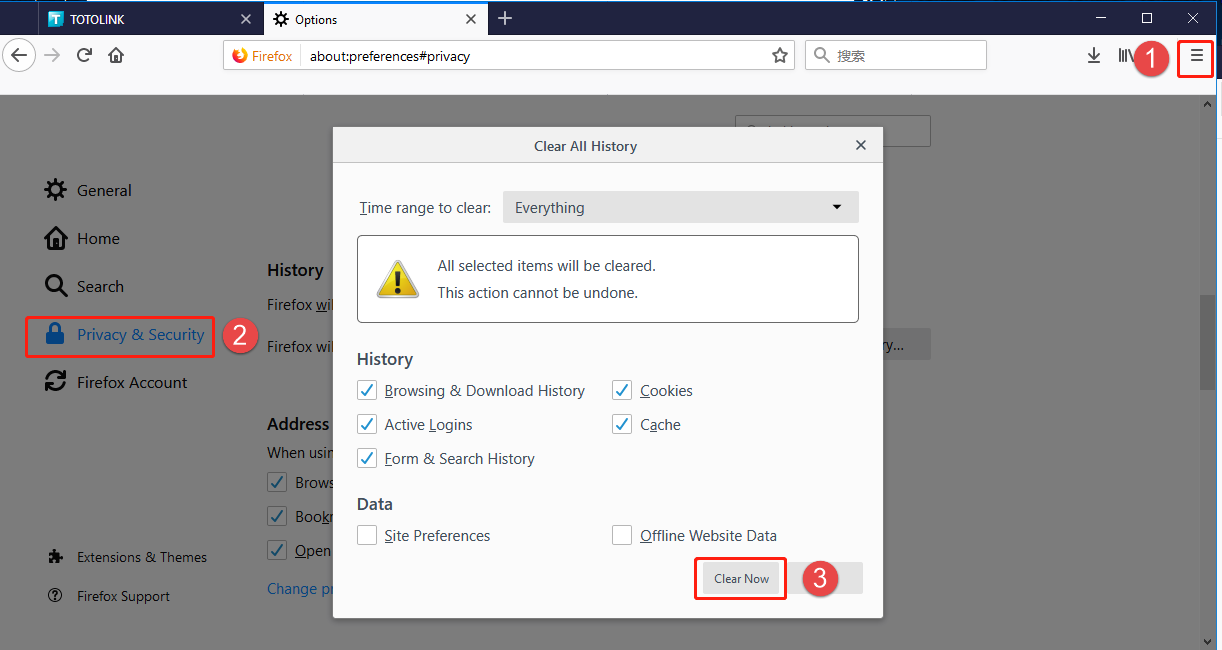

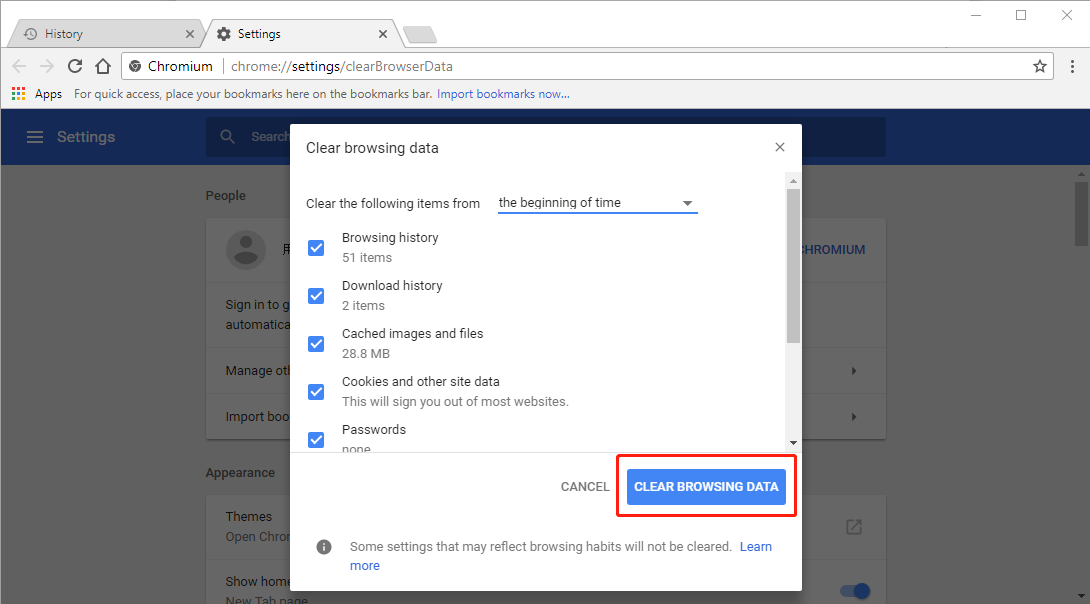

Delete cookies on the web browser. Here we take Firefox for example.

Note: In general, the browser enters the management address of the router and error pops up. Please use this method first.

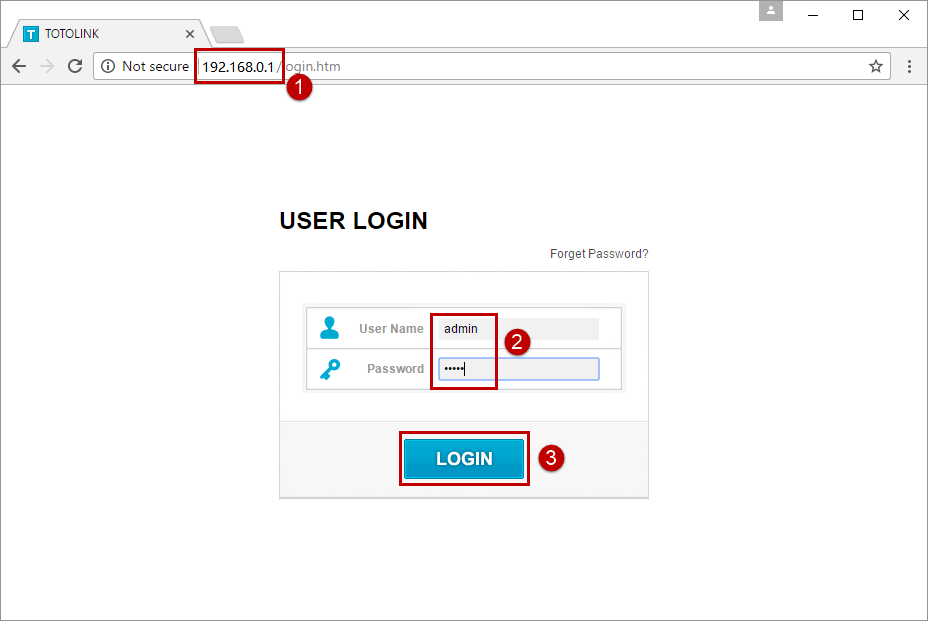

STEP-2:Enter 192.168.0.1 into the address bar of your browser. Log in the settings interface.

Note:

The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

Method Two: login via tablet/Cellphone

STEP-1: Change browser and clear browser cache

Try other browser, such as Firefox, Opera, etc., and clear your browser cache.

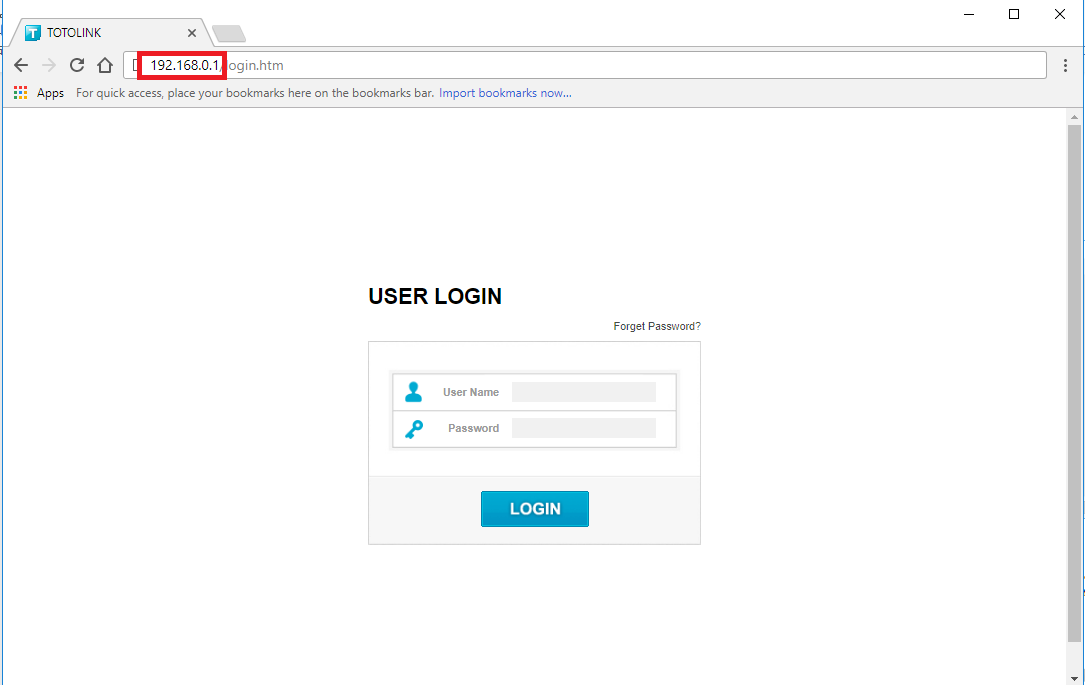

STEP-2: Enter 192.168.0.1 into the address bar of your browser. Log in the settings interface.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

It is suitable for: N100RE, N150RH, N150RT, N151RT, N200RE, N210RE, N300RT, N301RT , N300RH, N302R Plus, A702R, A850R, A3002RU

Application introduction:

By port forwarding, the data for Internet applications can pass through the firewall of the router or gateway. This article will show you how to forward ports on your router, take N100RE as an example.

Set up steps

STEP-1:

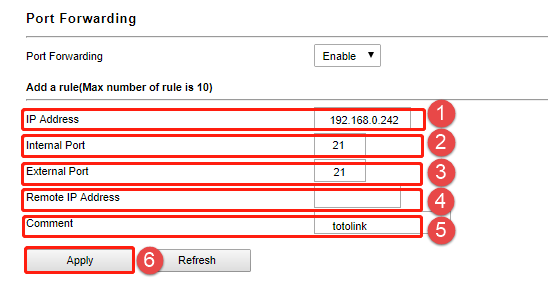

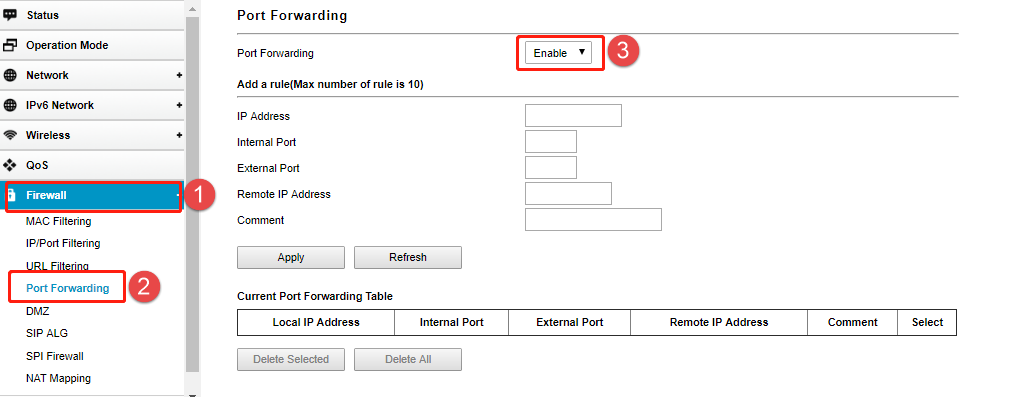

In the left menu of the web interface, click Firewall ->Port Forwarding ->Enable.

STEP-2:

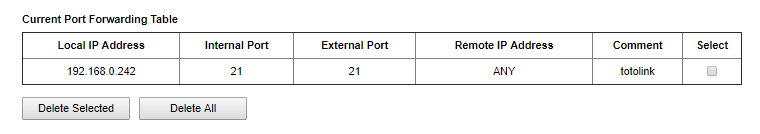

Choose the Rule Type from the drop-down list, and then fill in the blank as below, and then click Apply.

--IP Address: IP address of the server

--Internal Port: Actual port of the server

--External Portnternal Port: Port to access the server

--Remote IP Address: Suggested blank

--Comment: Set a name for rule (e.g. totolink)

STEP-3:

Ensure that the port successfully added to the Current Port Forwarding List.

The router's port forwarding settings are complete

Here with FTP server as an example (WIN10), check that the port forwarding is successfully.

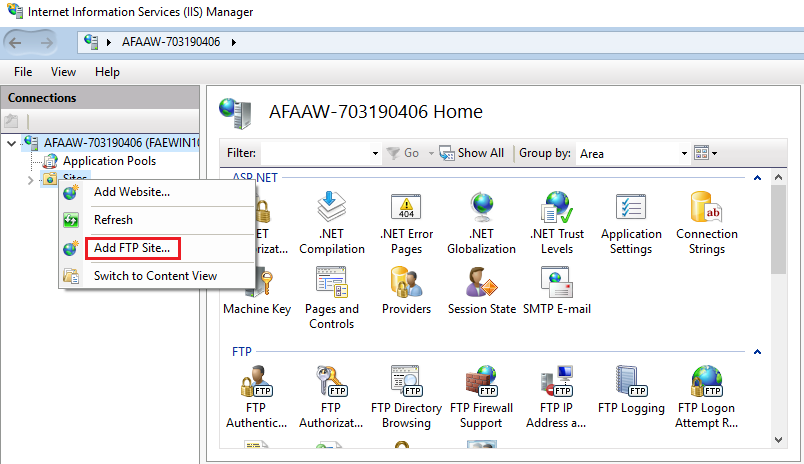

1.Open the Control Panel\All Control Panel Items\Administrative Tools\Add FTP Server

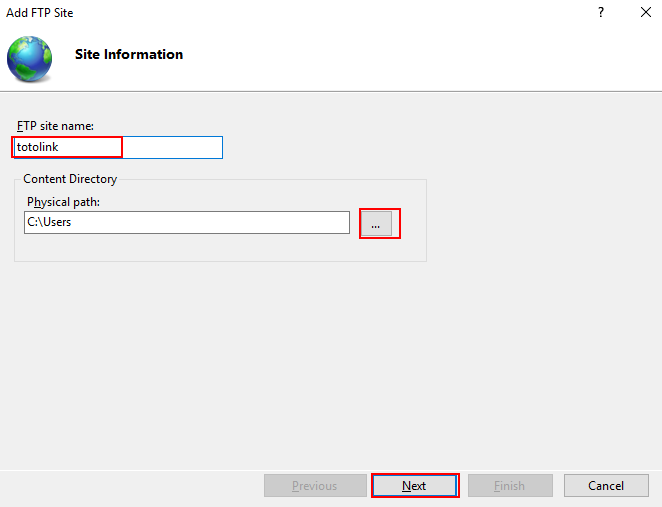

2.Input the ftp site name, Select the path; Click next

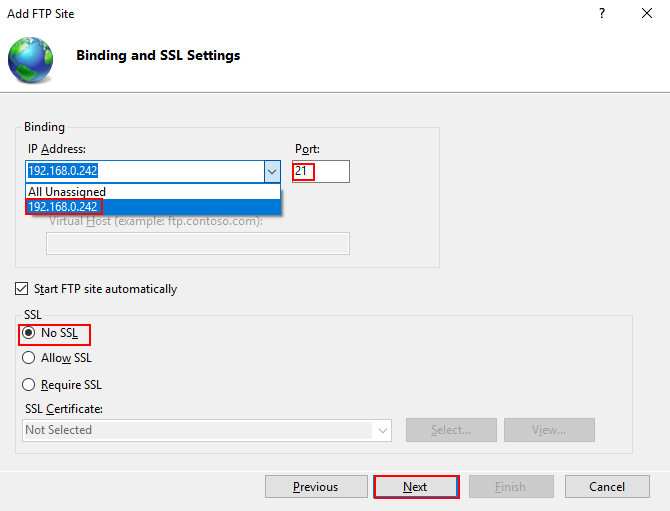

3.Select the target PC address，Sets the port, Click Next;

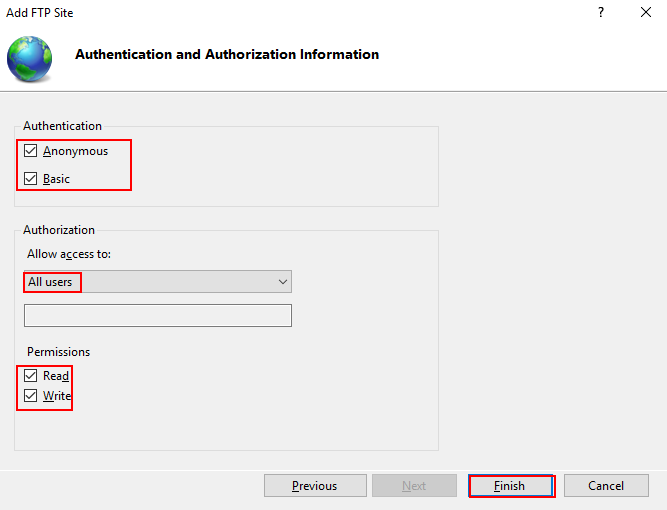

4.Define users and permissions, Click Finish.

5.Now, you can access FTP over a LAN, Login Address: ftp://192.168.0.242;

6.Check ROUTER WAN IP, in the public network use it to log into the FTP Server;

E. g  ftp://113.90.122.205:21;

Normal visit, verify that the port forwarding OK

★ Before downloading files. please confirm the hardware version ofyour device and choose the corresponiding firmware version to uparade.

★ Wrong firrmware version may damage your device and no warrante.

Set up steps

STEP-1: Guide for Hardware Version

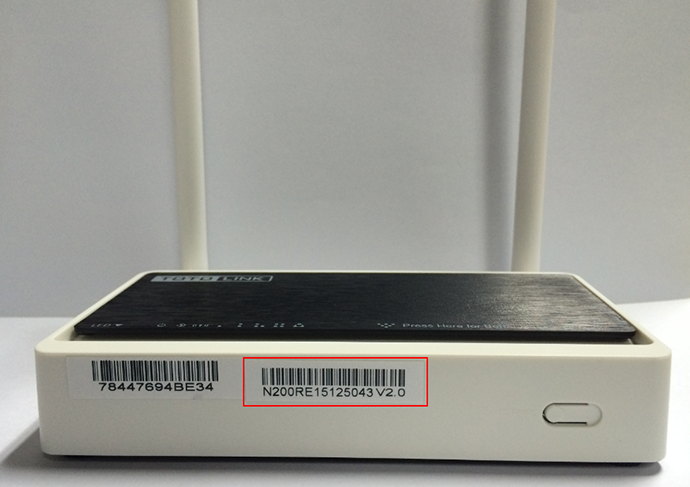

For most TOTOLINK routers, you can see two bar coded stickers at the front of the device, the character string started with Model No.(for example N300RT) and ended with Hardware Version (for example V2.0) is the serial number of your device. See below:

STEP-2:

Open browser, enter www.totolink.net. Download the required files.

For example, if your hardware yersion is V2.0 , please download V2 version.

Note: If the hardware version is V1, V1 will be hidden.

STEP-3:

Unzip the file, correct upgrade file name is suffixed with ”web” or “bin” (except for some special models)

Application introduction:

The system log of the router can be used to find out why the network connection fails.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:

The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

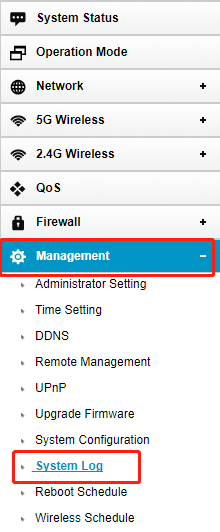

Enter the Advanced Setup page of the router, Click System->System Log on the navigation bar on the left.

STEP-4:

Before view System Log of Router, you confirm that the system log is turned on. Click Refresh button to view system log.

STEP-5:

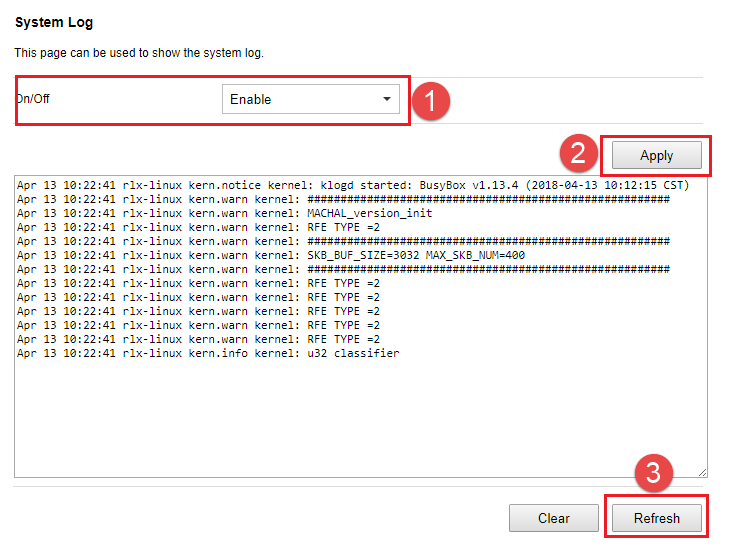

If you have not turned on System Log. Select Enable Log bar, then click Apply button. Finally Click Refresh button to view system log.

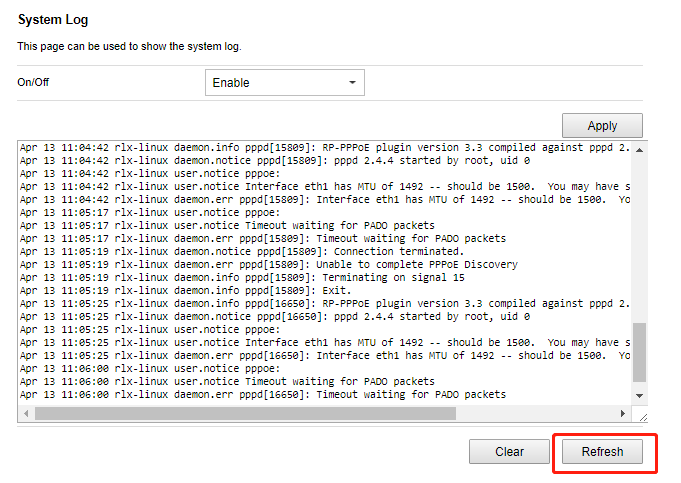

Note: Please click Refresh button to view the current log information.

STEP-1: Difference of 2.4G and 5G Wi-Fi

1-1.The primary difference between the 2.4 GHz and 5GHz wireless frequencies is range as the 2.4GHz frequency is able to reach farther than the 5GHz frequency. This is a result of the basic characteristics that waves attenuate much faster at higher frequencies. So if you are more concerned with the coverage, you should select 2.4GHz rather than 5GHz.

1-2.The second difference is the number of devices on the frequencies. 2.4GHz suffers more interference than 5GHz.

1). The older 11g standard only uses the 2.4GHz frequency, majority of the world is on it. 2.4 GHz has fewer channel options with only three of them non-overlapping, while 5GHz has 23 non-overlapping channels.

2). A lot of other devices are also on the 2.4 GHz frequencies, the biggest offenders are microwaves and cordless phones. These devices add noise to the medium that can further decrease the speed of wireless networks.

In both aspects, choosing to deploy on the 5GHz frequency is the much better option as you have more channels to use to isolate yourself from other networks and there are far fewer interference sources.

But the radar and military frequency is also 5GHz, so 5GHz wireless may also have some interference, and many countries require that wireless devices working on 5GHz should support DFS(Dynamic Frequency Selection) and TPC(Transmitting Power Control).

STEP-2: Summary

3-1. All TOTOLINK dual band routers support 2.4GHz and 5GHz simultaneously；

3-2. 5GHz has a shorter range than 2.4GHz;

3-2. 5GHz radio band that offers high-speed wireless connection that could with less interference in compare to 2.4G WiFi network.

Application introduction: New version of firmware will be released to improve the various efficiency or to fix some bugs. Following the steps show below so as to realize upgrading.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note: The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

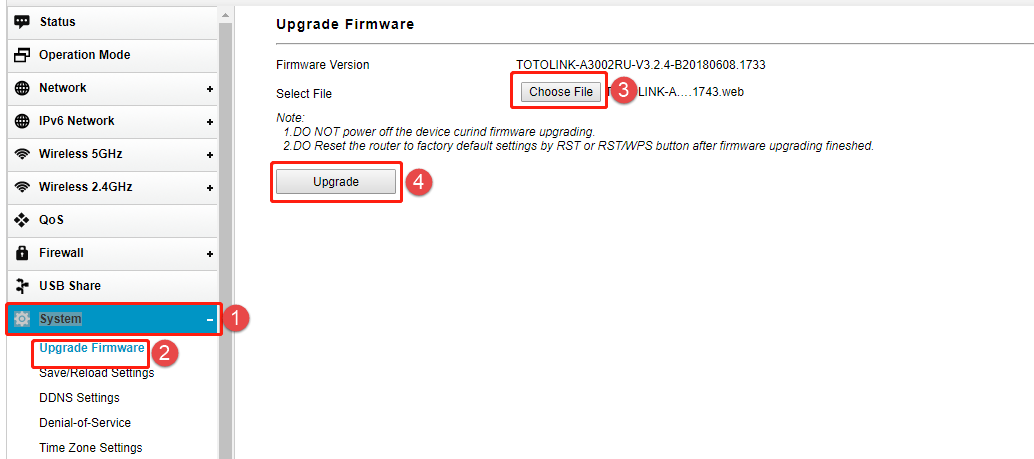

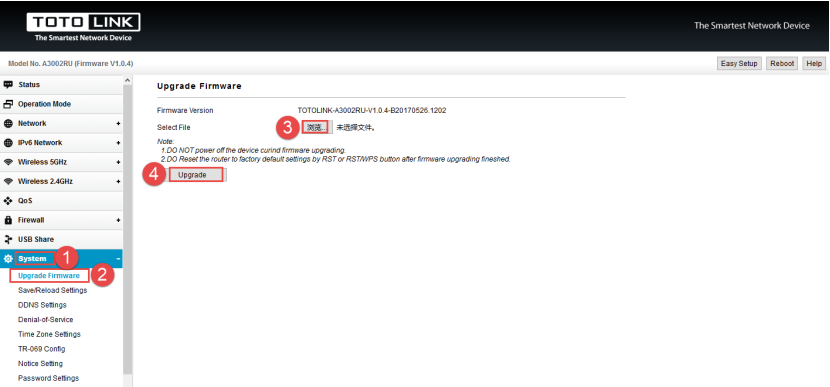

Click Management/System->upgrade firmware. Choose the firmware file for upgrading.Then click the Upgrade button. Then wait for few minutes, the router restart automatically.

Notice:

1.DO NOT power off the device or close the browser window during the upload because it may crash the system.

2.The correct upgrade firmware is a file suffixed with the Web.

Check the label on the bottom of the router to get the login address of the router, as shown below.

Product sticker	Default login address
	itotolink.net
	192.168.0.1
	192.168..1

Obtain the login address of the router through the computer (take win10 system as an example).

STEP-1:

The computer connects to the wireless signal of the router. (The back sticker has the factory default wireless signal name)

STEP-2:

2-1. Click on wireless icon at the bottom right corner on the screen, Select Network & Internet settings.

2-2. Select the connected wireless network.

2-3. Select Details to check whether an IP address is obtained.

If the IPV4 address is 192.168.0.*, the default gateway of IPV4 is 192.168.0.1, indicating that the login address of the router is 192.168.0.1.

If the IPV4 address is 192.168.1.*, the default gateway of IPV4 is 192.168.1.1, indicating that the login address of the router is 192.168.1.1.

If the IP is not available, you can disconnect the signal and reconnect it. If it is still invalid, you can restore the router to the factory and check the IP address obtained after the connection signal.

Note: Before this, please confirm that your computer is selected to "acquire IP address automatically".

For the setting method of the computer automatically obtaining the IP address, refer to the following figure (take win10 system as an example).

Obtain the login address of the router through your mobile phone.

STEP-1

The wireless signal that the phone connects to the router. (The back sticker has the factory default wireless signal name)

STEP-2:

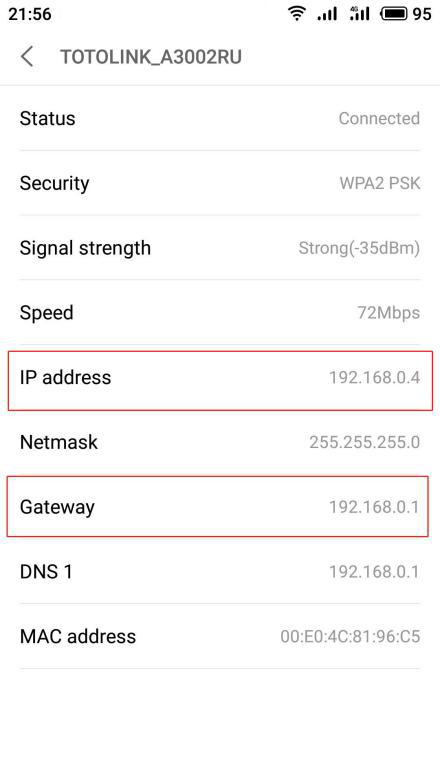

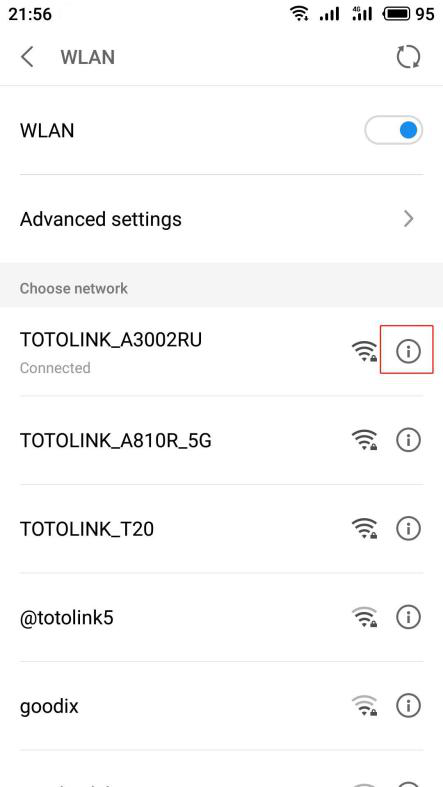

Select your phone's wireless network settings to check if you have an IP address.

At this point, the IPV4 address is 192.168.0.*, and the IPV4 default gateway is 192.168.0.1, indicating that the router's login address is 192.168.0.1.

STEP-3:

Enter 192.168.0.1 in the address bar of the mobile browser.

STEP-4:

If you still can't enter, you can change the browser or a mobile phone or computer through the 192.168.0.1 login interface.

STEP-5:

If the fourth step is invalid, the router can be reset.

Reset method:

1. Please make sure your router’s power is on regularly, then press the RST button for about 10s.(The RESET pin should be held with a pointed object such as a paper clip or a pen tip)

2. Loosen the button until your router’s LED lights all flashing, then you have reset your router to default settings.

Application introduction: This article will illustrate way to manually set an IP address on Windows 10/Mobile phone.

Manually set IP address on Windows 10

1-1. Find the small computer icon in the lower right corner of your computer desktop ，click on “Network & Internet settings”.

1-2. Pop up the Network & Internet Center interface, click on “Change adapter options” under Related settings.

1-3. After open changing adapter options,find Ethernet,click and select Properties.(If you want to check the wireless IP address, find WLAN)

1-4. Select “Internet Protocol Version 4 (TCP/IPv4)”,click on “Properties”.

1-5. To manually set IP address, select “Use the following IP address”, set the IP address and subnet mask; Finally click on“ok”.Take the IP address 192.168.0.10 as an example.

1-6. When you don't need to set the IP address manually, Please select Obtain an IP address automatically and Obtain DNS Server address automatically.

Manually set IP address on Mobile phone

1-1. Click Settings on the screen-> Wireless Network (or Wi-Fi), click on the exclamation mark behind the wireless signal.

Note: Before manually set IP address , make sure the wireless terminal is currently connected or is connecting to the wireless signal.

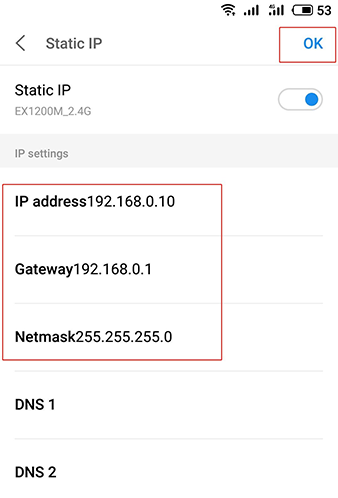

1-2. Click Static, enter the corresponding parameters in the IP address, gateway, and network mask positions, and click Save. Take the IP address 192.168.0.10 as an example.

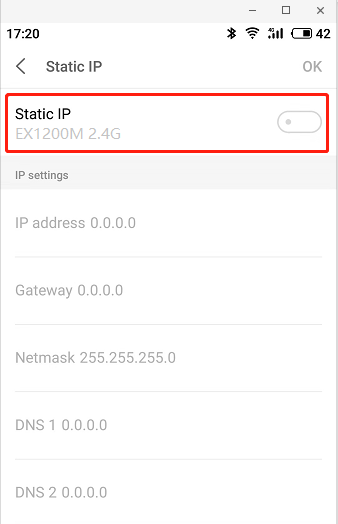

1-3. When you don't need to set the IP address manually, Please turn off static IP.

Application introduction: To enter the router’s setting interface, you may enter the specified IP if you know setup your PC or set your PC to obtain an IP address automatically.

The steps for configuring TCP/IP properties (Here I take system W10 for example).

STEP-1:

Click on   at the bottom right corner on the screen

STEP-2:

Click on [Properties] button in the lower left corner

STEP-3:

Double click on “Internet Protocol (TCP/IP)”

STEP-4:

Now you have two ways to configure the TCP/IP protocol below:

4-1. Assigned by DHCP Sever

Select Obtain an IP address automatically and Obtain DNS Server address automatically, as shown in the figure below. These may be selected by default. Then click OK to save setting.

4-2. Assigned manually

Using the following IP Address, as shown in the following figure.

[1] If the router’s LAN IP address is 192.168.1.1, please type in IP address 192.168.1.x （“x” range from 2 to 254）, the Subnet Mask is 255.255.255.0 and Gateway is 192.168.1.1.

[2] If the router’s LAN IP address is 192.168.0.1, please type in IP address 192.168.0.x （“x” range from 2 to 254）, the Subnet Mask is 255.255.255.0 and Gateway is 192.168.0.1.

STEP-5:

Check the IP address you get automatically in the former step

The IP address is 192.168.0.2, it means the network segment of your PC is 0, you should enter http://192.168.0.1 into the address bar of your browser.

Enter the router’s setting interface similarly and do some settings.

Application introduction:This article describes the Windows operating system computer connected to the router (or other network device) by wireless or wired, view the gateway IP address of the current router.

For Windows W10:

STEP-1. TOTOLINK Router LAN Port Connects the PC Or wirelessly connect to TOTOLINK Router WIFI.

STEP-2. Right-click the Network Connections icon, click on “Network & Internet settings”.

STEP-3. Pop up the Network & Internet Center interface, click on “Network and Sharing Centre” under Related settings.

STEP-4. Click connections target

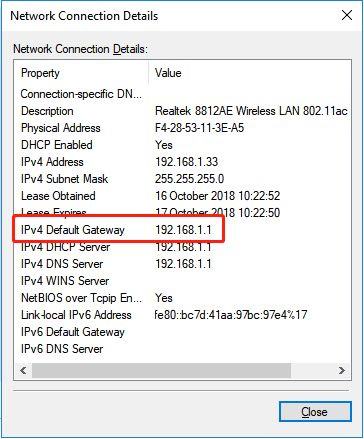

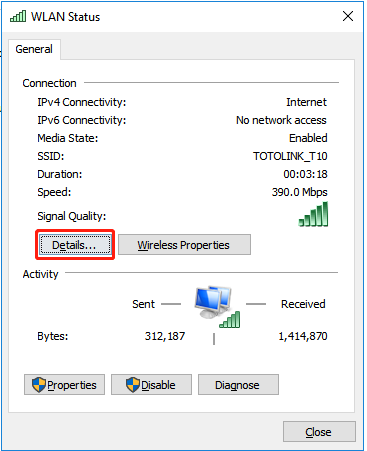

STEP-5. Clink Details…

STEP-6. Find to IPv4 Default Gateway, This is the current gateway address of your router.

For Windows 7，8, 8.1 and 10:

STEP-1. Click on windows key+ R key on the keyboard at the same time.

   ‘R’

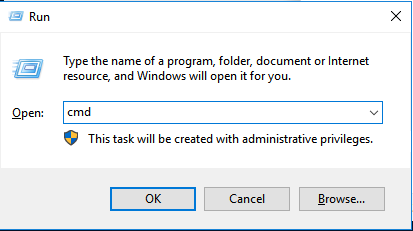

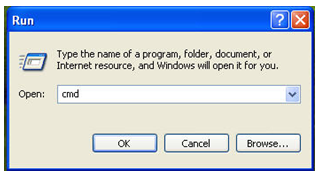

STEP-2. Enter cmd in the field and click OK button.

STEP-3. Type in ipconfig and click enter key. Find to IPv4 Default Gateway, This is the current gateway address of your router.

If you can’t login the web interface of TOTOLINK, it may be related to factors such as router, line, browser or computer.

Please follow the steps below for detailed troubleshooting.

Application introduction:

After entering the management address of the router in the address bar of the browser, the management page cannot be displayed, or the page cannot be displayed after entering the management password, as shown below.

Note: Ensure that the login IP address you typed in the address bar is correct, as well as the login username and password.

STEP-1: Check line connection

The operating computer should be connected to the router and can be connected via a network cable or wirelessly.

Connect through the network cable:

Operate the computer and connect to the LAN port of the router, and ensure that the indicator of the computer network cable interface and the corresponding interface of the router is on.

Wireless connection:

The wireless terminal needs to connect to the router signal. When the factory setting is set, the router default Wi-Fi name and password are printed on the bottom label of the router.

Note: If the signal of the wireless router is not found, it is recommended to reset the router.

STEP-2: Check computer IP address

If the computer does not specify or obtain the correct IP address, it will be unable to log in to the management interface.

Be sure to set the IP address of the operating computer to be automatically obtained. Take the Windows 10 system wired network card as an example. For the setting method of the computer automatically obtaining the IP address, refer to the following figure.

STEP-3: Check login address

TOTOLINK router currently has three types of login addresses, and different router addresses may be different:

Management page address: itotolink.net or 192.168.0.1 or 192.168.1.1.

For the specific login address, please check the sticker at the bottom of the router, as shown below (take itotolink.net as an example).

After confirming the login address, open the browser, clear the address bar and enter the management address, press Enter, as shown below.

STEP-4: Check login password

If the password input box of the login management interface can be displayed, but the wrong password is entered, the management interface cannot be logged.

Our common default login password prompt box, as shown below.

Note: If you forget the set or modified management password, you can only restore the factory settings.

STEP-5: Change your browser or computer

A. Change browser and clear browser cache

Try changing your browsers like Google Chrome, Firefox, Internet Explorer, etc., and clear your browser cache.

Delete cookies on the web browser. Here we take Google Chrome for example.

Note: In general, the browser enters the management address of the router and a 404 error pops up. Please use this method first.

B. Try to log in with your phone

If you are unable to log in using your computer, you can try to change another computer or use your mobile phone to log in to the management interface (using the mobile browser), as shown below, enter itotolink.net as an example.

STEP-6: Reset router

If you still cannot log into the router's setup page after troubleshooting according to the above methods, it is recommended to restore the factory settings. There are two types of wireless router reset buttons: RESET pin and RESET button. As shown below.

Reset method:

1. Please make sure your router’s power is on regularly, then press the RST button for about 10s.(The RESET pin should be held with a pointed object such as a paper clip or a pen tip)

2. Loosen the button until your router’s LED lights all flashing, then you have reset your router to default settings.

Note: Some wireless routers share a button with RESET.

Application introduction:

Some TOTOLINK products have more than one hardware version, using V1, V2, etc for separation, and generally, each hardware version corresponds to a specifically developed firmware.

If you want to upgrade your device to the latest firmware, you need to choose the correct firmware version for your device.

【 CAUTION 】

All content on this website is only applicable to models selling in overseas markets (outside China   mainland, Taiwan and South Korea ),  any model purchased from China mainland,Taiwan or South Korea caused damage by upgrading software on this website is excluded in after-sales service range

For most TOTOLINK products, you can see a bar coded sticker at the front of the device, there is a  character string “VX.Y” (for example, V1.1), See below:

The number X is the Hardware Version of your device. If the string shows “V1.y”, it means the hardware version is V1.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note: The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

If don’t want to restore the router to the factory settings, please follow the introduction below.

3-1. Connect your computer to the router by cable or wireless

3-2. Setup you PC to get the IP automatically (Here I take system W10 for example)

3-3. Click on   at the bottom right corner on the screen

3-4. Click [ Properties ] button in the lower left corner

3-5. Double click on “Internet Protocol (TCP/IP)”.

STEP-4:

Now you have two ways to configure the TCP/IP protocol below:

4-1. Assigned by DHCP Sever

[1] Select Obtain an IP address automatically and Obtain DNS Server address automatically, as shown in the figure below. These may be selected by default. Then click OK to save setting.

[2]Check the IP address you get automatically

The IP address is 192.168.0.2, it means the network segment of your PC is 0, you should enter http://192.168.0.1 into the address bar of your browser.

Enter the router’s setting interface similarly and do some settings.

4-2. Assigned manually

Using the following IP Address, as shown in the following figure.

[1] If the router’s LAN IP address is 192.168.1.1, please type in IP address 192.168.1.x （“x” range from 2 to 254）, the Subnet Mask is 255.255.255.0 and Gateway is 192.168.1.1.

Then enter http://192.168.1.1 to log in to the router.

[2] If the router’s LAN IP address is 192.168.0.1, please type in IP address 192.168.0.x （“x” range from 2 to 254）, the Subnet Mask is 255.255.255.0 and Gateway is 192.168.0.1.

Then enter http://192.168.0.1 to log in to the router.

Note: After the router is successfully set up, your computer must choose to obtain an IP address automatically to access the network.

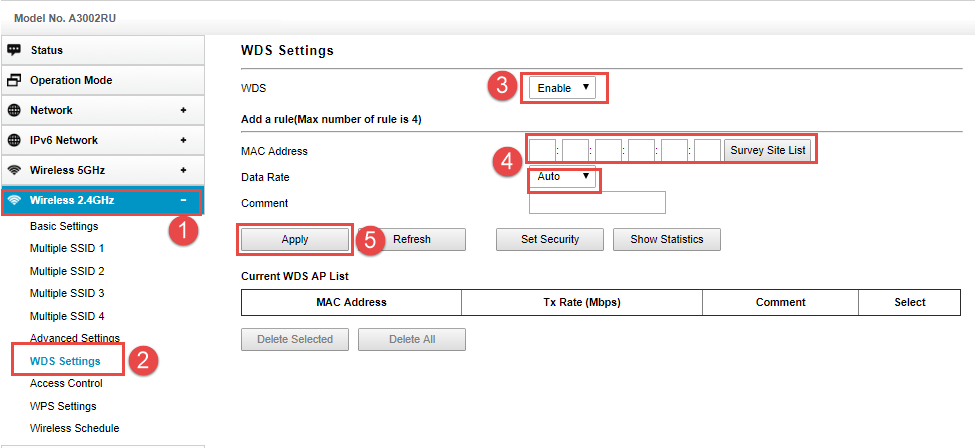

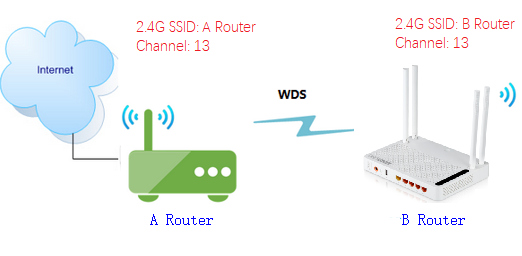

Application introduction: Settings Solution about how to configure WDS to TOTOLINK products. Take the A3002RU as the example of setting 2.4G wireless.

● Before configuration, make sure that both A Router and B Router are powered on.

● Connect your computer to the same network of router A and B.

● move the B router closer to the A router to find the B routing signals better for fast WDS.

● A Router and Router should be set to the same channel.

● Set both Router A and B should to the same band 2.4G or 5G.

● Choose the same models for A-router and B-router. If not, WDS function may not be implemented.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3: A-router setting

3-1. Firstly connect the Internet for A-router then please go to Wireless 2.4GHz->WDS Settings page, and check which you have selected.(The type of A-router and B-router should be same )

Select Enable, then Input MAC Address of B-router in A-router and Select Auto for Data Rate, then Click Apply.

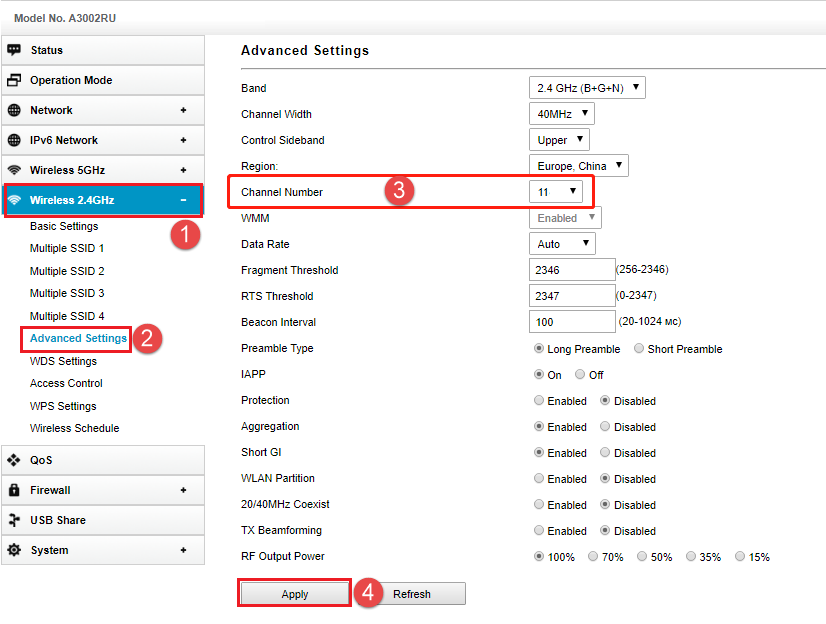

3-2. Please go to Wireless 2.4GHz->Advanced Settings page, select Channel Number which you must choice equal for the B-router.

STEP-4: B-router setting

4-1. Secondly use Bridge Mode for B-router then please go to Wireless 2.4GHz->WDS Settings page, and check which you have selected.

Select Enable, then Input MAC Address of A-router in B-router and Select Auto for Data Rate, then Click Apply.

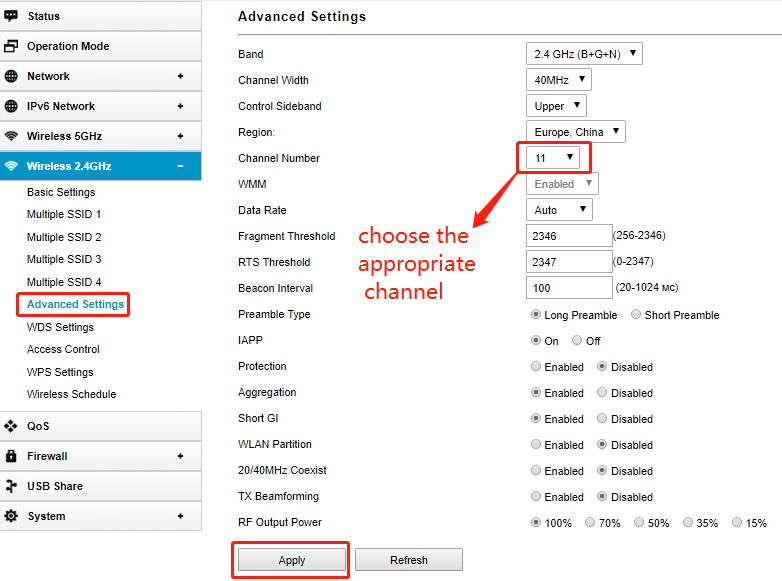

4-2. Please go to Wireless 2.4GHz->Advanced Settings page, select Channel Number which you must choice equal for the A-router.

Application introduction: Ping is used to test connectivity to a specific host in the network with the use of Internet Protocol (IP) address or a specific website URL.

STEP-1. Click Start-> Run.

STEP-2. Enter cmd in the field and click OK button.

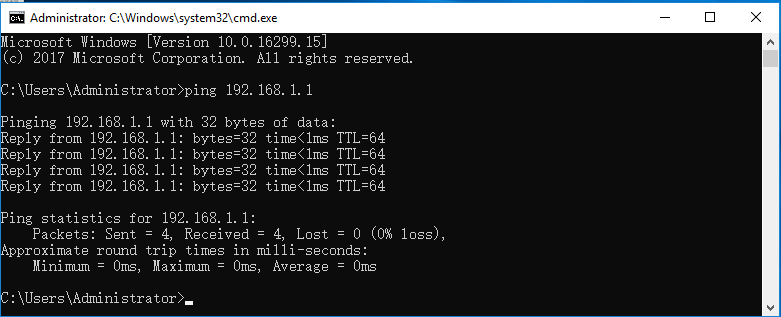

STEP-3. Type in Ping 192.168.1.1 and click enter key.

For Windows 7，8, 8.1 and 10:

STEP-1. Click on windows key+ R key on the keyboard at the same time.

 +‘R’

STEP-2. Enter cmd in the field and click OK button.

STEP-3. Type in Ping 192.168.1.1 and click enter key.

Application introduction: Solution about how to set repeater mode on TOTOLINK products.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

Please go to Operation Mode ->Repteater Mode->wlan 2.4GHz or wlan 5GHz then Click Apply.

STEP-4:

Firstly select Scan, then select host router’s SSID and input Password of the host router’s SSID, then select Change SSID and Possword to input SSID and Possword you want to fill in,then Click Next.

STEP-5:

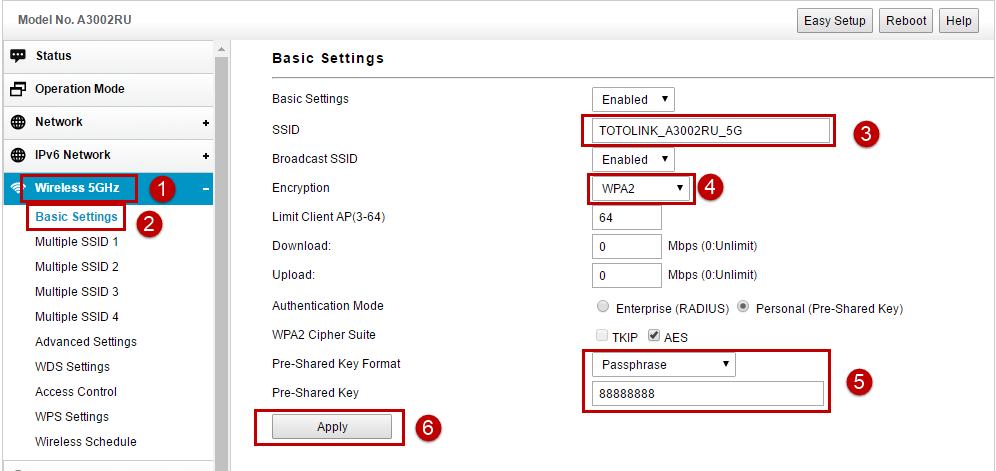

Then you can change Repeater SSID in 5GHz. As below steps input SSID and Possword you want to fill in to 5GHz,then Click Connect.

PS: After completing the above operation, please re-connect your SSID after 1 minute or so.if the Internet is available it means that the settings are successful.Otherwise,please re-set the settings again

Application introduction: The Wireless SSID and password are the basic information for you to connect Wi-Fi network. But sometimes you may forget or want to change them regularly, so here we will guide you how to check or modify the wireless SSID and password.

STEP-1: Enter the setup interface

Open a browser, enter 192.168.0.1. Input User Name and password (default admin/admin) on login management interface, as follows:

Note: The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2: View or modify the wireless parameters

2-1. Check or modify in Easy Setup page.

Login management interface, first enter the Easy Setup interface, you can see 5G and 2.4G wireless settings, as follows:

2-2. Check and modify In the Advanced Setup

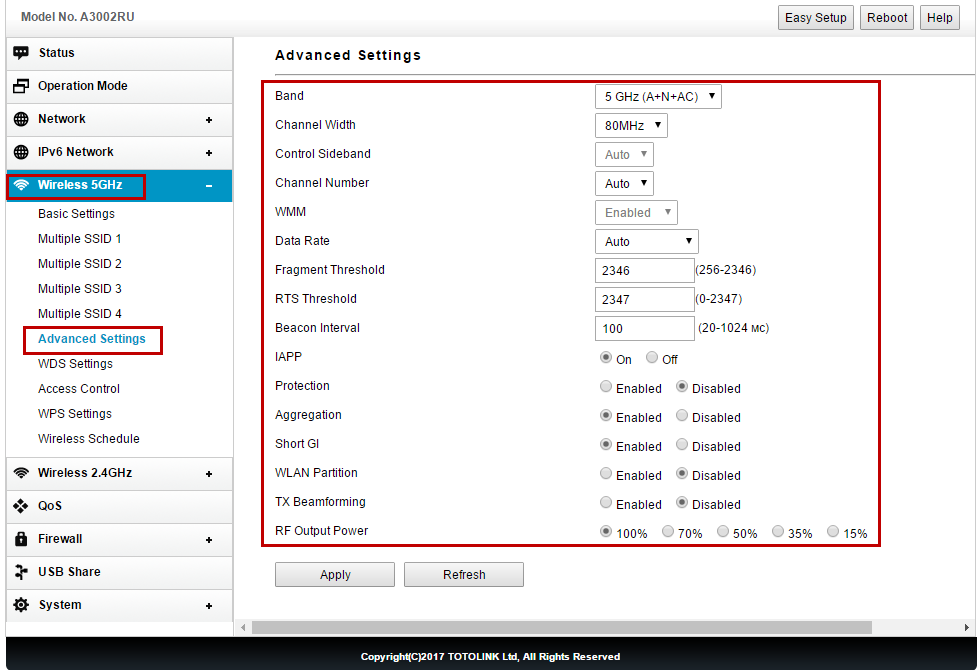

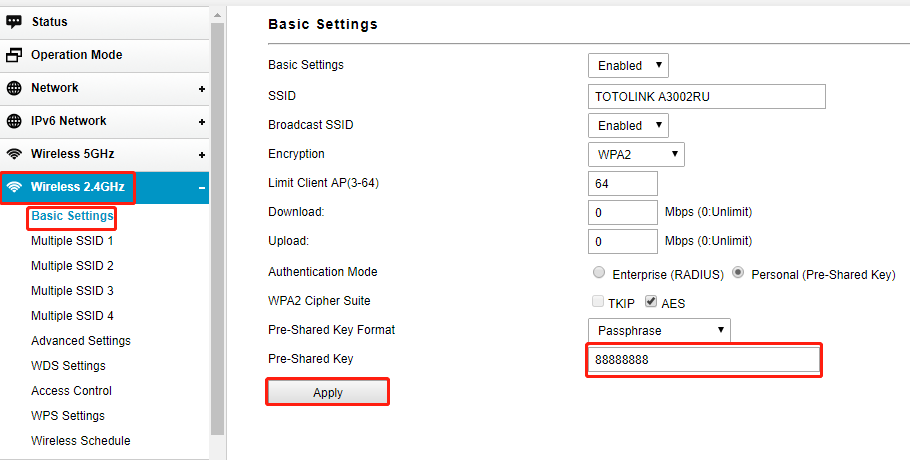

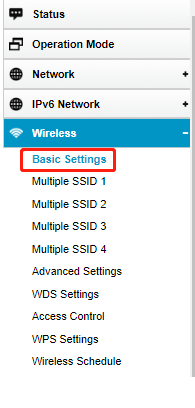

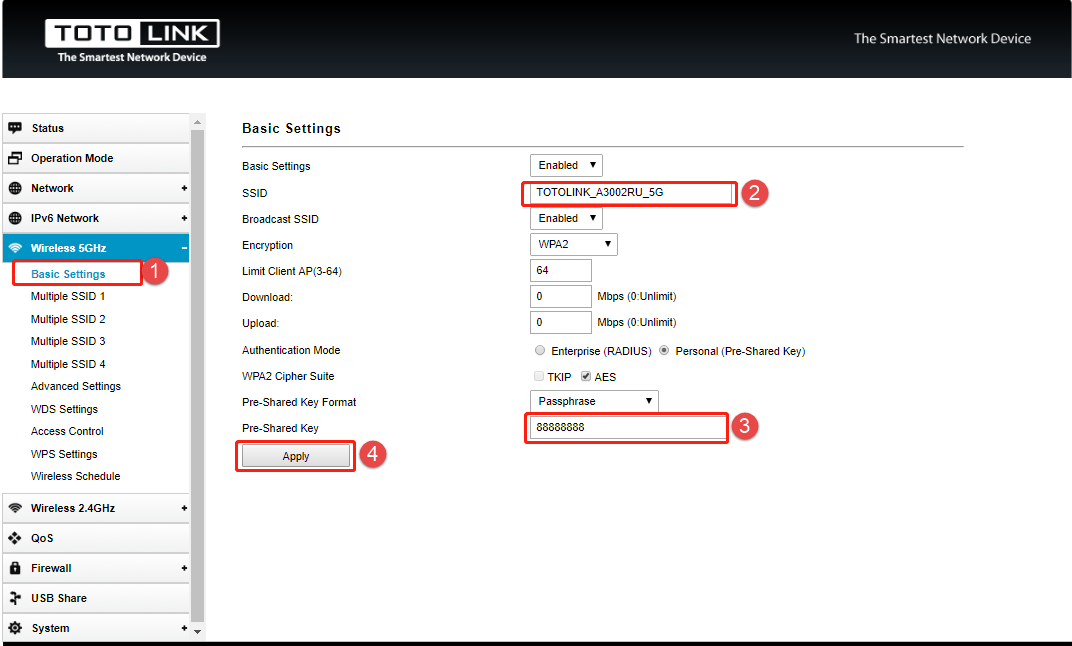

If you also need to set more parameters for WiFi, you can enter the Advanced Setup interface to set up.

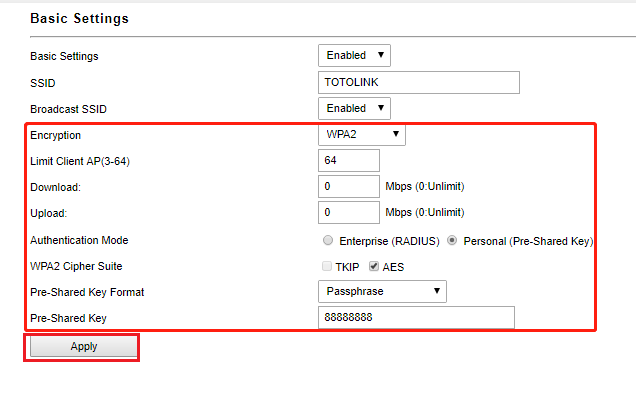

Set the SSID and password according to the following procedure.

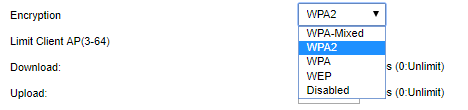

You are also able to set the Channel Width, Date Rate, RF Output Power.

Q1: Should I restart the router after setup wireless information?

A: After setting, you need to wait a few seconds for the wireless information to take effect.

Application introduction: Solution about how to upgrade Firewall on the TOTOLINK products.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note: The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3: Upgrade the software setting

Please go to System ->Upgrade Firmware page, and check which you have selected. Select Local Upgrade files, then Click Upgrade.

Then select Save/Reload Settings and click reset.

Note: DO Reset the router to factory default settings by RST or RST/WPS button after firmware upgrading fineshed.

STEP-4: System reset

Please go to System->Save/Reload Settiings page, and check which you have selected.Then Click Reset.

Or please find the RST bottom in the box and use needle to press down the bottom more than five seconds.

Application introduction: Solution about how to reset TOTOLINK products to factory defaults.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3: Login page reset

Please go to System->Save/Reload Settiings page, and check which you have selected. then Click Reset.

STEP-4: RST Button reset

Please make sure your router’s power is on regularly, then press the RST button for about 5~8s.

Loosen the button until your router’s LED lights all flashing, then you have reset your router to default settings.

Application introduction: Solution about how to configure Internet mode with PPPoE ,Static IP and DHCP for TOTOLINK products

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note: The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3.1.1: Easy Setup DHCP setting

The Easy Setup page will turn up for basic and quick setting，Select DHCP Client  as WANConnection Type, then Click Apply.

STEP-3.1.2: Advanced Setup DHCP setting

Please go to Network ->WAN Setting page, and check which you have selected.

Select DHCP Client as WAN Type, then Click Apply.

STEP-3.2.1: Easy Setup PPPOE setting

The Easy Setup page will turn up for basic and quick setting ,Select PPPoE as WAN Type and input your PPPoE username and password which are provided by your ISP. Then Click Apply

STEP-3.2.2: Advanced Setup PPPOE setting

Please go to Network ->WAN Setting page, and check which you have selected.

Select PPPoE as WAN Type and input your PPPoE username and password which are provided by your ISP. Then Click Apply

STEP-3.3.1: Easy Setup Static IP setting

The Easy Setup page will turn up for basic and quick setting，Selecting Static IP as WAN Connection Type and input your information about Static IP which you want to fill in .Then Click Apply

STEP-3.3.2: Advanced Setup Static IP setting

Please go to Network ->WAN Setting page, and check which you have selected.

Select Static IP as WAN Type and input your information about Static IP which you want to fill in .Then Click Apply

Application introduction: Solution about how to configure multiple SSID for TOTOLINK products.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note: The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

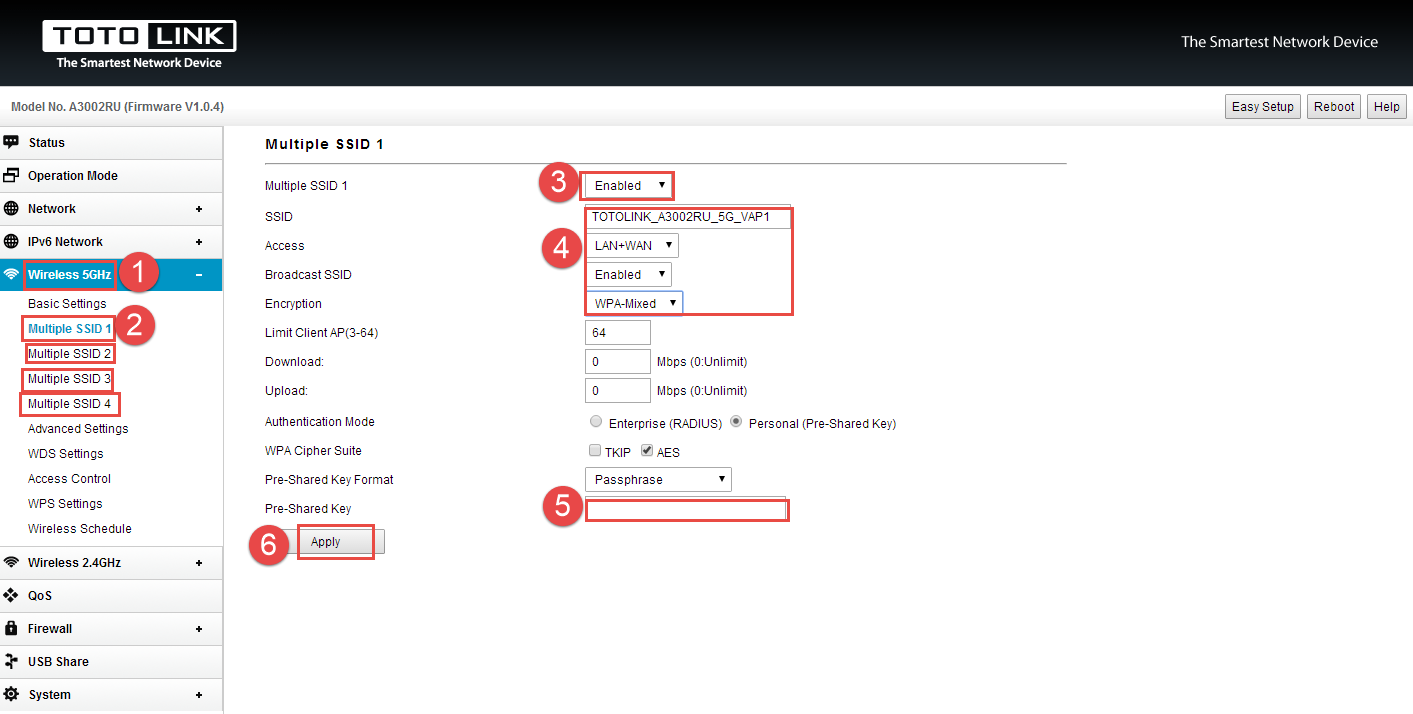

Please go to Wireless 2.4GHz ->Multiple SSID 1 page, and check which you have selected. Select Enable , then Input your own SSID and Pre-Shared Key, then Click Apply and repeat this operation to Multiple SSID 2，Multiple SSID 3 and Multiple SSID 4.

STEP-4:

Please go to Wireless 5GHz ->Multiple SSID 1 page, and check which you have selected.

Select Enable , then Input your own SSID and Pre-Shared Key, then Click Apply and repeat this operation to Multiple SSID 2，Multiple SSID 3 and Multiple SSID 4.

Application introduction: Solution about how to configure Wireless MAC Filtering on TOTOLINK router

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

Please go to Firewall ->MAC filtering page, and check which you have selected.

Select Deny list, then Input MAC Address you want to restrain , then Click Apply.

STEP-4:

Please go to Firewall ->MAC filtering page, and check which you have selected.

Select Allow list, then Input MAC Address you want to allow to surf the Internet and those you do not fill in will be restrained , then Click Apply.

Note: You need add items in this way one by one.

Application introduction: Solution about how to configure IP Address and Port Filtering on TOTOLINK.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note: The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

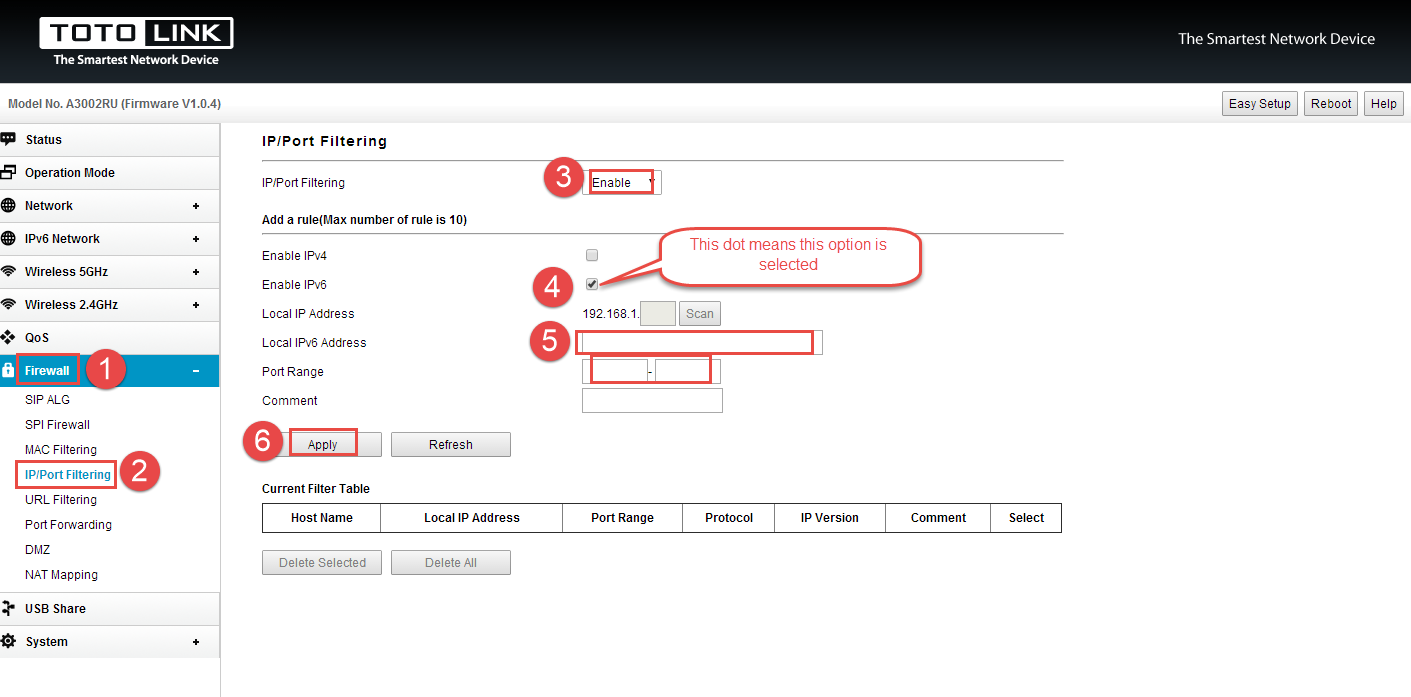

Please go to Firewall ->IP/Port filtering page, and check which you have selected.Select Enable, then Input IP Address and Port Range you want to restrain , then Click Apply.

STEP-4:

Please go to Firewall ->IP/Port filtering page, and check which you have selected.Select Enable, then Input IP Address and Port Range you want to restrain , then Click Apply.

Application introduction: A Virtual Local Area Network (VLAN) is a network technology configured according to a logical scheme rather than the physical layout. Hosts in the same VLAN communicate with each other as if they are in a LAN. However, hosts in different VLANs cannot communicate with each other directly.

STEP-1:

Please login to the web-configuration Interface of the router.

STEP-2:

On the left menu, go to Network->IPTV Settings.

STEP-3:

Select Enabled to open up VLAN function. To establish a VLAN, you should make sure they are of the same VID.

As the picture shows, both port1 and port2 are the member port of VLAN 35, it means that port1 and port2 can communicate with each other, port1 and port3 can’t communicate with each other.

The filed tag means that the ports only received VLAN tagged packets whose VID is 35 and should transmit with VLAN tagged(VID is 35).

STEP-3:

If you want to set some ports for IPTV (eg:port4), you should configure port4 as bridge forwarding rule and obtain VID (eg:1500) from your ISP, also you can configure Tag ,Priority and CFI according to your need. And other LAN ports NAT with WAN, the packets from these LAN port should be untagged, and these packets go out to WAN port will tagged with VID=1.

Application introduction: TOTOLINK router provided repeater function, with this function users can expand the wireless coverage and allow more terminals to access Internet.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note: The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

Please go to Operation Mode ->Repteater Mode->wlan 2.4GHz or wlan 5GHz then Click Apply.

STEP-4

Firstly select Scan , then select host router’s SSID and input Password of the host router’s SSID, then select Change SSID and Possword to input SSID and Possword you want to fill in,then Click Next.

STEP-5

Then you can change Repeater SSID in 5GHz as below steps

input SSID and Possword you want to fill in to 5GHz,then Click Apply.

Note:

After completing the above operation, please re-connect your SSID after 1 minute or so.if the Internet is available it means that the settings are successful. Otherwise, please re-set the settings again

Questions and answers

Q1: After the Repeater mode is set successfully, you cannot log in to the management interface.

A: Since AP mode disables DHCP by default, the IP address is assigned by the superior router. Therefore, you need to set the computer or mobile phone to manually set the IP and the network segment of the router to log in to the router settings.

Q2: How do I reset my router to factory settings?

A: When turning on the power, press and hold the reset button (reset hole) for 5~10 seconds. The system indicator will flash quickly and then release. The reset was successful.

Application introduction: If you can’t access the router’s setup interface or simply forgot the router’s password, you may reset the current configuration to factory default. There are two ways to.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

Click System->Save/Reload Settings on the navigation bar on the left.

STEP-4:

Click Reset Settings to Default to reset the router’s configuration.

STEP-5:

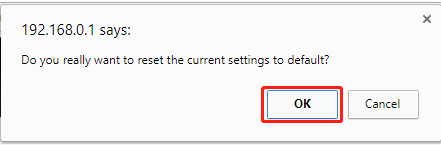

Click OK and wait for few seconds to finish resetting.

Only by one click on the RST/WPS button

STEP-1:

Press and hold the RST/WPS button for about 10 seconds, until the CPU led blink quickly.

STEP-2:

After nearly 30 seconds, resetting is finished.

Application introduction:  The schedule function allows you to setup the time that the router will reboot automatically. What’s more, it allows you to setup the time WiFi on and off while by the other times beyond this period WiFi will be off. It is very convenient for users who often access the Internet very regularly.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3: Check Time Zone Setting

Before you configure the schedule, you should make sure that the NTP Server is enabled.

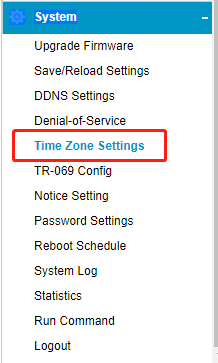

3-1. Click System->Time Zone Setting in the sidebar.

3-2. Choose Enable NTP and click Apply.

STEP-4: Reboot Schedule Setup

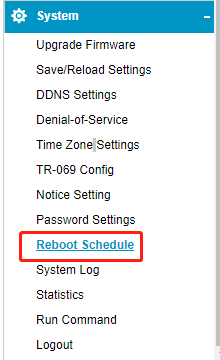

4-1. Click System->Reboot Schedule in the navigation menu.

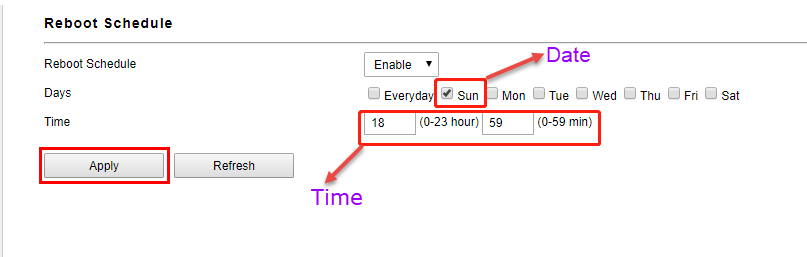

4-2. In the schedule interface, you can setup the time when the router will reboot time.

For Example:

Application introduction:  IP conflict may happen while there are two routers in series connection or other reasons, which may cause false connection. Change LAN IP by follow steps can help you avoid of IP conflict.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

Click Network->LAN Settings on the navigation bar on the left. In this interface you can change the IP address (e.g. 192.168.2.1), and click Apply button for saving settings.

Application introduction: This router has a built-in real time clock which can update itself manually or automatically by means of Network Time Protocol (NTP). As a result, you can schedule the router to dialup to the Internet at a specified time, so that users can connect to the Internet only during certain hours.

STEP-1: Check Time Zone Setting

Before using schedule function you have to set your time correctly.

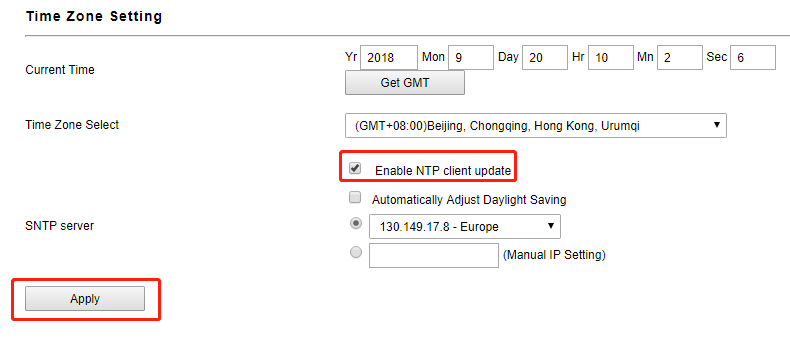

1-1. Click System->Time Zone Setting in the sidebar.

1-2. Enable NTP client update and choose the SNTP server, click Save Changes button for saving changes.

STEP-2: Wireless Schedule Setup

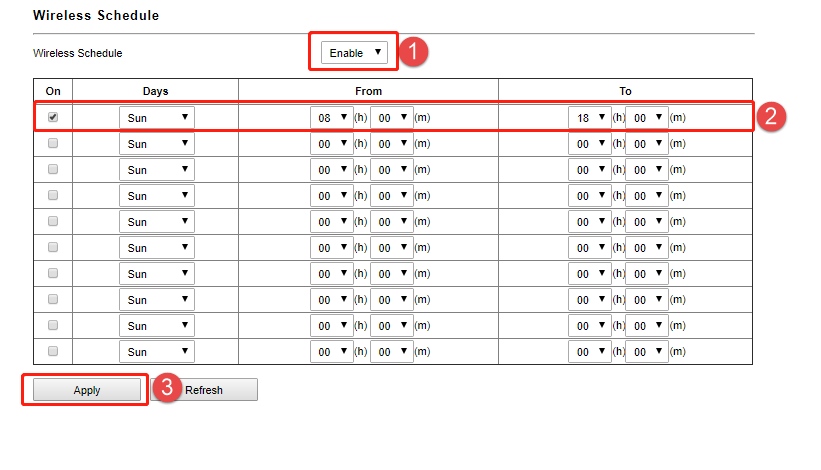

2-1. Click Wireless->Wireless Schedule

2-2. Enable the schedule at first, in this section, you can setup the specify time so the WiFi will be on during this period.

The picture is a example, and WiFi will be on from eight o’ clock to eighteen o’clock on Sunday.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

First, the Easy Setup page will turn up for basic and quick settings, you can find the short firmware version on the top left corner. See below picture:

STEP-4:

For full firmware version, please click Advanced Setup on top right corner. The System Status will show you full firmware version. See below red marked area:

For most TOTOLINK routers, you can see two bar coded stickers at the front of the device, the character string started with Model No.(for example N200RE) and ended with Hardware Version (for example V2.0) is the serial number of your device. See below:

Application introduction: Solution about how to change the wireless name and password on the TOTOLINK products

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note: The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3: Modify in Easy Setup page

The Easy Setup page will turn up for basic and quick setting，Input your own Wireless Network Name and Password, then Click Apply.

STEP-4: Modify In the Advanced Setup

Please go to Wireless ->Basic Setting page, and check which you have select. Select WPA-PSK/WPA2-PSK, then Input your own Wireless Network Name and Password, then Click Apply.

Application introduction: MAC address is the physical address of your computer’s network card. Generally, every network card has one unique Mac address. Since many ISPs only allow one computer in LAN to access Internet, users can enable MAC address clone function to make more computers surf Internet.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

Click Network->WAN Settings, Select the WAN type and click Scan MAC Address. Finally click Apply.

Application introduction: If you want to reset the router’s User Name and Password, please follow the steps below.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

Click System->Password Settings on the navigation bar on the left. In this interface, you can change the password after entering the old password.The default user name and password is admin.

Application introduction: Password can ensure the security of your wireless network. In case you forget the Password, follow steps below to restore it.

Take N200RE-V3 as an example.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

First, the Easy Setup page will turn up for basic and quick settings, click Advanced Setup.

STEP-4:

Click Wireless Setting->Basic Settings on the left navigation bar.

STEP-5:

You can check the password on this page directly.

Take N200RE-V3 as an example.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

First, the Easy Setup page will turn up for basic and quick settings, including Internet Setting and Wireless Setting.

STEP-4:

Choose the WAN Access Type, enter User Name, Password provided by your ISP. Set an encryption method and password for your WiFi network. Click Apply to make the settings work.

STEP-5:

For successful connection, the Connect Status will show you connected.

Application introduction: In order to improve network security, you can disable SSID broadcast in the web-configuration interface. After disabled SSID broadcast, other devices can find and connect to the SSID again.

STEP-1: Connect your computer to the router

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

Now you have logged into the web interface of the router.

STEP-3: Disabled SSID broadcast

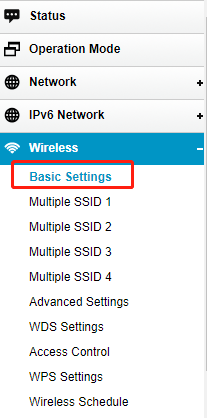

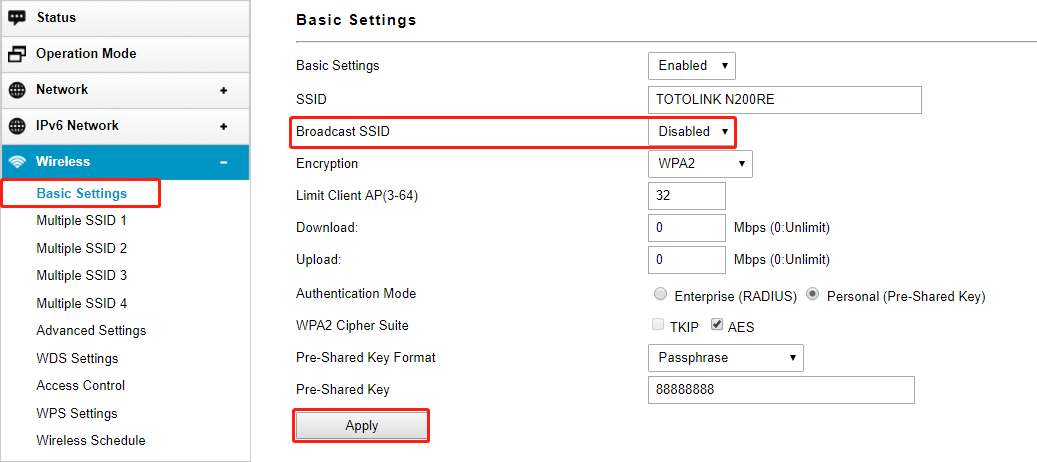

Click Wireless-> Basic Settings.On this page, you could change the SSID Broadcast status.

Application introduction: TOTOLINK router provided repeater function, with this function users can expand the wireless coverage and allow more terminals to access Internet.

Set a encrypted wireless network, please following these steps.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

Click Wireless Settings->Wireless Setup on the left menu.

STEP-4:

In this interface, you can encrypt your network now.

WEP-Open System, WEP-Shared Key, WPA-PSK, WPA2-PSK and WPA/WPA2-PSK are provided for your, for better security, WPA/WPA2-PSK is recommended.

Application introduction: When you can’t find the SSID of the router even you have powered on the router? you can check the settings following these steps.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

Click Wireless->Basic Settings in from the menu on the left.Make sure the SSID Broadcast item is enabled and then choose the appropriate channel.

STEP-4:

After saving your settings, scan wireless signal again.

Application introduction: Password can ensure your security of your wireless network. Follow these steps if you forgot about it.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note: The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

Click Wireless->Basic Settings on the navigation bar on the left.In this interface, you can see the password you ever setup and change it if necessary.

Application introduction: If you want to alter the SSID of the router, please follow the steps below.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

Click Wireless->Basic Settings on the navigation bar on the left. To change the SSID, you can input the new SSID to replace the original SSID. If you want to hide the SSID, choose “Disable” in the SSID broadcast bar. Then click “Apply” in the lower right corner.

Application introduction: IEEE 802.11ac is a wireless computer networking standard in the 802.11 family, developed in the IEEE Standards Association process, providing high-throughput wireless local area networks (WLANs) on the 5 GHz band.

Comparison of Wireless-AC and Wireless-N technologies:

1. Throughput

The 802.11n Wi-Fi connections max out at around 150Mbps with one antenna, 300Mbps with two and 450Mbps with three antennas. 802.11ac connections will be roughly three times faster - so that's 450Mbps, 900Mbps and 1.3Gbps respectively.

2. Channel Bandwidth

Mandatory 80 MHz channel bandwidth for stations, 160 MHz available optionally

40 MHz maximum in 802.11n

3. Modulation

256-QAM, rate 3/4 and 5/6, added as optional modes in 802.11ac

64-QAM, rate 5/6 maximum in 802.11n

4. MIMO spatial streams

Up to eight spatial streams in 802.11ac (vs. four in 802.11n)
