How to properly download upgrade firmware of extender？

2019-08-29

It is suitable for: All TOTOLINK extenders

Preparation

★ Before downloading files. please confirm the hardware version ofyour device and choose the corresponiding firmware version to uparade.

★ Wrong firrmware version may damage your device and no warrante.

Set up steps

STEP-1: Guide for Hardware Version

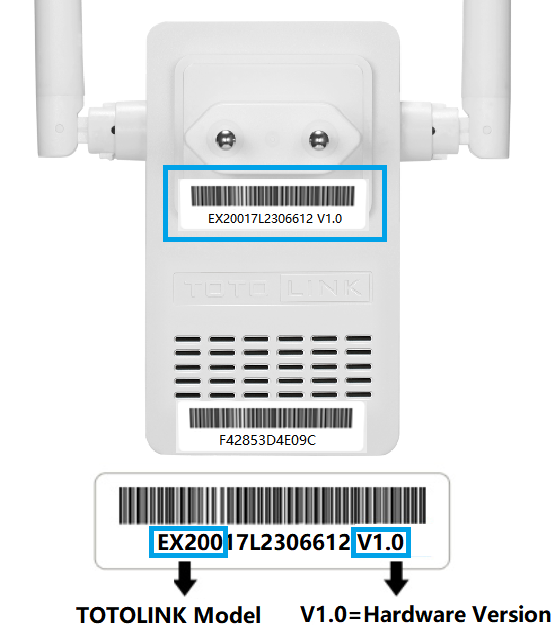

For most TOTOLINK extender, you can see two bar coded stickers at the front of the device, the character string started with Model No.(for example EX200) and ended with Hardware Version (for example V1.0) is the serial number of your device. See below:

STEP-2:

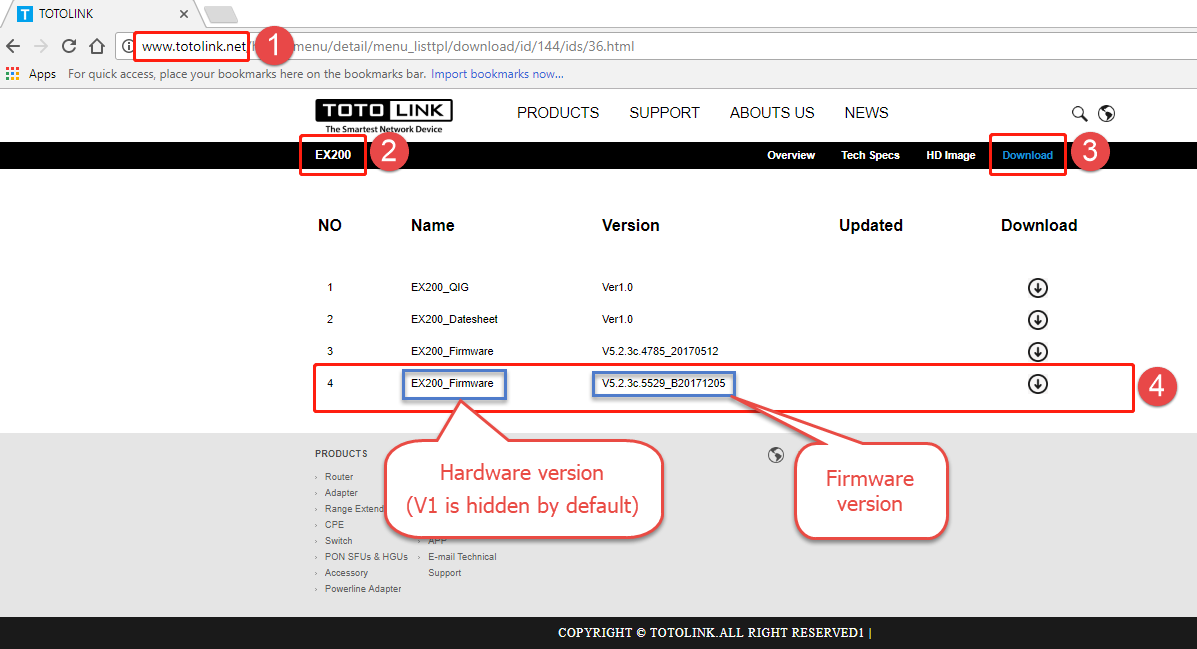

Open browser, enter www.totolink.net Download the required files.

For example, if your hardware yersion is V1.0 , please download V1 version.

Note: If the hardware version is V1, V1 will be hidden.

STEP-3:

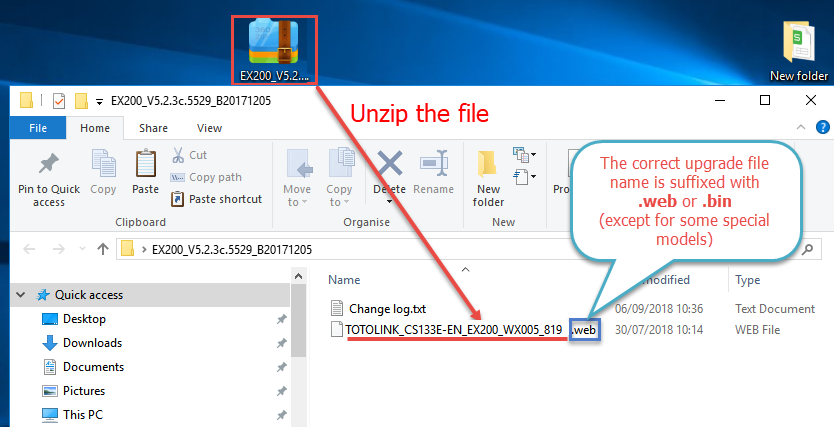

Unzip the file, correct upgrade file name is suffixed with ”web” or “bin” (except for some special models)

How to Find the Hardware Version on a TOTOLINK device

2018-11-08

It is suitable for: All TOTOLINK Model

Application introduction:

Some TOTOLINK products have more than one hardware version, using V1, V2, etc for separation, and generally, each hardware version corresponds to a specifically developed firmware.

If you want to upgrade your device to the latest firmware, you need to choose the correct firmware version for your device.

【 CAUTION 】

All content on this website is only applicable to models selling in overseas markets (outside China mainland, Taiwan and South Korea ), any model purchased from China mainland,Taiwan or South Korea caused damage by upgrading software on this website is excluded in after-sales service range

For most TOTOLINK products, you can see a bar coded sticker at the front of the device, there is a character string “VX.Y” (for example, V1.1), See below:

The number X is the Hardware Version of your device. If the string shows “V1.y”, it means the hardware version is V1.

How to install the driver for wireless adapter in XP system

2018-10-30

It is suitable for: All TOTOLINK adapters.

Application introduction: The procedures in different systems are quite similar, therefore, here takes the procedures in Windows XP for example.

STEP-1:

Insert the Resource CD into your CD-ROM drive, the window (Figure 1) will appear. Please choose the model No. (Ex. A1000UA) from the drop-down list and click Install.
