FAQFrequently Asked Questions

Application introduction: Solution about how to reset TOTOLINK products to factory defaults.

STEP-1:

Connect your computer to the router by cable, enter http://192.168.0.1

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Meanwhile you should fill in the vertification code .then Click Login.

Then click the Advanced Setup bottom

STEP-3: Login page reset

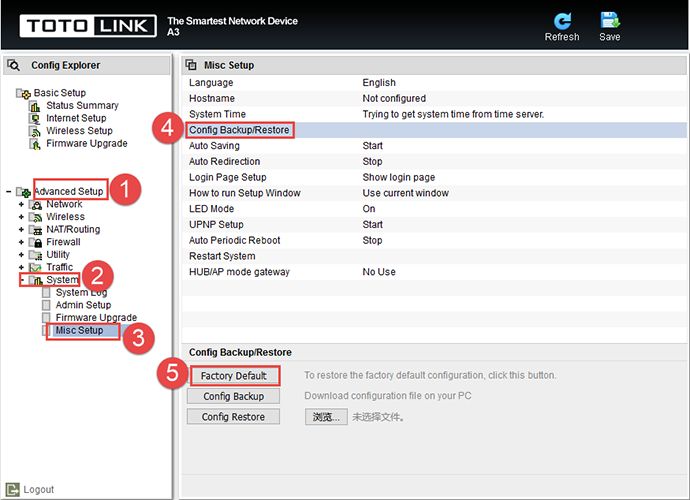

Please go to Advanced Setup->System->misc Setup, and check which you have selected.

Select Config BackupRestore, then Click Factory Default.

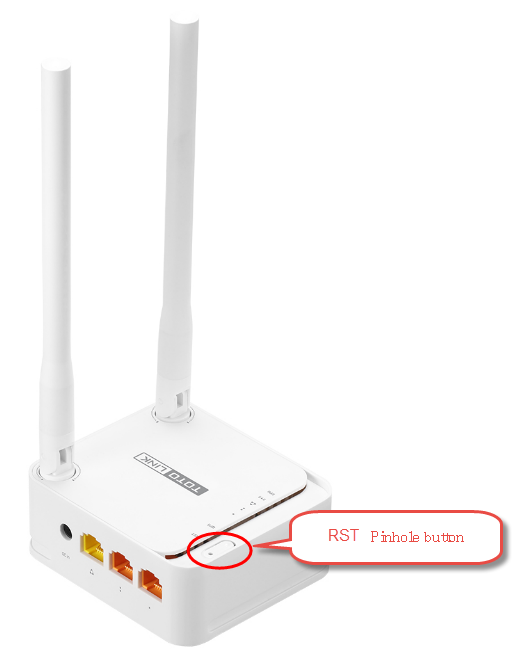

STEP-4: RST Button reset

Please make sure your router’s power is on regularly, then press the RST button for about 5~8s.

Loosen the button until your router’s LED lights all flashing,then you have reset your router to default settings.

Application introduction: Solution about how to configure QoS on TOTOLINK products.

STEP-1:

Connect your computer to the router by cable, enter http://192.168.0.1

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Meanwhile you should fill in the vertification code .then Click Login.

Then click the Advance Setup bottom

STEP-3:

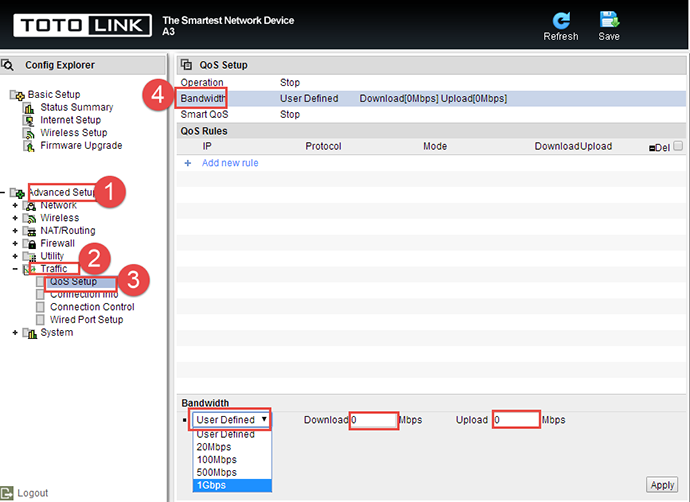

Please go to Advance Setup ->Traffic->Qos Setup and click Bandwidth page,and check which you have selected.

Select Bandwidth Speed, then Input Download Speed and Upload Speed, then Click Apply.

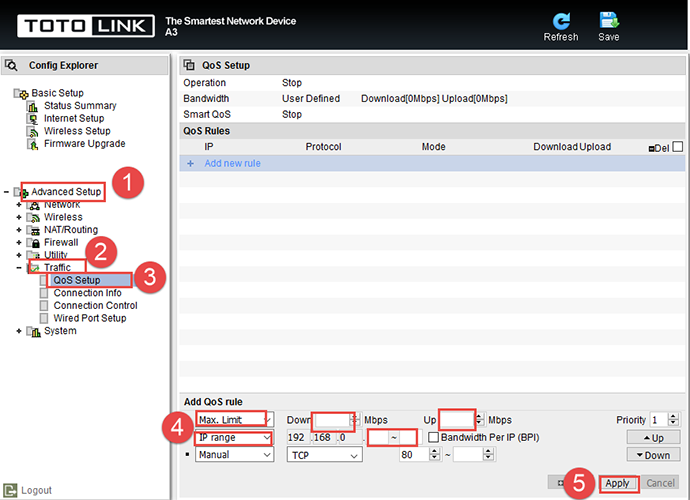

Or you can fill in IP Address and Down and Up Speed you want to restrain,  then Click Apply.

Application introduction: Solution about how to configure multiple SSID for TOTOLINK products.

Solution about how to configure Internet mode with PPPoE ,Static IP and DHCP for TOTOLINK products

STEP-1:

Connect your computer to the router by cable, enter http://192.168.0.1

STEP-2.1:

User Name and Password are required, by default both are admin in lowercase letter. Meanwhile you should fill in the vertification code .then Click Login.

STEP-2.2:

Then click the Advance setup bottom

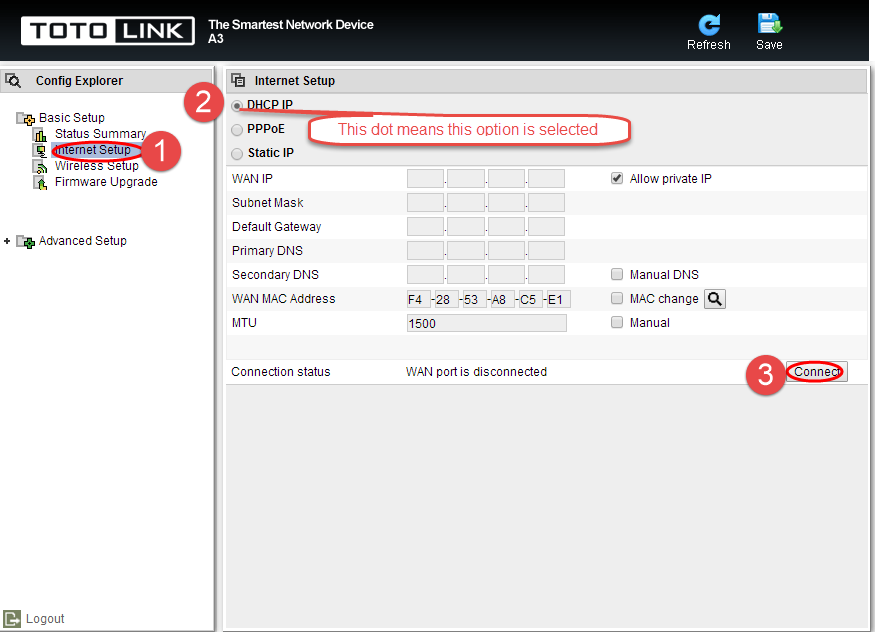

STEP-3.1.1: Easy Setup DHCP setting

Please go to Inernet Setup page, and check which you have selected. Selecting DHCP IP as Connection Type .Then Click Apply.

STEP-3.1.2: Advanced Setup DHCP setting

Please go to Advance Setup ->Network ->Internet  Setup page, and check which you have selected .Then return to STEP-3.1.1.

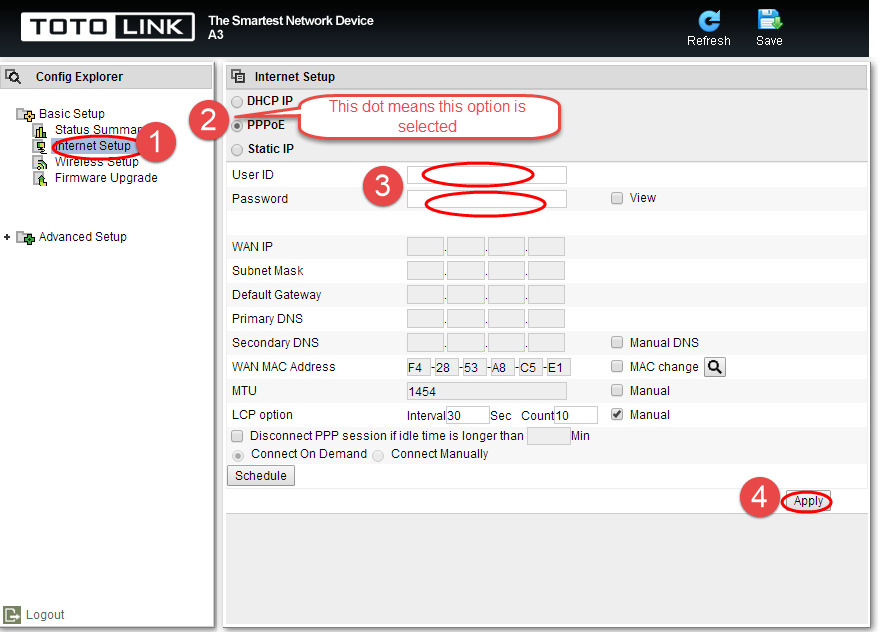

STEP-3.2.1: Easy Setup PPPOE setting

Please go to Inernet Setup page, and check which you have selected. Selecting PPPoE as Connection Type .Then Click Apply.

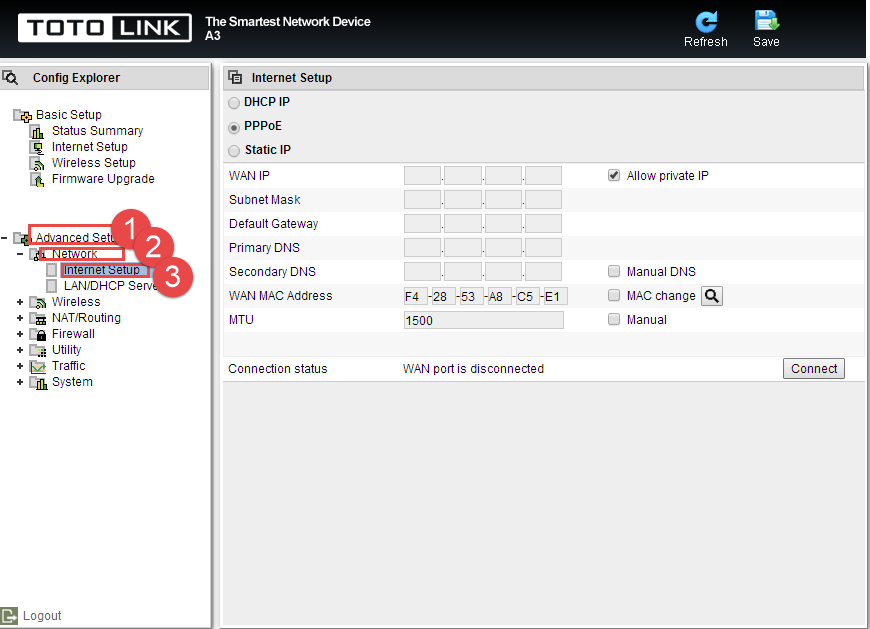

STEP-3.2.2: Advanced Setup PPPOE setting

Please go to Advance Setup ->Network ->Internet Setup page, and check which you have selected .Then return to STEP-3.2.1.

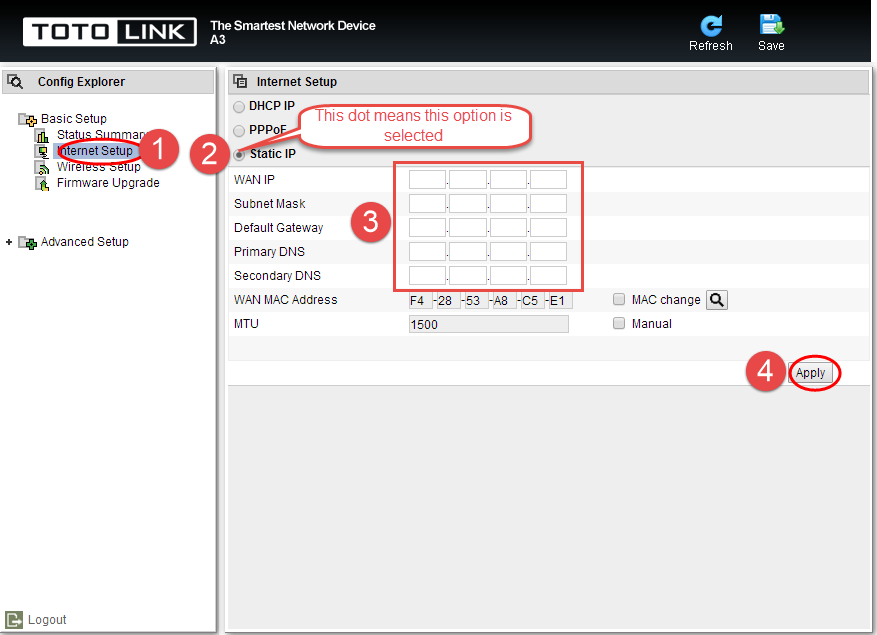

STEP-3.3.1: Easy Setup Static IP setting

Please go to Inernet Setup page, and check which you have selected. Selecting Static IP as Connection Type .Then Click Apply.

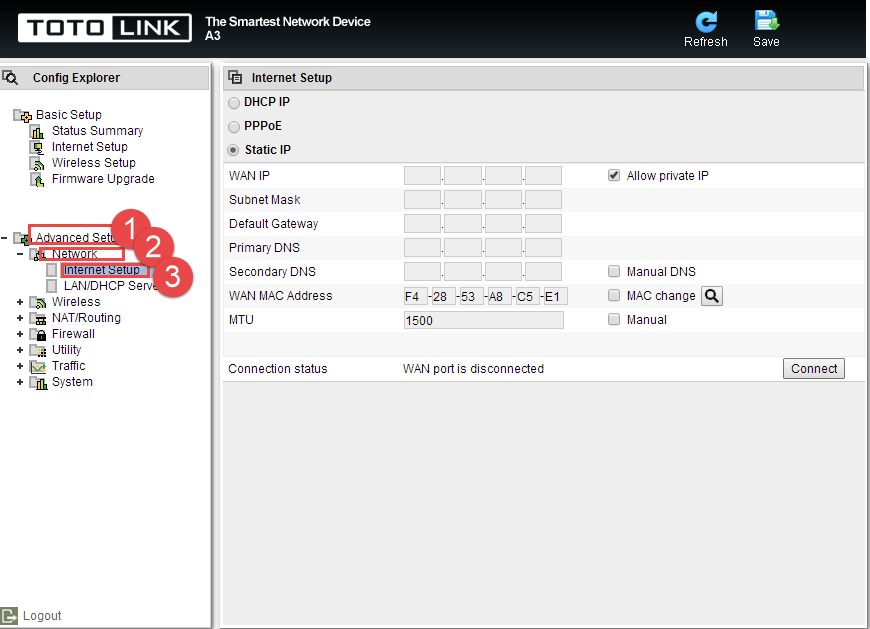

STEP-3.3.2: Advanced Setup Static IP setting

Please go to Advance Setup ->Network ->Internet Setup page, and check which you have selected .Then return to STEP-3.3.1.

Application introduction: Solution about how to configure multiple SSID for TOTOLINK products

STEP-1:

Connect your computer to the router by cable, enter http://192.168.0.1

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Meanwhile you should fill in the vertification code .then Click Login.

STEP-3:

Then click the Advance setup bottom

STEP-4:

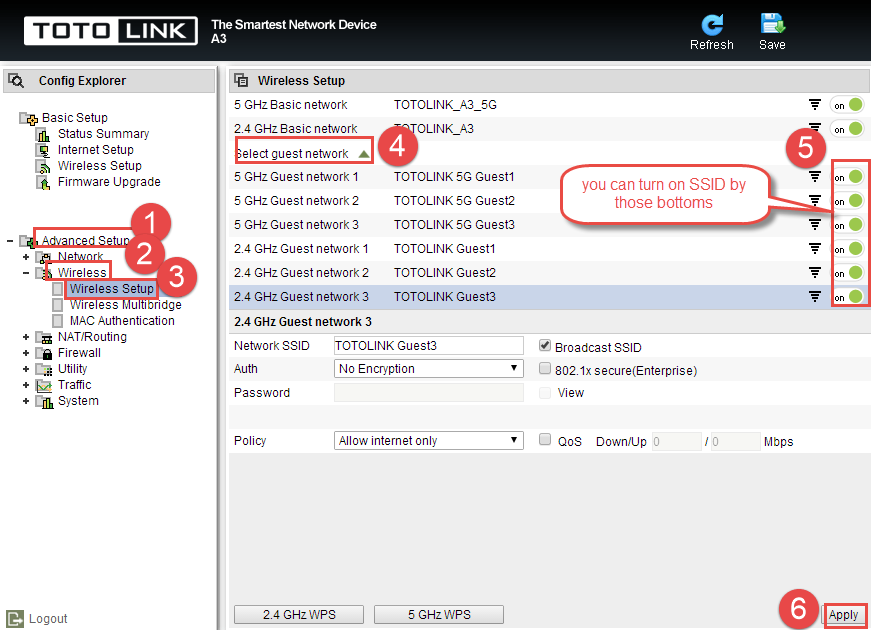

Please go to Advanced Setup->Wireless->Wireless Setup page,and check which you have selected.

Click Select guest network and SSID buttons,then Click Apply.

Application introduction: Solution about how to configure Wireless MAC Filtering on TOTOLINK Router.

STEP-1:

Connect your computer to the router by cable, enter http://192.168.0.1

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Meanwhile you should fill in the vertification code .then Click Login.

STEP-3:

Then click the Advance setup bottom.

STEP-4:

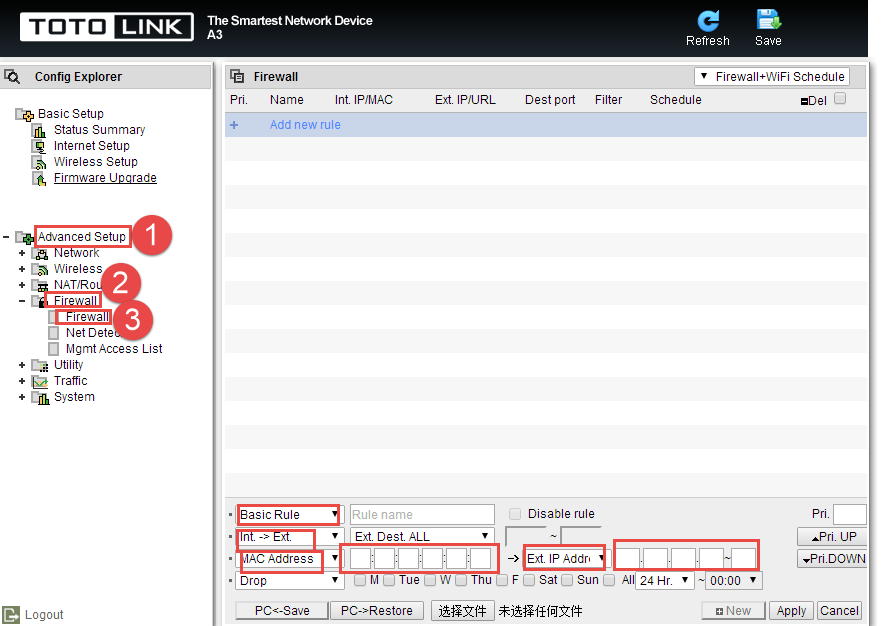

Please go to Advance Setup ->Firewall->Firewall page, and check which you have selected.

Select Basic Rule；Int->Ext；MAC Address ；Ext IP Address； then Input address about MAC Address and Ext IP Address；then Click Apply.

Application introduction: Solution about how to configure IP Address and Port Filtering on TOTOLINK

STEP-1:

Connect your computer to the router by cable, enter http://192.168.0.1.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Meanwhile you should fill in the vertification code .then Click Login.

STEP-3:

Then click the Advance setup bottom.

STEP-4:

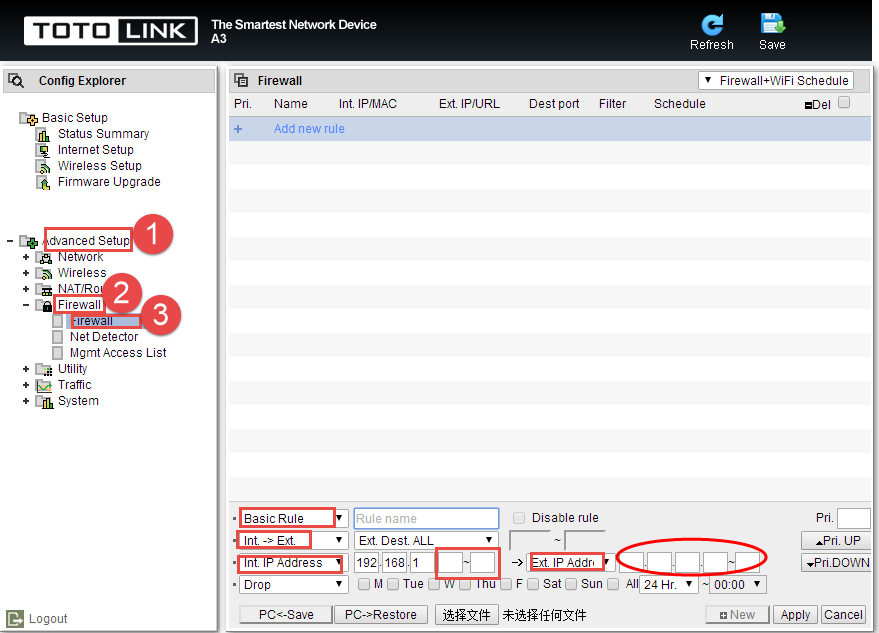

Please go to Advance Setup ->Firewall->Firewall page, and check which you have selected.

Select Basic Rule ; Int->Ext ; Int IP Address； Ext IP Address； then Input address about Int IP Address and Ext IP Address whice you want to restrain；then Click Apply.

Application introduction: Solution about how to change the wireless name and password on the TOTOLINK products

STEP-1:

Connect your computer to the router by cable, enter http://192.168.0.1

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

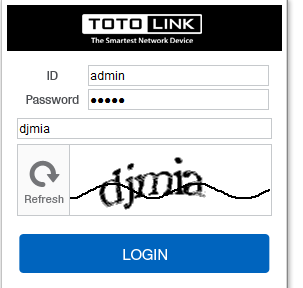

User Name and Password are required, by default both are admin in lowercase letter. Meanwhile you should fill in the vertification code .then Click Login.

STEP-3:

Then click the Advance setup bottom

STEP-4:

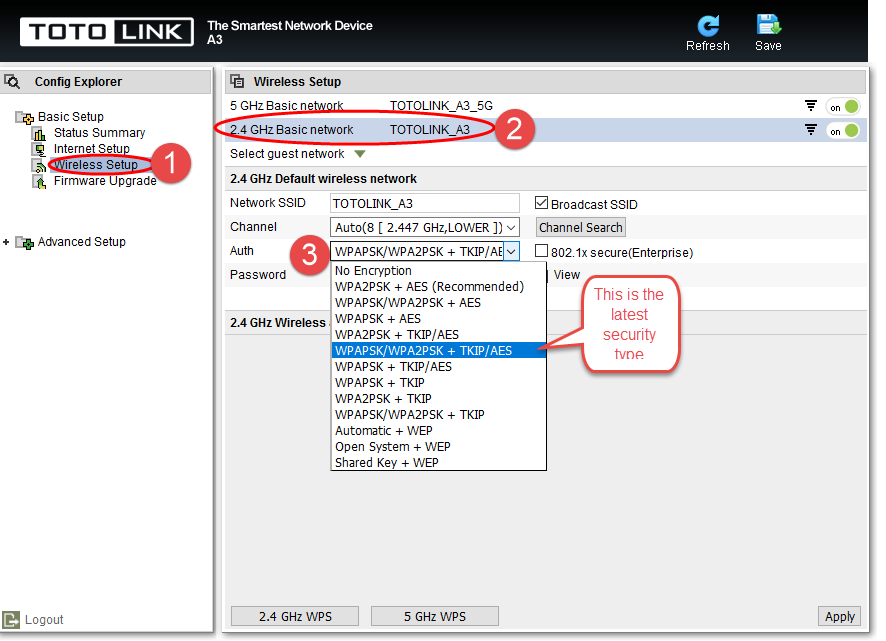

Please go to Wireless page, and check which you have selected. then Click 2.4GHz Basic network.

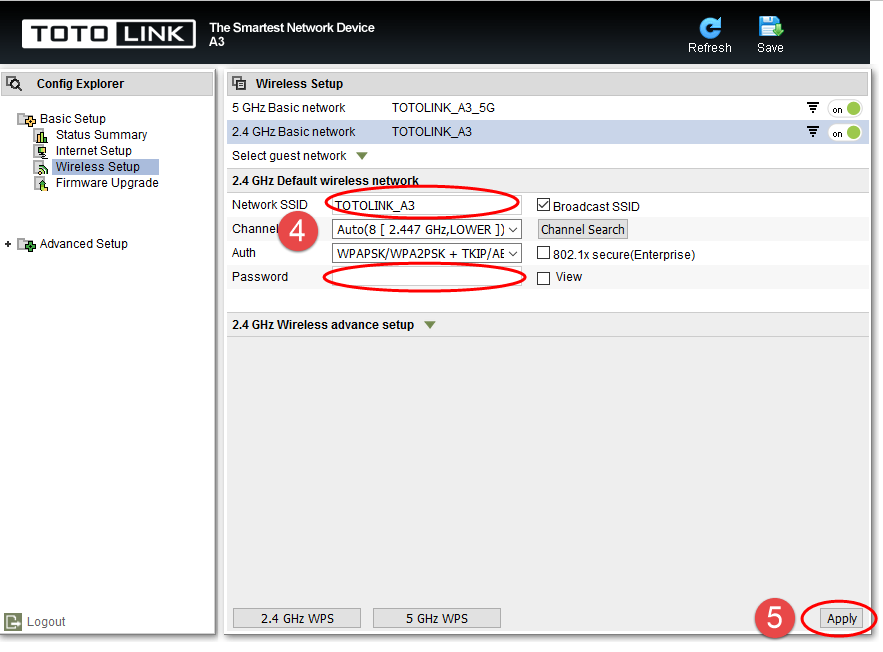

Select WPAPSK/WPA2PSK+TKIP/AES, then Input your own Wireless Network Name and Password, then Click Apply.

STEP-5:

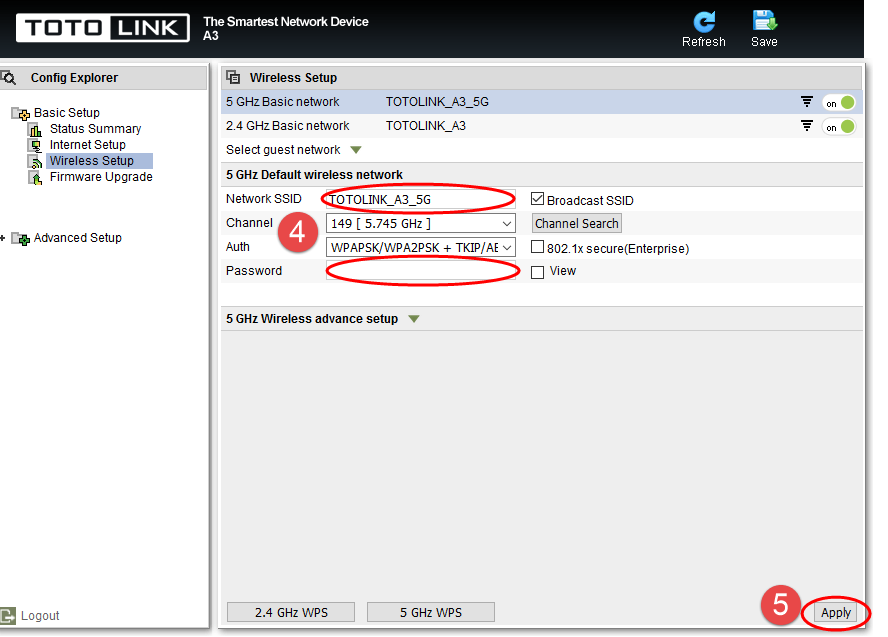

Please go to Wireless page, and check which you have selected.then Click 5GHz Basic network.

Select WPAPSK/WPA2PSK+TKIP/AES, then Input your own Wireless Network Name and Password, then Click Apply.

Application introduction: TOTOLINK A5004NS provides a USB 3.0 port that supports USB Tethering function, which allows users to access the Internet by Smartphone when the router’s WAN port is disabled.

STEP-1:

Log into the Web page, choose Advanced Setup ->USB Storage ->Service Setup. Click USB Tethering.

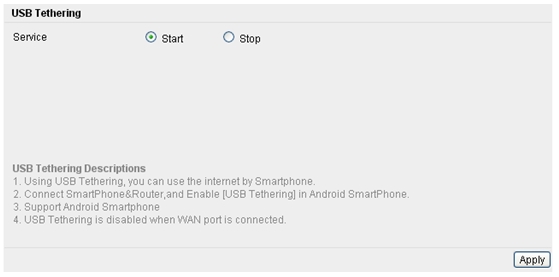

STEP-2:

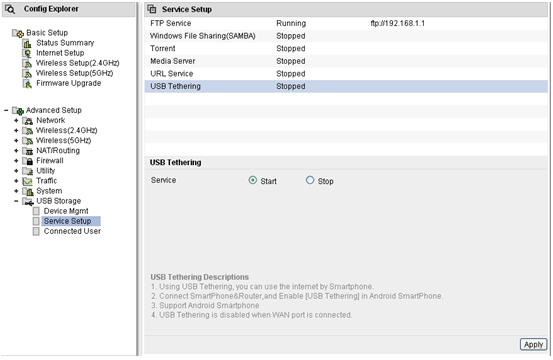

The USB Tethering page will show up below and please choose Start to enable the service.

STEP-3:

Click Apply. Then connect your Smartphone to the router by WiFi. Enable USB Tethering function on your Smartphone. You can share the phone’s Internet with other devices.

Application introduction: TOTOLINK Routers with one USB port supports URL Service to make file sharing easier.

STEP-1:

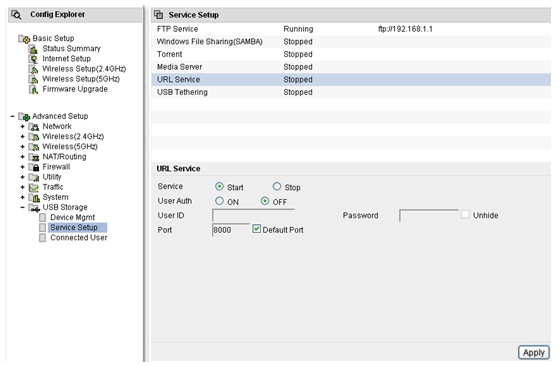

Log into the Web page, choose Advanced Setup ->USB Storage ->Service Setup. Click URL Service.

STEP-2:

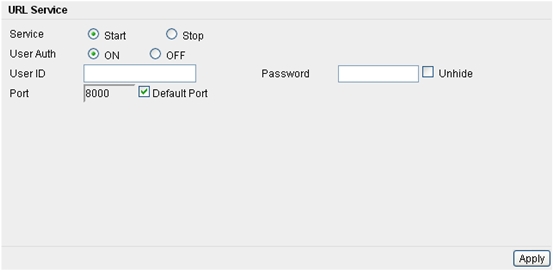

The URL Service page will show up below and please choose Start to enable the service.

User Auth: enable or disable login authentication.

User ID & Password: If you enabled login authentication, please provide the User ID & Password for verifying.

Port: enter the port number to use, the default is 8000.

STEP-3:

Then connect to the router by cable or WiFi.

STEP-4:

Type in the website (URL to connect) to the address bar of the web browser.

STEP-5:

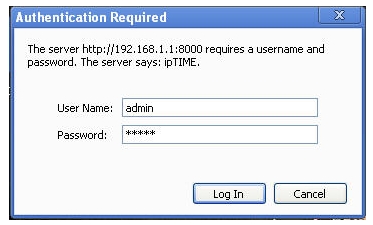

Enter the User name and password that you have set before, and then click Log In.

STEP-6:

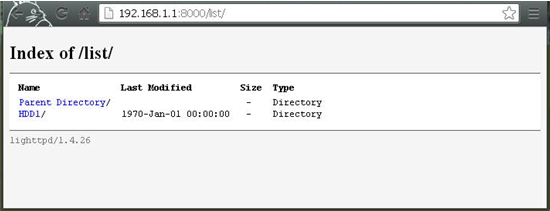

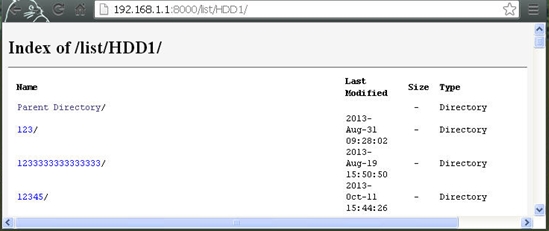

The list interface will appear and double click the file name of your USB device (e.g.HDD1).

STEP-7:

Now you can visit and download the data in the USB storage.

Application introduction: The A5004NS provides a USB 3.0 port that supports Media Server to make Media file sharing easier.

STEP-1:

Log into the Web page, choose Advanced Setup ->USB Storage ->Service Setup. Click Media Server.

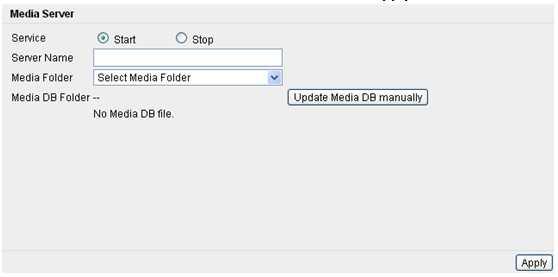

STEP-2:

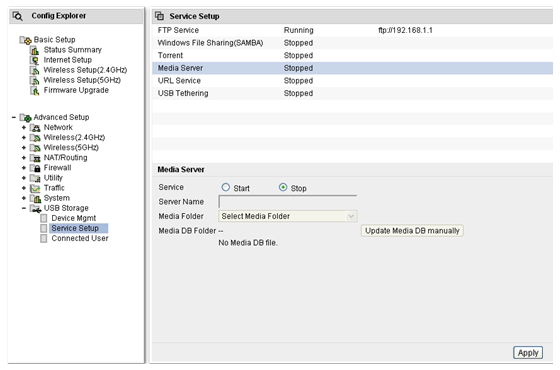

The Media Server page will show up below and please choose Start to enable the service. Then enter the Server Name, Media folder, click Apply.
